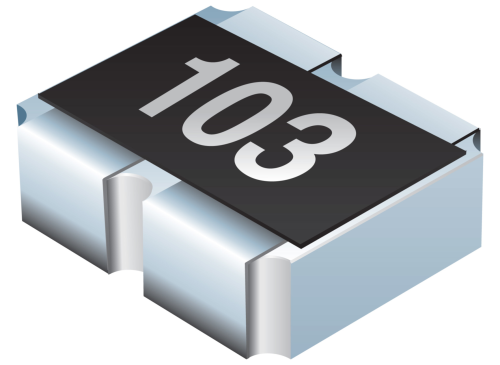

CAY16-22R0F4LF - Bourns
Res Thick Film Array 22 Ohm 1% 0.25W(1/4W) ±200ppm/C ISOL 8-Pin 1206(4 X 0603) Convex SMD T/R
Technical Details
| Case/Package | 1206 |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| China RoHS | Non-Compliant |
| Circuit Type | Isolated |
| Contact Plating | Tin |
| Depth | 1.6mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 500µm |
| Introduction Date | 2003-04-07 |
| Lead Pitch | 800µm |
| Length | 3.2mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Circuits | 4 |
| Number of Elements | 1 |
| Number of Pins | 8 |
| Number of Resistors | 4 |
| Number of Terminals | 8 |
| Power Dissipation | 250mW |
| Power Per Element | 62.5mW |
| REACH SVHC | Yes |
| Resistance | 22Ω |
| RoHS | Compliant |
| Schedule B | 8533210025, 8533210025|8533210025, 8533210025|8533210025|8533210025, 8533210025|8533210025|8533210025|8533210025 |
| Temperature Coefficient | 200ppm/°C |
| Terminal Pitch | 800µm |
| Termination | Convex |
| Tolerance | 1% |
| Voltage Rating (DC) | 50V |
| Width | 1.6mm |
| Working Voltage | 50V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
Images

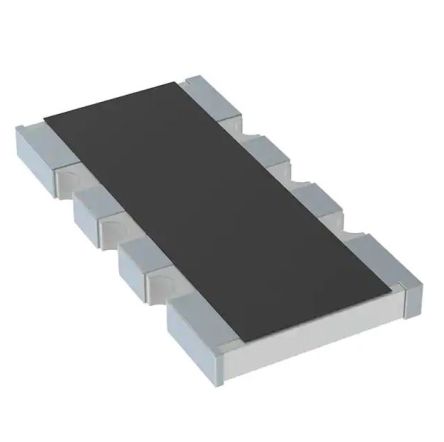

RS
