CDSOD323-T03 - Bourns
ESD protection diodes / TVS diodes; BOURNS; CDSOD323-T03; 19 V; 20 A; 3.3 V; 4 V
Technical Details
| Breakdown Voltage | 4V |
| Capacitance | 3pF |
| Clamping Voltage | 10.9V |
| Composition | Zener |
| Contact Plating | Tin |
| Country of Origin | Philippines, Uk |
| Depth | 1.45mm |
| Direction | Unidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Height | 1.14mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2005-10-06 |
| Leakage Current | 5µA |
| Length | 1.9mm |
| Lifecycle Status | Production |
| Max Junction Temperature (Tj) | 150°C |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 350W |
| Max Surge Current | 20A |
| Min Breakdown Voltage | 4V |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Number of Unidirectional Channels | 1 |
| Peak Pulse Current | 20A |
| Peak Pulse Power | 350W |
| Peak Reverse Current | 125µA |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Breakdown Voltage | 4V |
| Reverse Standoff Voltage | 3.3V |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Test Current | 1mA |
| Width | 1.45mm |
| Working Voltage | 3.3V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

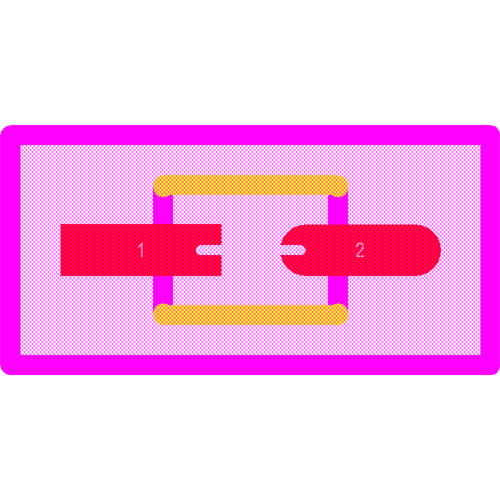

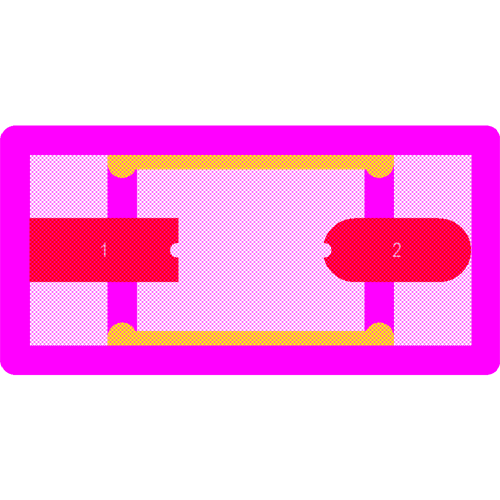

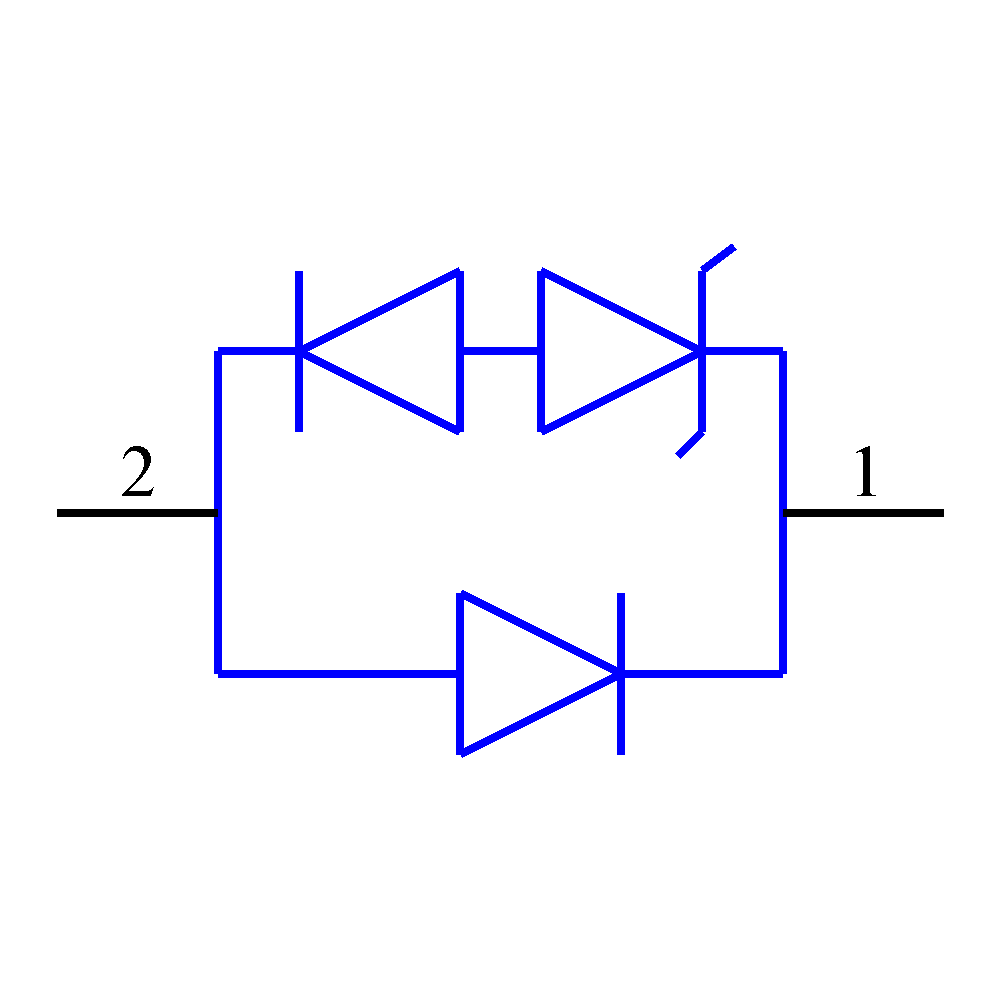

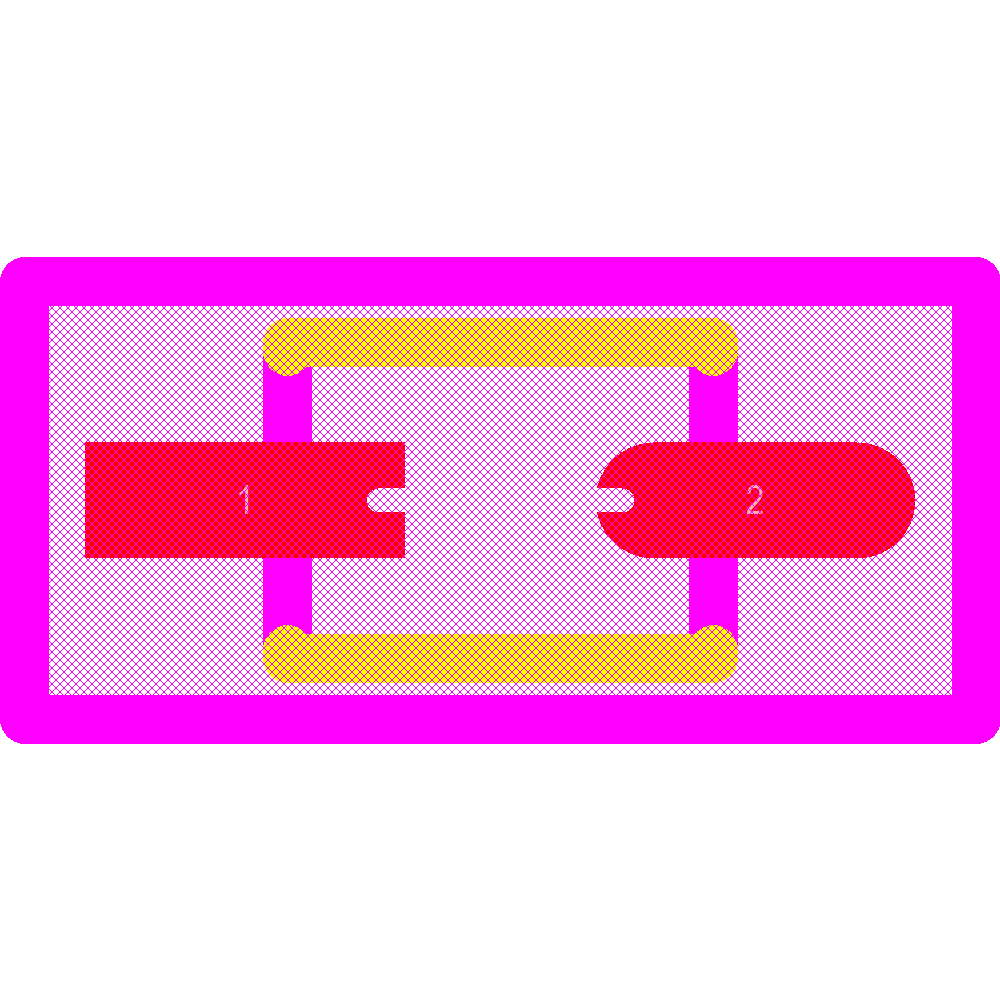

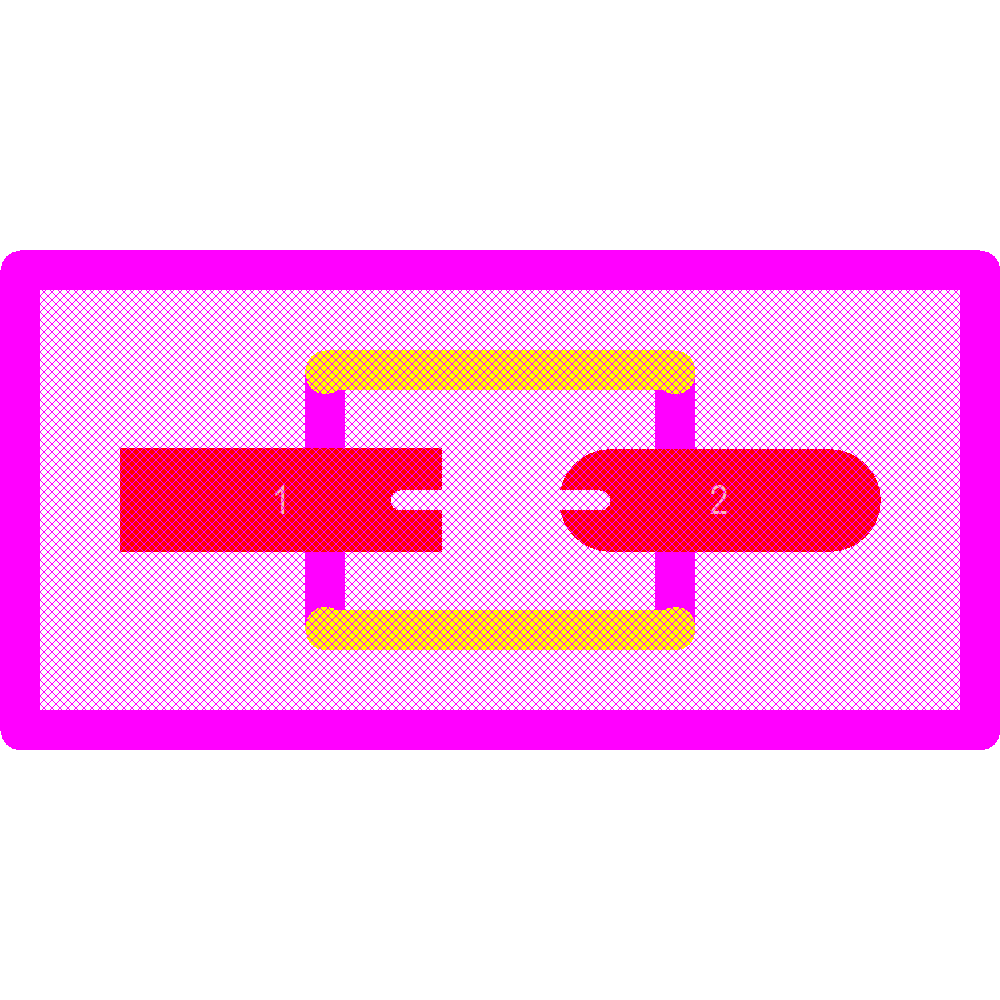

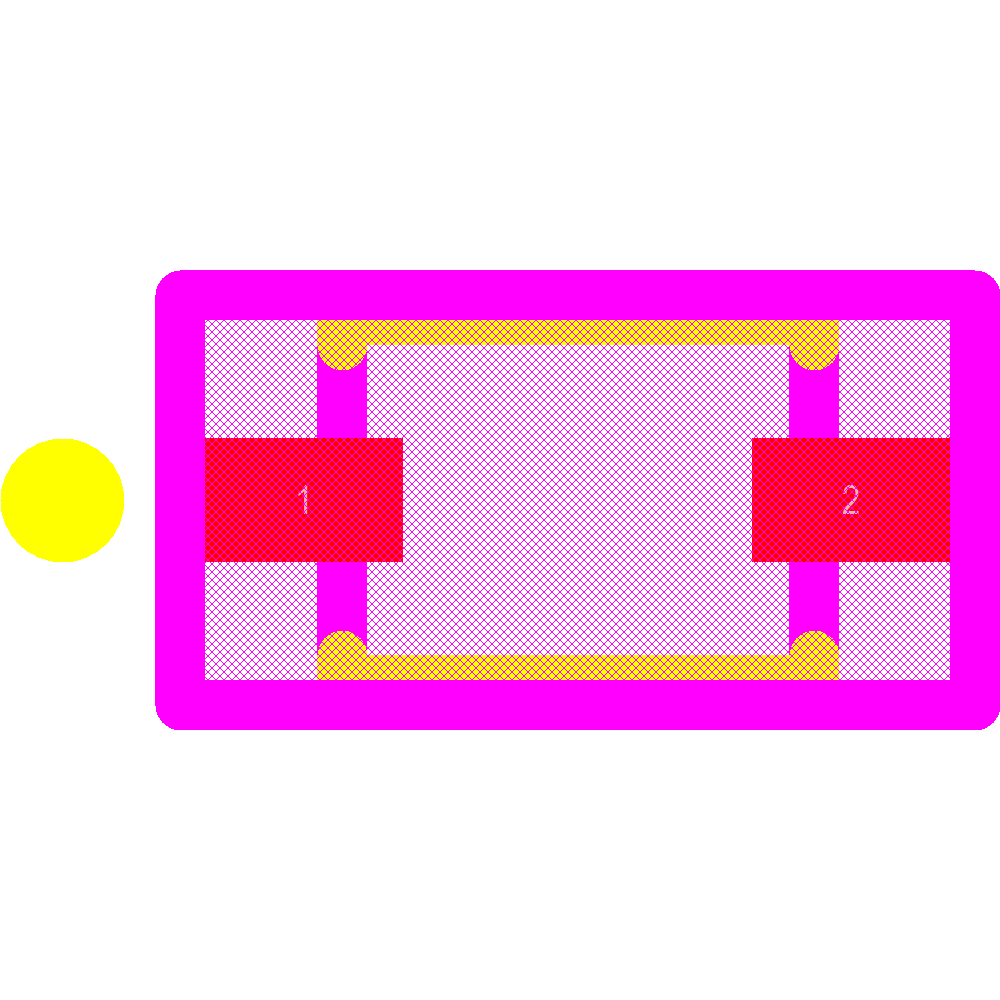

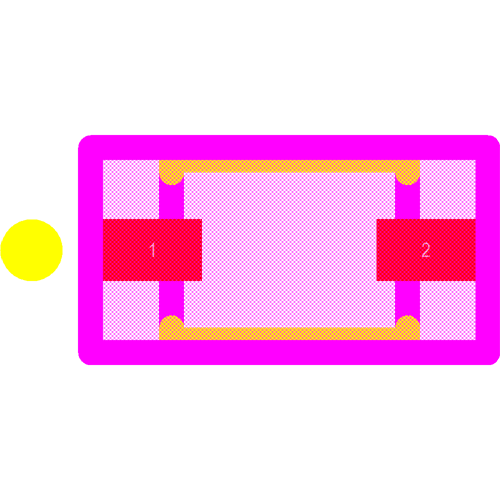

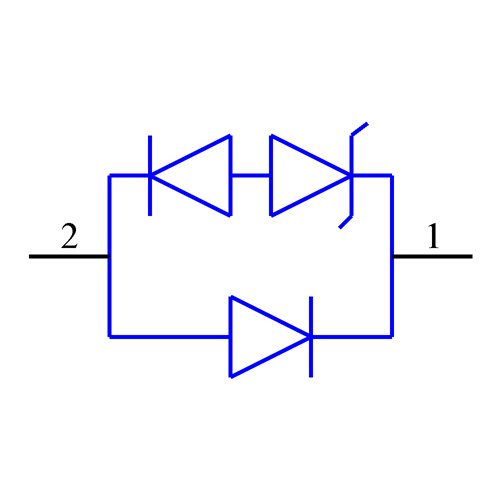

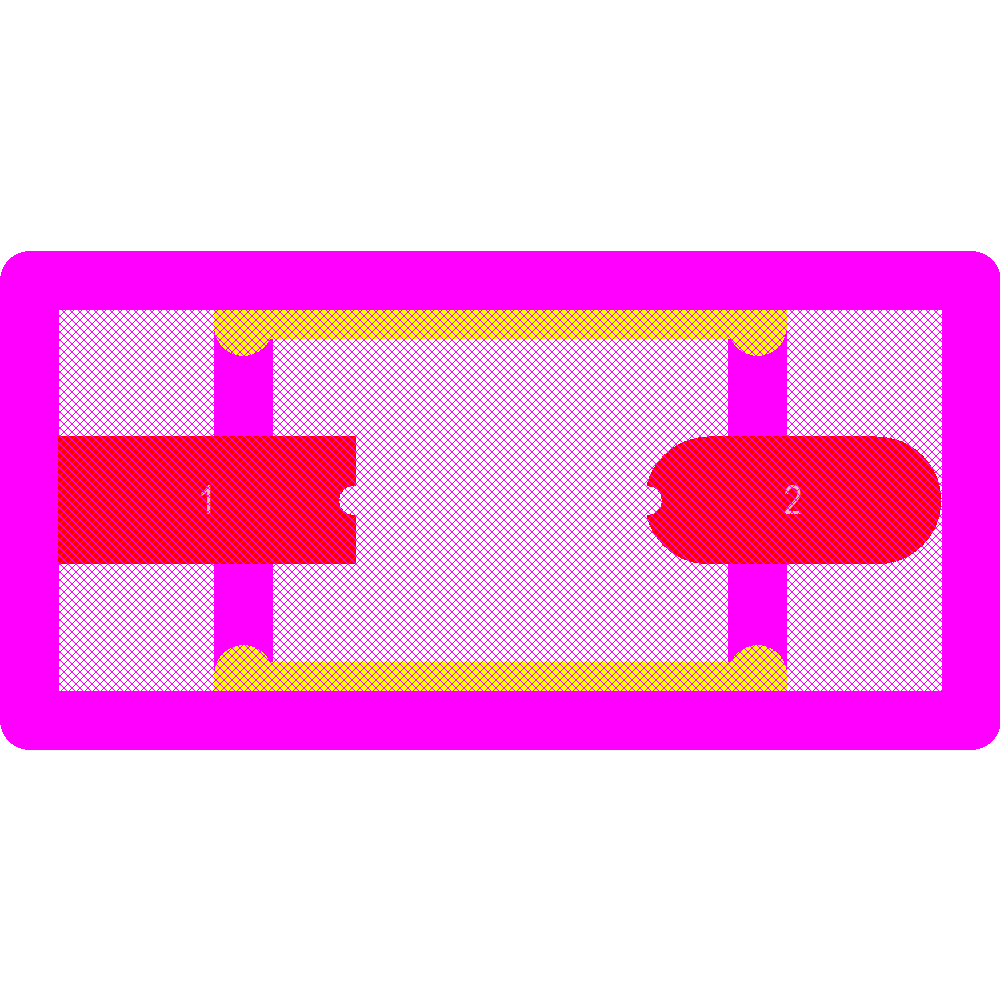

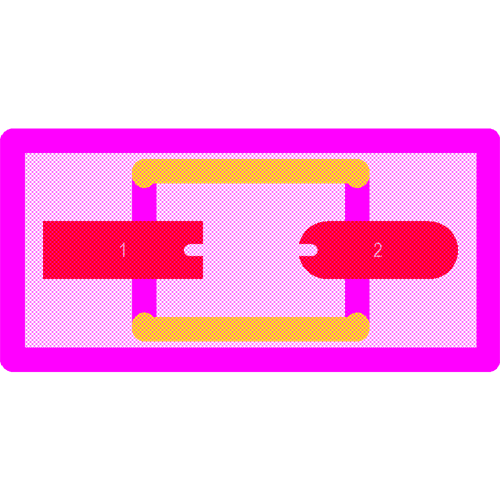

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Diodes Inc. | Obsolete | ||
| Bourns | Obsolete | ||
| Protek Devices | Obsolete | ||
| Protek Devices | Production | ||
| Protek Devices | Obsolete | ||
| Protek Devices | Production | ||
| Protek Devices | Production | ||
| Protek Devices | Production | ||
| Protek Devices | Production | ||
| Protek Devices | Production |
