Bourns - CDSOD323-T05

CDSOD323-T05 - Bourns

ESD protection diodes / TVS diodes; BOURNS; CDSOD323-T05; 9.8 V; 17 A; 5 V; 6 V

 Datasheets

Technical Details

Breakdown Voltage 6V
Capacitance 3pF
Clamping Voltage 13.5V
Composition Zener
Contact Plating Tin
Country of Origin Philippines, Uk
Depth 1.45mm
Direction Unidirectional
Export Control Classification Number (ECCN) Code EAR99
Element Configuration Single
Height 1.14mm
Harmonized Tariff Schedule (HTS) Code 8541.10.00.50
Introduction Date 2005-10-06
Leakage Current 5µA
Length 1.9mm
Lifecycle Status Production
Max Junction Temperature (Tj) 150°C
Max Operating Temperature 150°C
Max Power Dissipation 350W
Max Surge Current 17A
Min Breakdown Voltage 6V
Min Operating Temperature -55°C
Mount Surface Mount
Number of Channels 1
Number of Elements 1
Number of Pins 2
Number of Terminals 2
Number of Unidirectional Channels 1
Peak Pulse Current 17A
Peak Pulse Power 350W
Peak Reverse Current 1µA
Polarity Unidirectional
Power Line Protection No
Radiation Hardening No
REACH SVHC Yes
Reverse Breakdown Voltage 6V
Reverse Standoff Voltage 5V
RoHS Compliant
Schedule B 8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|85
Termination SMD/SMT
Test Current 1mA
Width 1.45mm
Working Voltage 5V

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : Yes

Images

Bourns CDSOD323-T05 | Onlinecomponents.com

Onlinecomponents.com

Datasheets

 Farnell
 Farnell
 Chip One Stop

Lifecycle Status Indicator

   Production

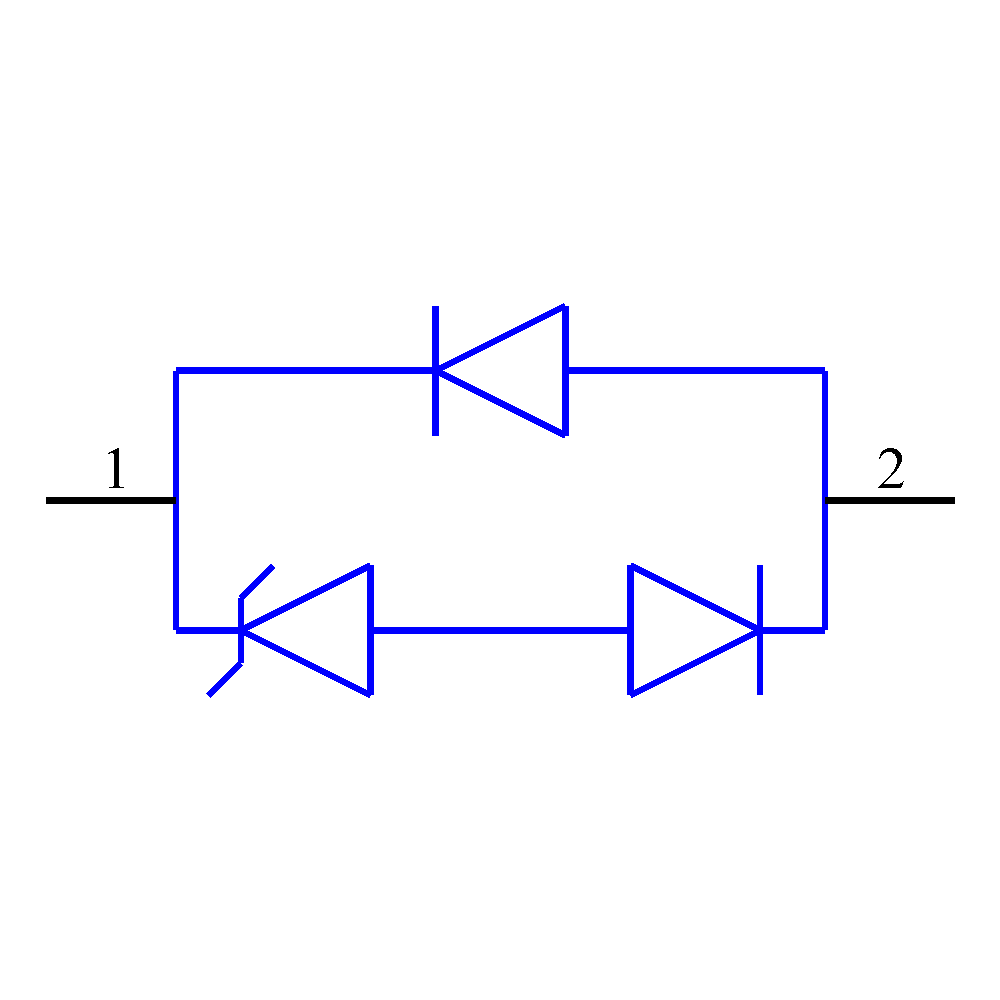

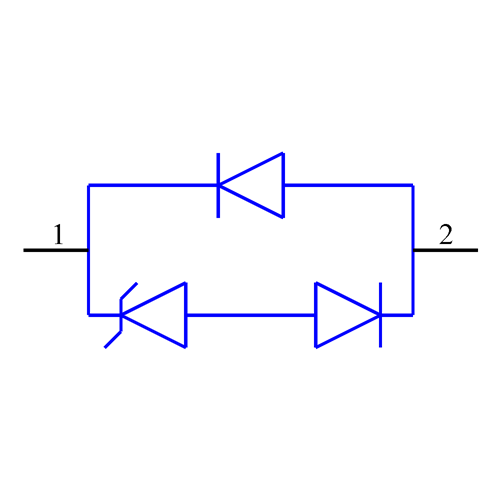

Symbol

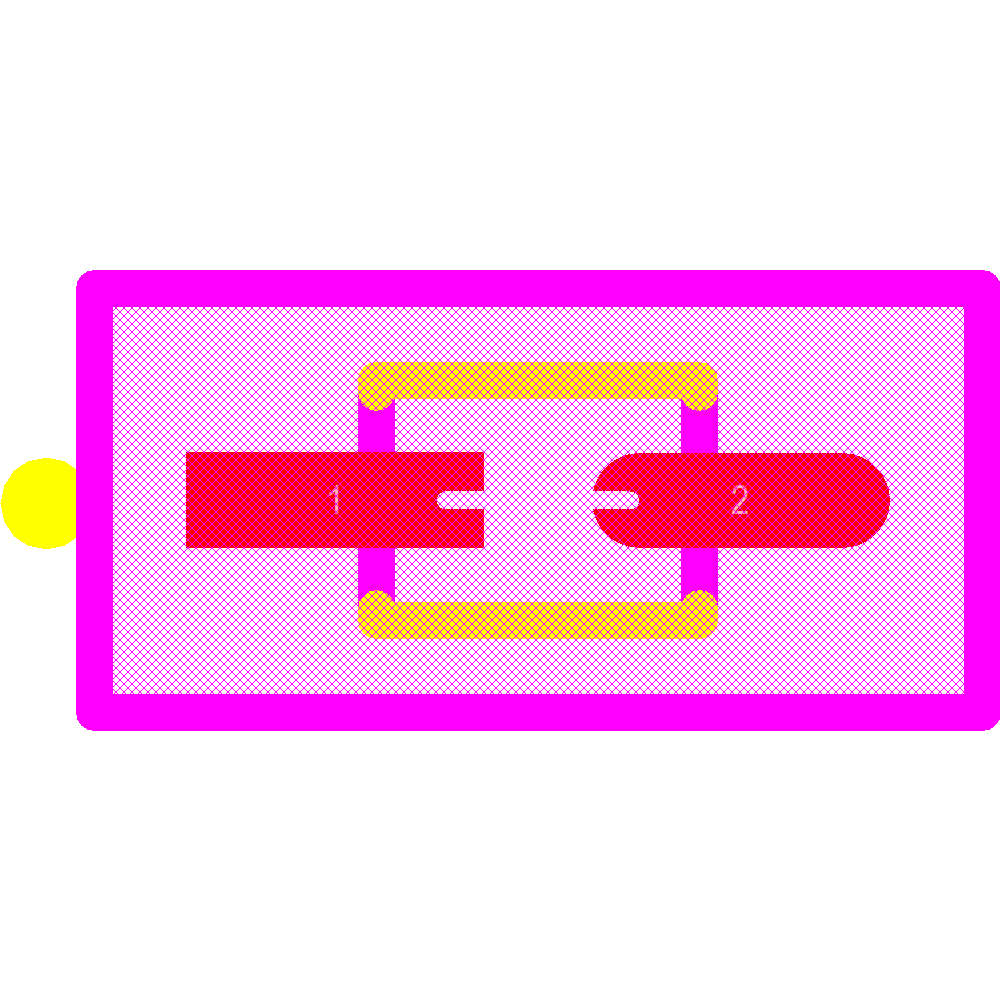

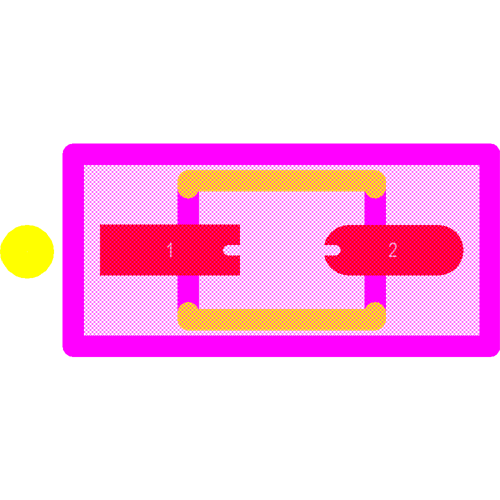

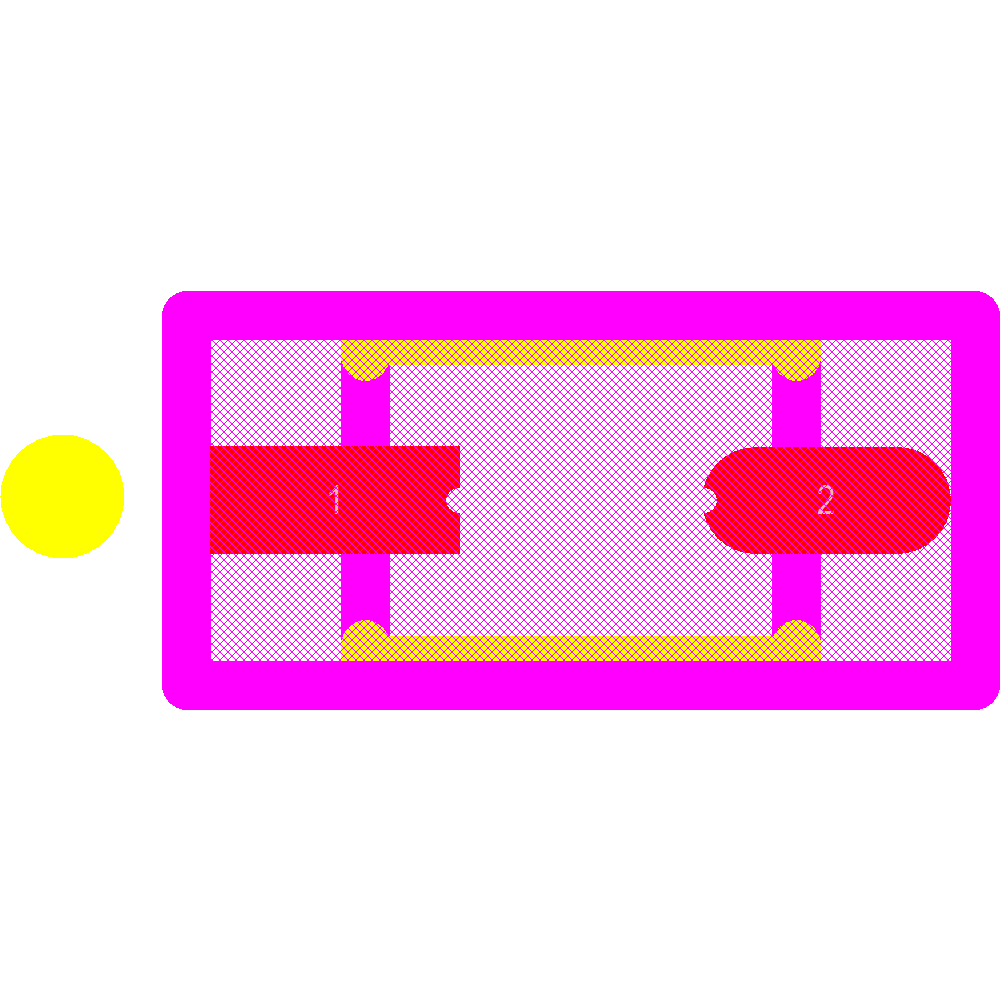

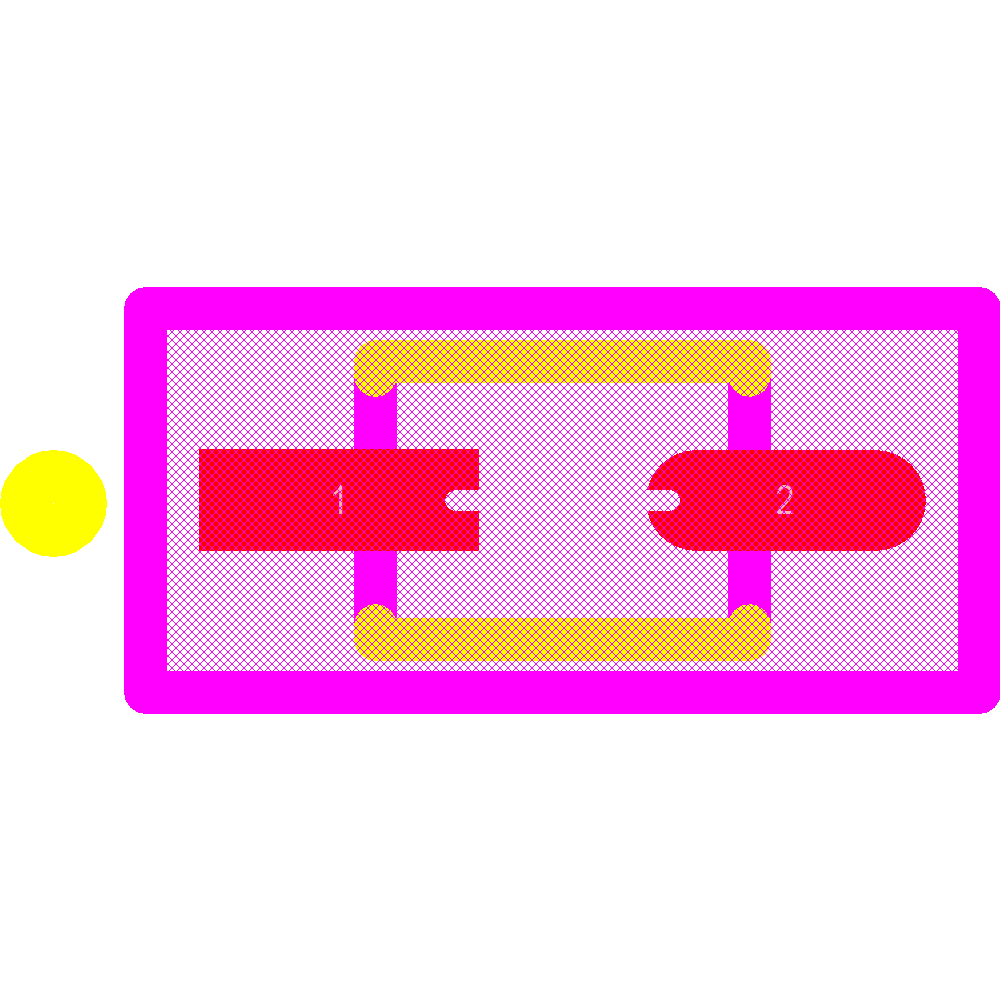

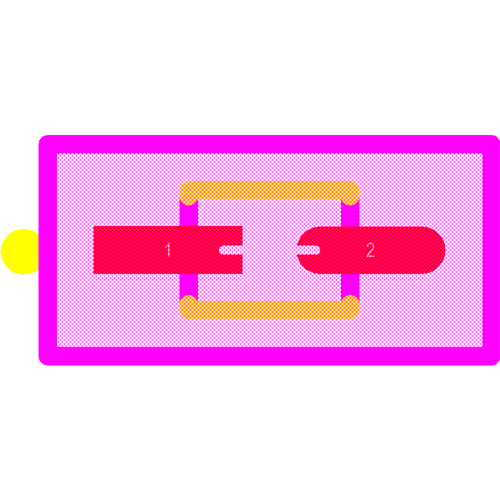

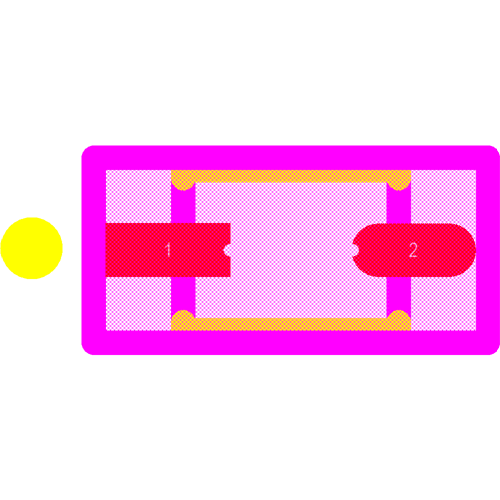

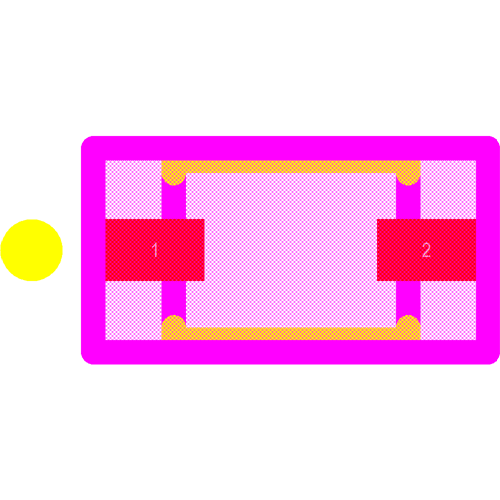

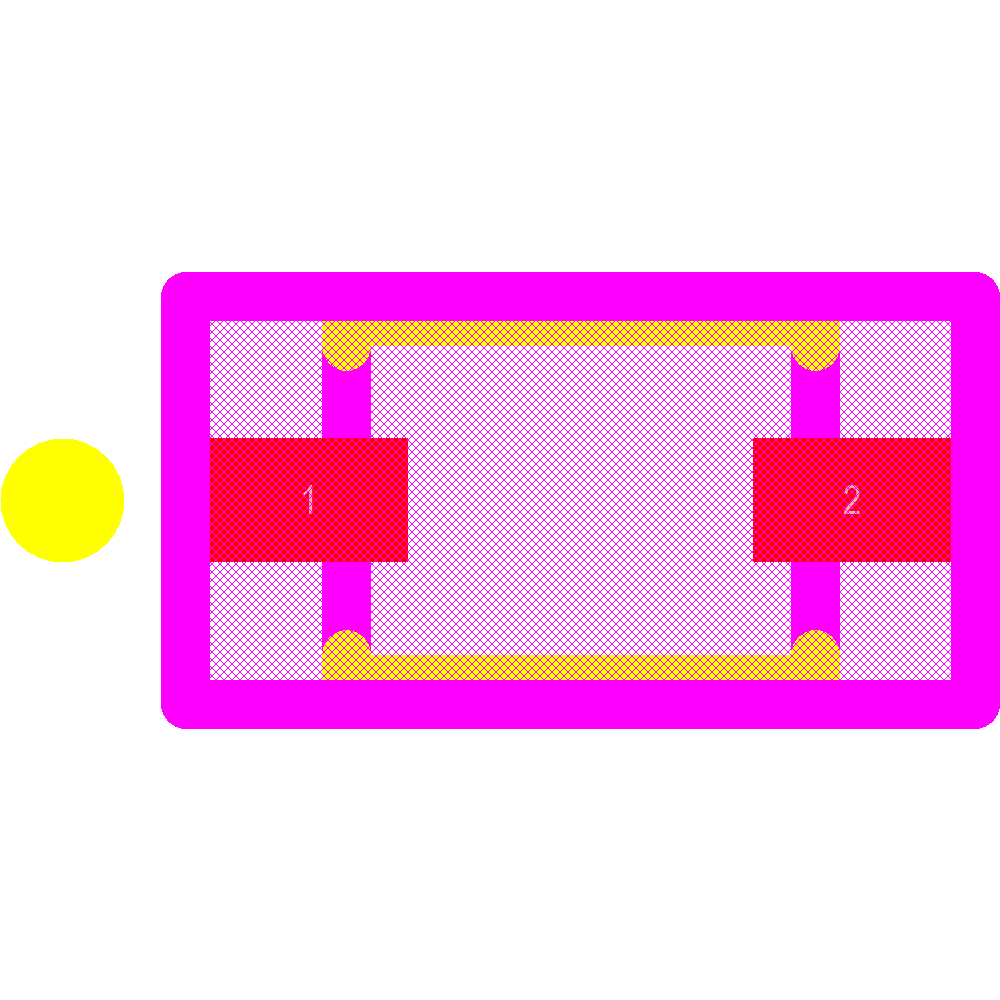

Footprint
