Circuit Protection  >  TVS Diodes

Bourns - CDSOD323-T05C

CDSOD323-T05C - Bourns

ESD protection diodes / TVS diodes; BOURNS; CDSOD323-T05C; 18.3 V; 17 A; 5 V; 6 V - 6 V

 Datasheets

Technical Details

Breakdown Voltage 6V
Capacitance 3pF
China RoHS Compliant
Clamping Voltage 14.5V
Composition Zener
Contact Plating Tin
Country of Origin Philippines, Uk
Depth 1.45mm
Direction Bidirectional
Export Control Classification Number (ECCN) Code EAR99
Element Configuration Single
ESD Protection Yes
Height 1.14mm
Harmonized Tariff Schedule (HTS) Code 8541.10.00.50
Introduction Date 2005-10-06
Leakage Current 5µA
Length 1.9mm
Lifecycle Status Production
Max Breakdown Voltage 6V
Max Junction Temperature (Tj) 150°C
Max Operating Temperature 150°C
Max Power Dissipation 350W
Max Reverse Leakage Current 5µA
Max Surge Current 17A
Min Breakdown Voltage 6V
Min Operating Temperature -55°C
Mount Surface Mount
Number of Bidirectional Channels 1
Number of Channels 1
Number of Elements 2
Number of Pins 2
Number of Terminals 2
Packaging Cut Tape
Peak Pulse Current 17A
Peak Pulse Power 350W
Peak Reverse Current 1µA
Polarity Bidirectional
Power Line Protection No
Radiation Hardening No
REACH SVHC Yes
Reverse Breakdown Voltage 6V
Reverse Standoff Voltage 5V
RoHS Compliant
Schedule B 8536300000, 8536300000|8536300000, 8536300000|8536300000|8536300000, 8536300000|8536300000|8536300000|8536300000
Termination SMD/SMT
Test Current 1mA
Width 1.45mm
Working Voltage 5V

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : Yes

Images

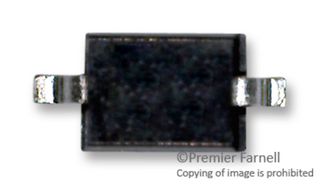

Bourns CDSOD323-T05C | Farnell

Farnell

Datasheets

 RS
 RS
 Farnell

Lifecycle Status Indicator

   Production

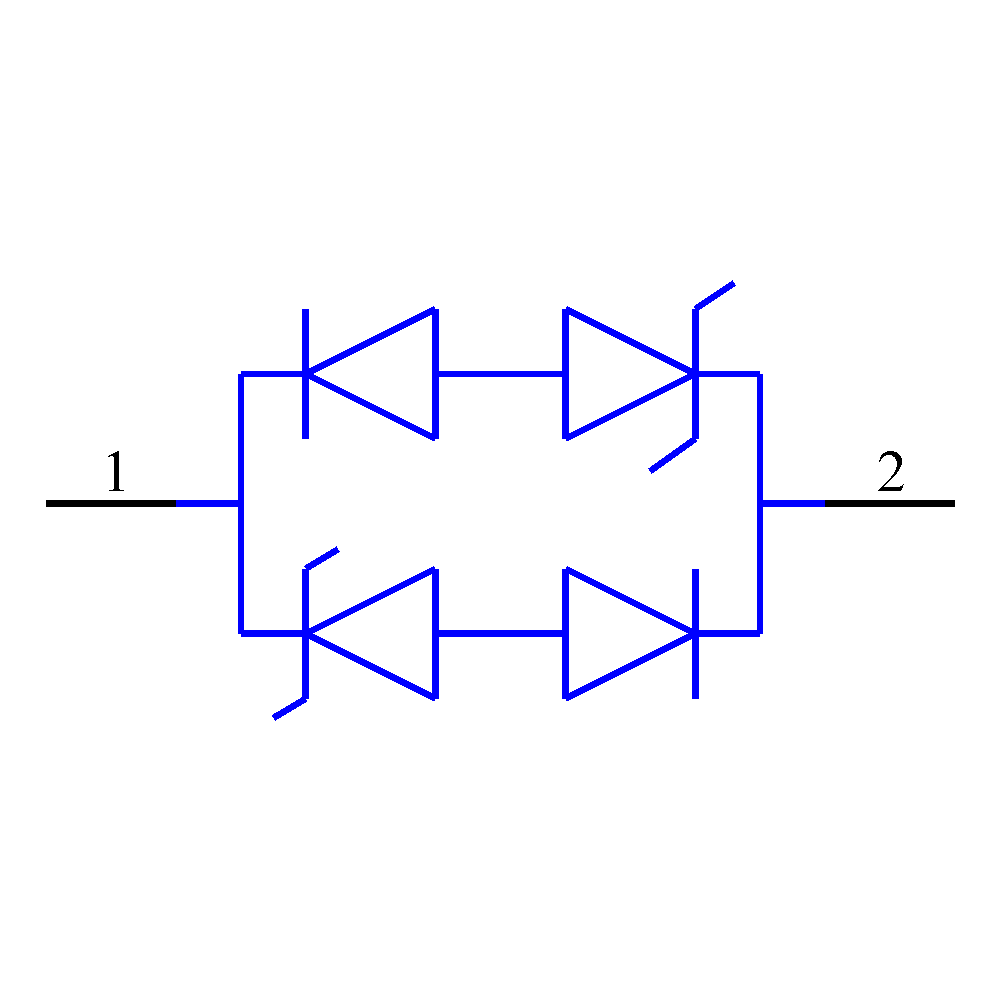

Symbol

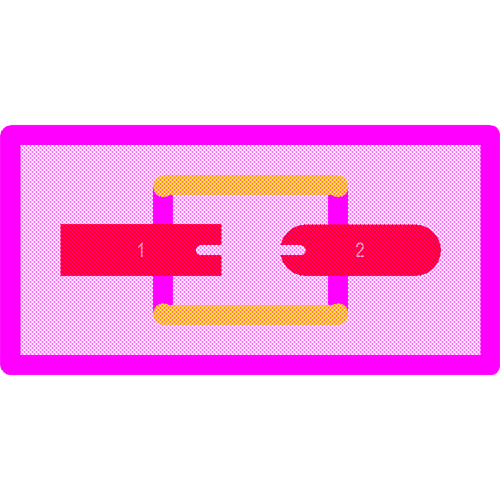

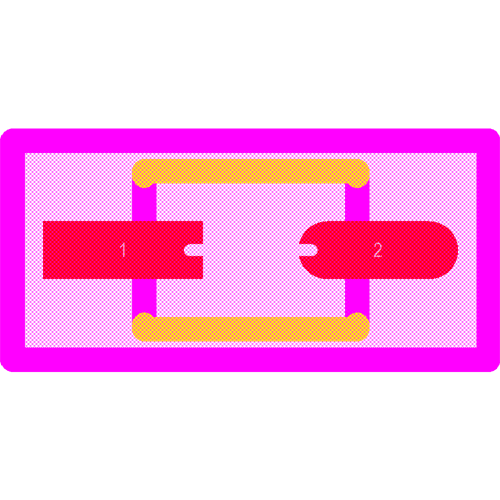

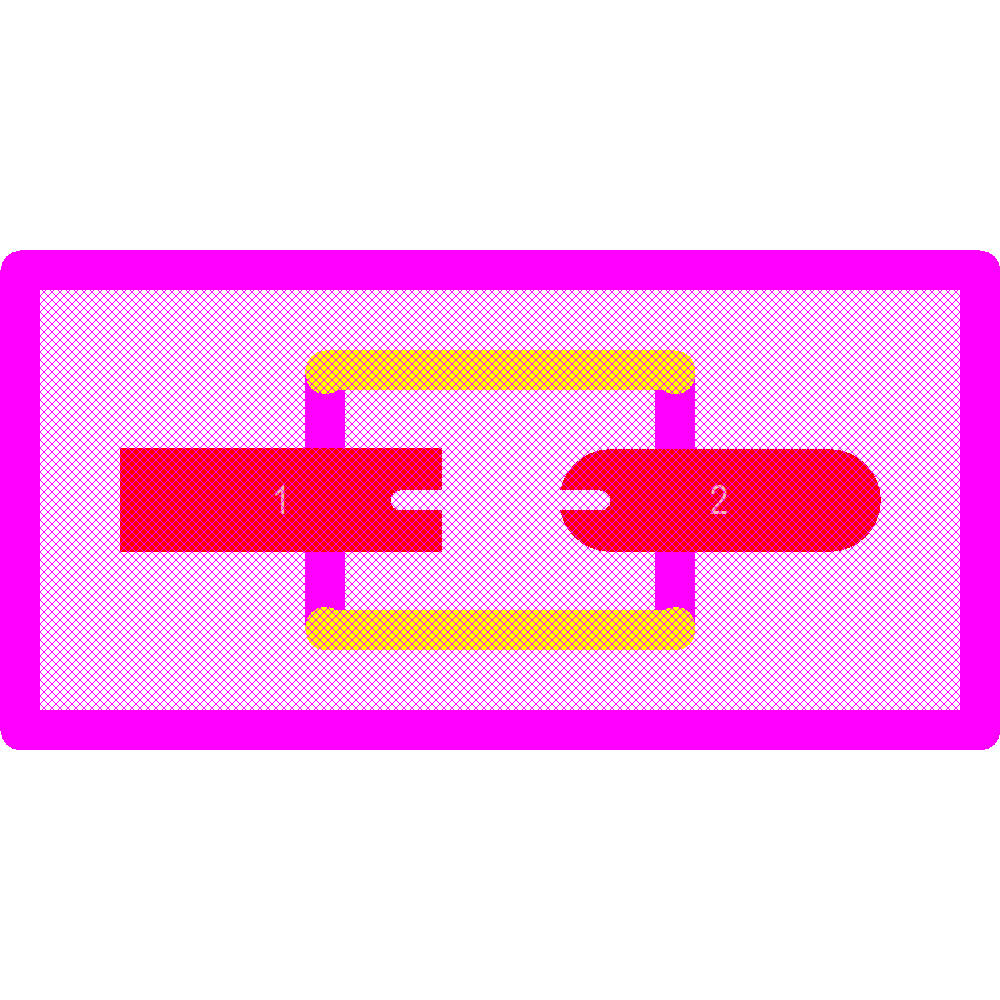

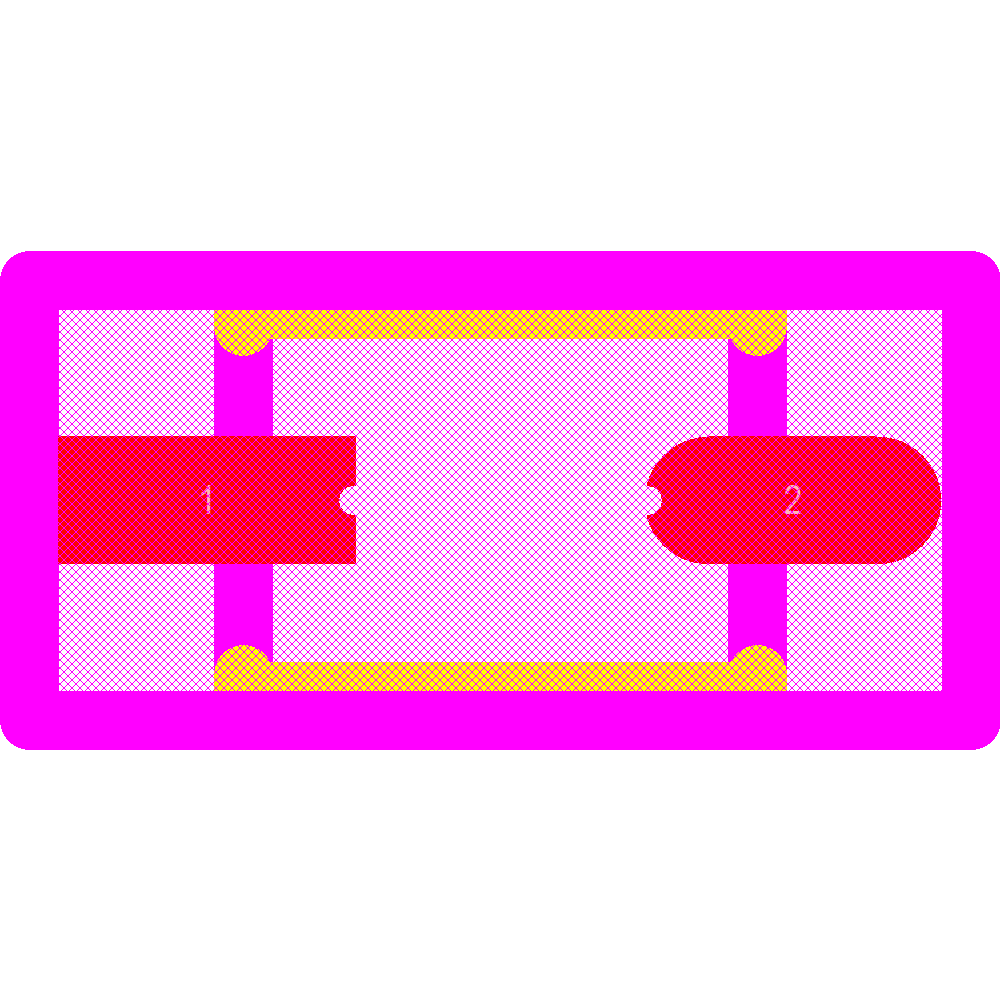

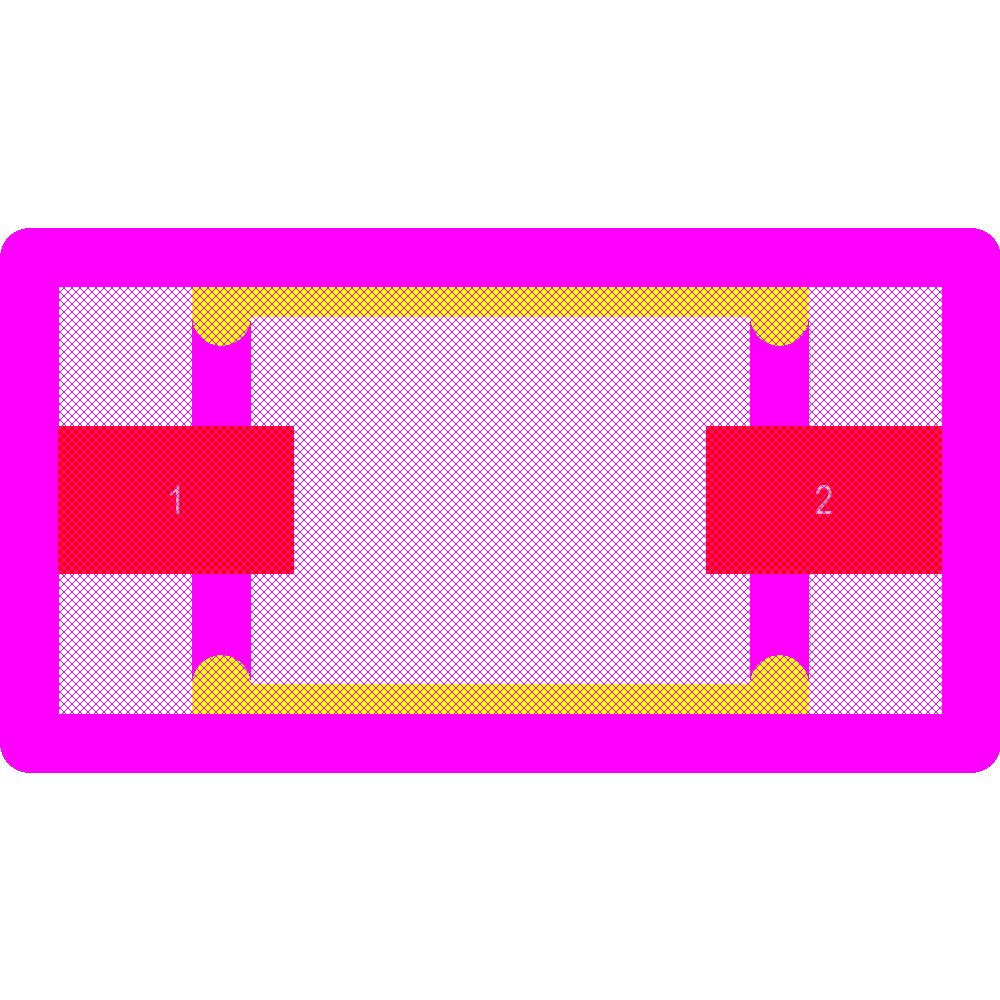

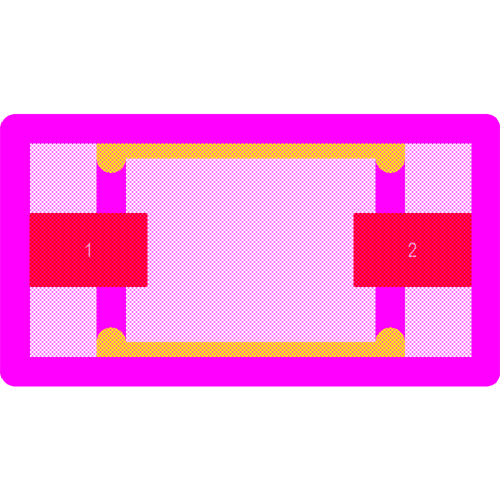

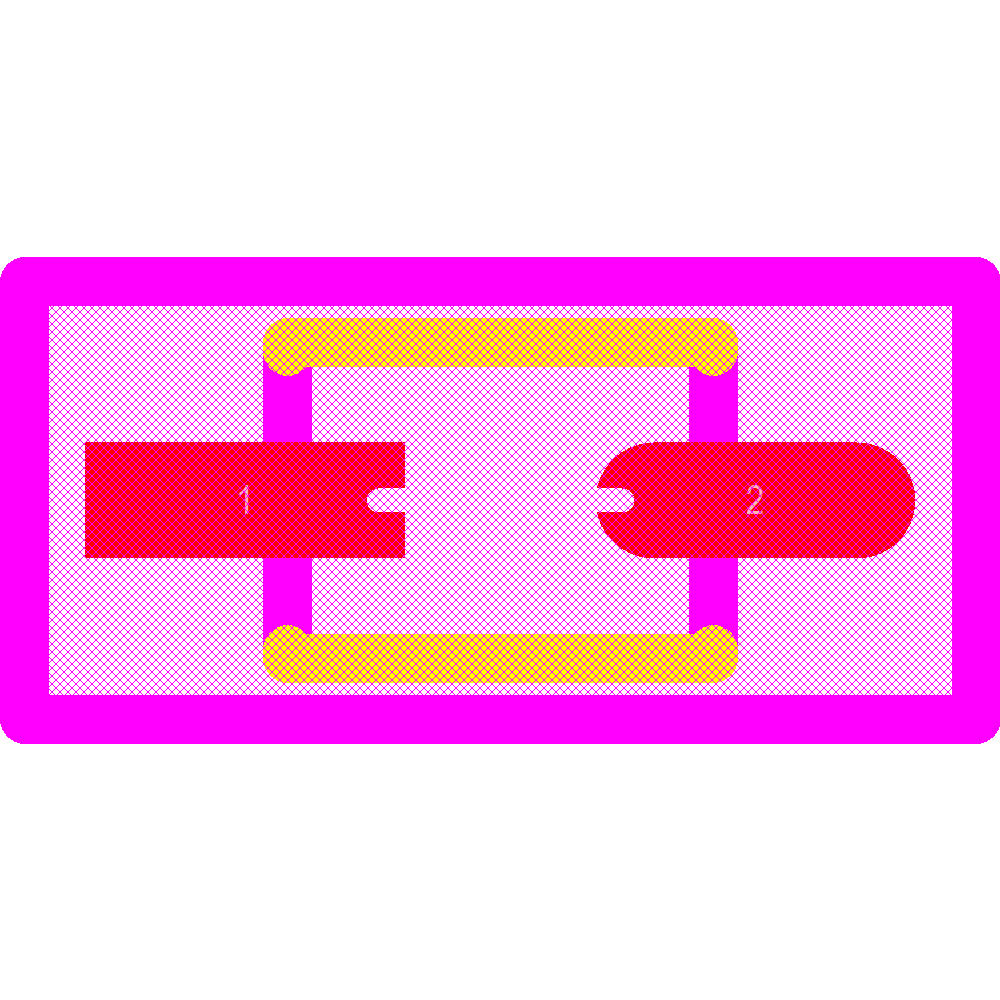

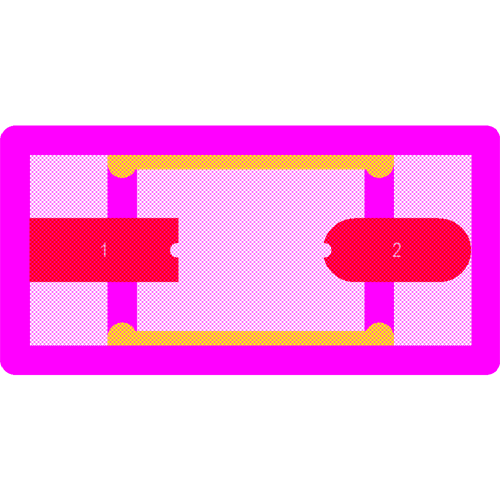

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Bourns
CDSOD323-T18C
Production
Bourns
CDSOD323-T24C
Production
Bourns
CDSOD323-T12C
Production
Bourns
CDSOD323-T08C
Production
Bourns
CDSOD323-T15C
Production
Bourns
CDSOD323-T03C
Production
Protek Devices
GBLC03C-LF-T7
Production
Protek Devices
GBLC03C-T7
Obsolete
Protek Devices
GBLC05C-T7
Obsolete
Protek Devices
GBLC08CI-LF-T7
Production

See more alternatives See less alternatives
