Circuit Protection > PTC Resettable Fuses

MF-FSMF050X-2 - Bourns

PTC Resettable Fuse 0.5A(hold) 1A(trip) 6V 40A 0.5W 0.1s 0.1Ohm SMD Solder Pad 0603 T/R

Technical Details

Ambient Temperature Range High	85°C
Approvals	UL
Case/Package	0603
Case Code (Imperial)	0603
Case Code (Metric)	1608
China RoHS	Compliant
Contact Plating	Gold
Current Rating	40A
Height	1mm
Hold Current	500mA
Length	1.85mm
Lifecycle Status	Production
Max Current Rating	40A
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Mount	Surface Mount
Number of Terminals	2
Operating Supply Voltage	6V
Packaging	Cut Tape
Power Dissipation	500mW
Radiation Hardening	No
REACH SVHC	Yes
Resistance	100mΩ
RoHS	Compliant
Schedule B	8536100040, 8536100040\|8536100040, 8536100040\|8536100040\|8536100040, 8536100040\|8536100040\|8536100040\|8536100040
Terminal Material	Gold
Termination	SMD/SMT
Time to Trip	100ms
Trip Current	1A
Voltage Rating	6V
Voltage Rating (DC)	6V
Width	1.05mm
Working Voltage	6V

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

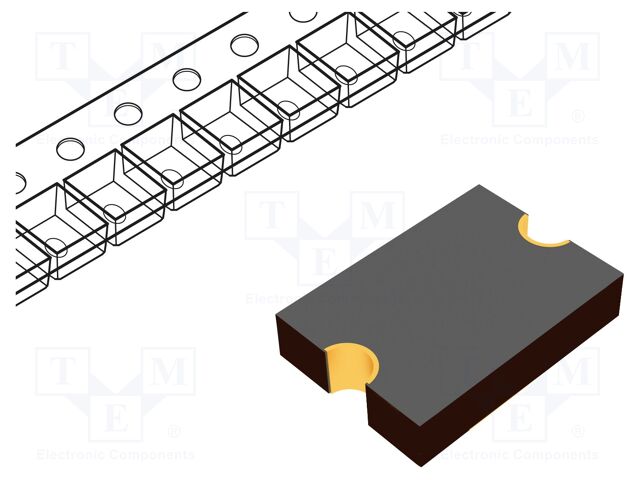

Images

Bourns MF-FSMF050X-2 | TME

TME

Datasheets

Lifecycle Status Indicator

Production

Symbol

MF-FSMF050X-2 Symbol - Bourns

MF-FSMF050X-2 Symbol - Bourns

MF-FSMF050X-2 Symbol - Bourns

MF-FSMF050X-2 Symbol - Bourns

‹ ›

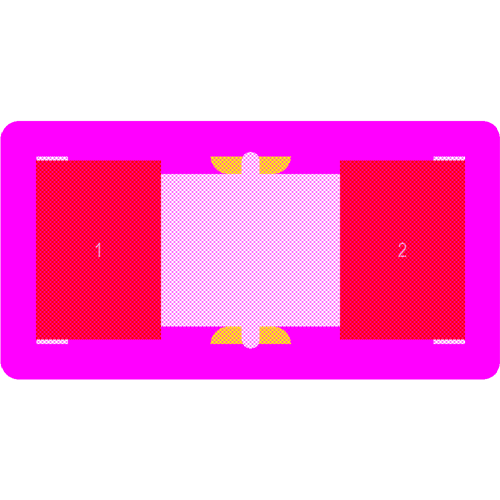

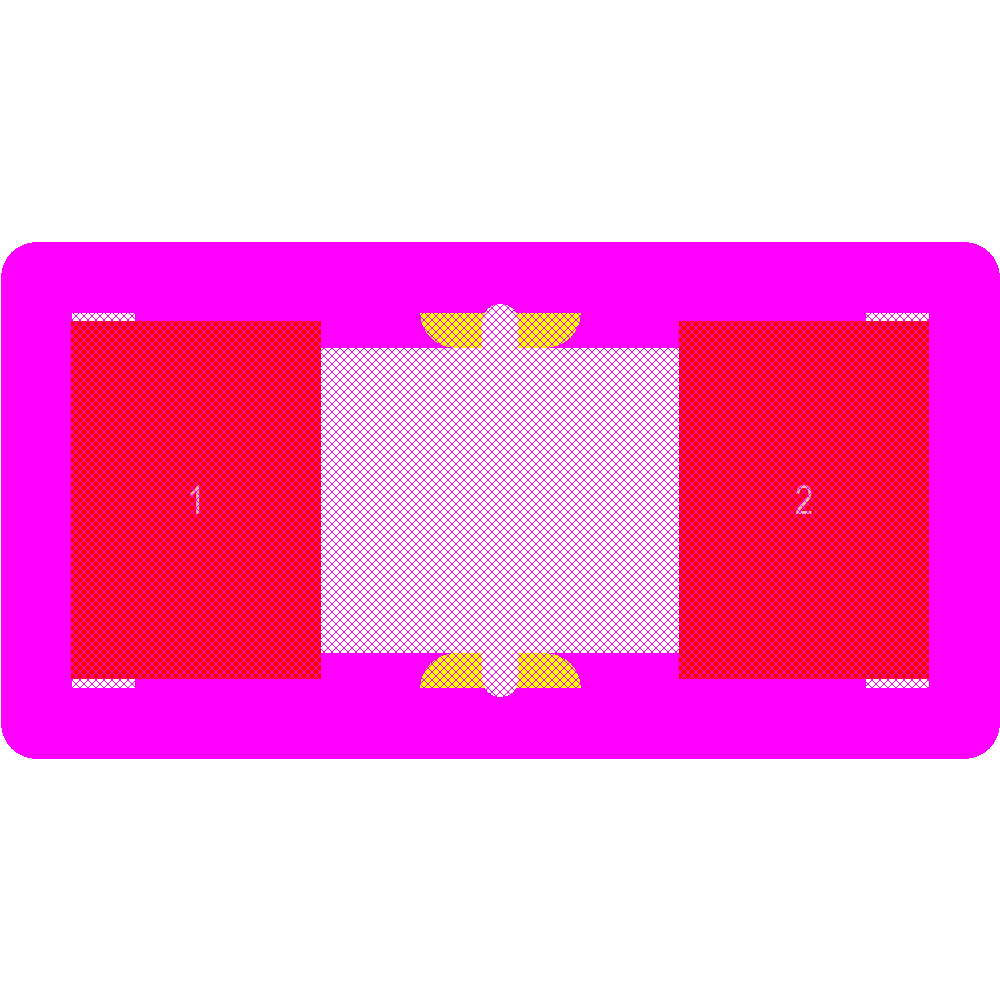

Footprint

MF-FSMF050X-2 Footprint - Bourns

MF-FSMF050X-2 Footprint - Bourns

MF-FSMF050X-2 Footprint - Bourns

MF-FSMF050X-2 Footprint - Bourns

‹ ›
