MF-MSMF200-2 - Bourns

PTC Resettable Fuse 2A(hold) 4A(trip) 8V 40A 0.8W 3s 0.02Ohm SMD Solder Pad 1812 T/R

Technical Details

Approvals	CSA, TUV, UL
Case/Package	1812
Case Code (Imperial)	1812
Case Code (Metric)	4532
China RoHS	Compliant
Current Rating	40A
Export Control Classification Number (ECCN) Code	EAR99
Height	850µm
Hold Current	2A
Harmonized Tariff Schedule (HTS) Code	8533.40.80.70
Introduction Date	2004-04-19
Lead Free	Lead Free
Length	4.73mm
Lifecycle Status	Obsolete
Max Current Rating	40A
Max Operating Temperature	85°C
Max Power Dissipation	800mW
Min Operating Temperature	-40°C
Mount	Surface Mount
Number of Pins	1812
Number of Terminals	2
Operating Supply Voltage	8V
Power Dissipation	800mW
Radiation Hardening	No
REACH SVHC	Yes
Resistance	20mΩ
RoHS	Compliant
Schedule B	8536100040, 8536100040\|8536100040\|8536100040\|8536100040\|8536100040
Terminal Material	Gold
Termination	SMD/SMT
Time to Trip	2s
Trip Current	4A
Voltage Rating	8V
Voltage Rating (DC)	8V
Width	3.41mm
Working Voltage	8V

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

Bourns MF-MSMF200-2 | Onlinecomponents.com

Onlinecomponents.com

Datasheets

Lifecycle Status Indicator

Obsolete

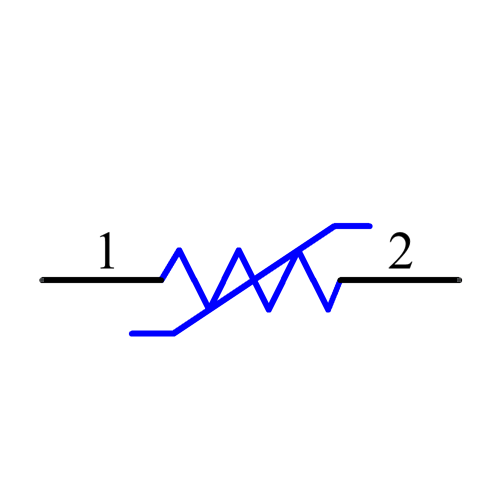

Symbol

MF-MSMF200-2 Symbol - Bourns

MF-MSMF200-2 Symbol - Bourns

MF-MSMF200-2 Symbol - Bourns

MF-MSMF200-2 Symbol - Bourns

‹ ›

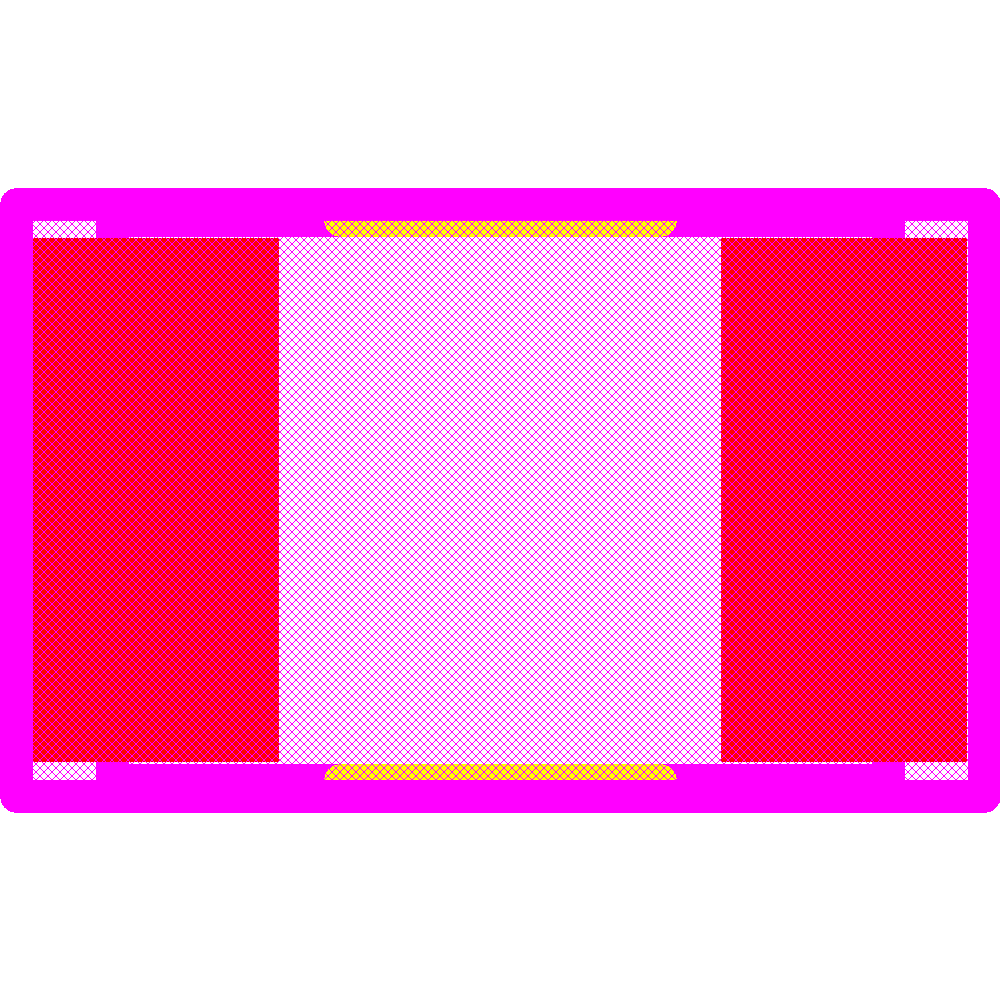

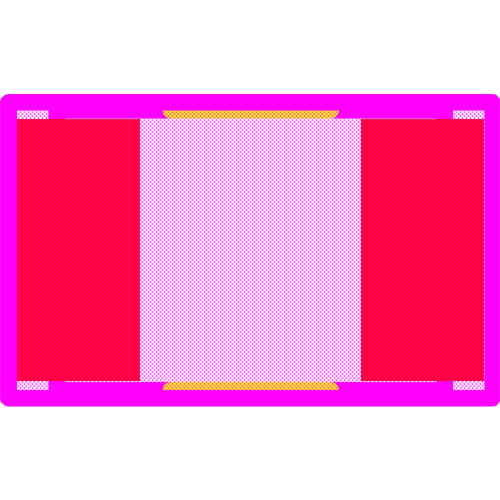

Footprint
