MF-NSMF050-2 - Bourns

PTC Resettable Fuse 0.5A(hold) 1A(trip) 13.2V 100A 0.4W 0.1s 0.15Ohm SMD Solder Pad 1206 T/R Automotive

Technical Details

Ambient Temperature Range High	85°C
Approvals	CSA, TUV, UL
Case/Package	1206
Case Code (Imperial)	1206
Case Code (Metric)	3216
China RoHS	Compliant
Contact Plating	Gold
Current Rating	100A
Export Control Classification Number (ECCN) Code	EAR99
Height	850µm
Hold Current	500mA
Harmonized Tariff Schedule (HTS) Code	8533.40.80.70
Introduction Date	2005-05-17
Lead Free	Lead Free
Length	3.4mm
Lifecycle Status	Production
Max Current Rating	100A
Max Operating Temperature	85°C
Max Power Dissipation	400mW
Min Operating Temperature	-40°C
Mount	Surface Mount
Number of Pins	1206
Number of Terminals	2
Operating Supply Voltage	13.2V
Packaging	Cut Tape
Power Dissipation	400mW
Radiation Hardening	No
REACH SVHC	Yes
Resistance	150mΩ
RoHS	Compliant
Schedule B	8536100040, 8536100040\|8536100040\|8536100040\|8536100040\|8536100040
Tab Width	250µm
Terminal Material	Gold
Termination	SMD/SMT
Time to Trip	100ms
Trip Current	1A
Voltage Rating	13.2V
Voltage Rating (DC)	13.2V
Width	1.8mm
Working Voltage	13.2V

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

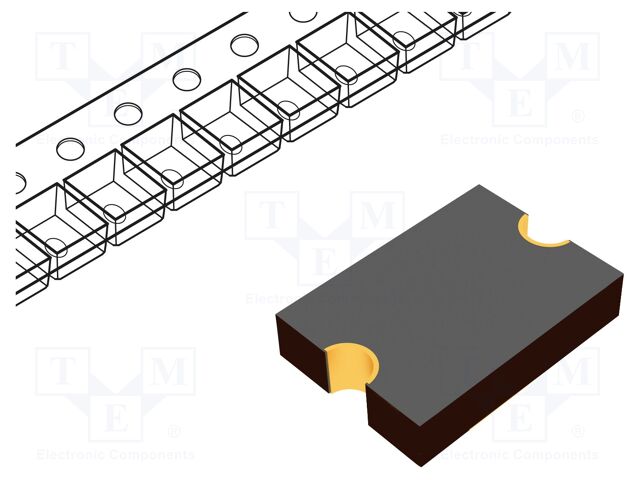

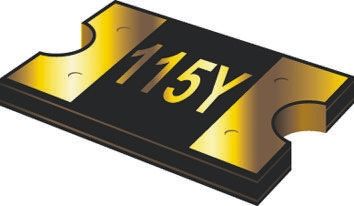

Images

Bourns MF-NSMF050-2 | TME

TME

Datasheets

Lifecycle Status Indicator

Production

Symbol

MF-NSMF050-2 Symbol - Bourns

MF-NSMF050-2 Symbol - Bourns

MF-NSMF050-2 Symbol - Bourns

MF-NSMF050-2 Symbol - Bourns

‹ ›

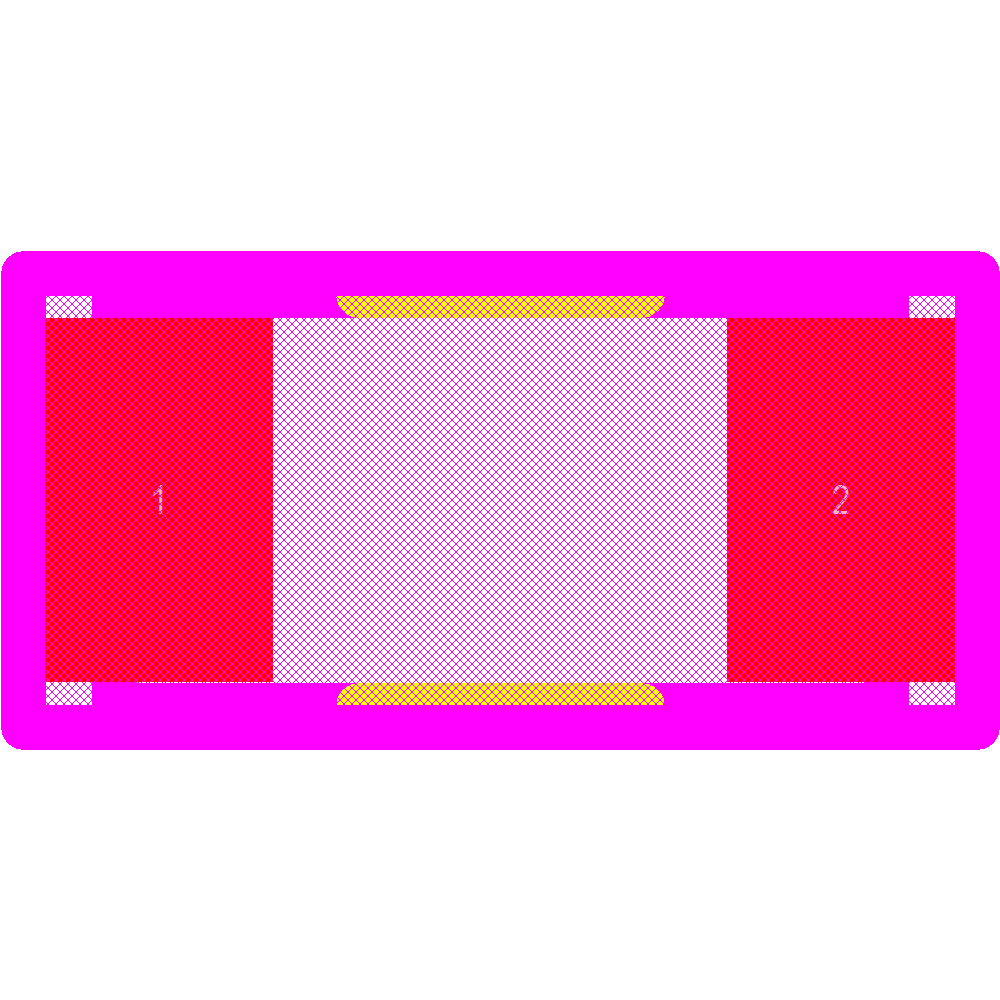

Footprint
