MF-PSMF050X-2 - Bourns
PTC Resettable Fuse 0.5A(hold) 1A(trip) 6V 40A 0.5W 0.1s 0.15Ohm SMD Solder Pad 0805 T/R
Technical Details
| Ambient Temperature Range High | 85°C |
| Approvals | UL |
| Case/Package | 0805 |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| China RoHS | Compliant |
| Current Rating | 40A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 850µm |
| Hold Current | 500mA |
| Harmonized Tariff Schedule (HTS) Code | 8533.40.80.70 |
| Introduction Date | 2007-10-19 |
| Length | 2.3mm |
| Lifecycle Status | Production |
| Max Current Rating | 40A |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 500mW |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Terminals | 2 |
| Operating Supply Voltage | 6V |
| Packaging | Cut Tape |
| Power Dissipation | 500mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Resistance | 150mΩ |
| RoHS | Compliant |
| Schedule B | 8536100040, 8536100040|8536100040|8536100040|8536100040|8536100040 |
| Terminal Material | Gold |
| Termination | SMD/SMT |
| Time to Trip | 100ms |
| Trip Current | 1A |
| Voltage Rating | 6V |
| Voltage Rating (DC) | 6V |
| Width | 1.5mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

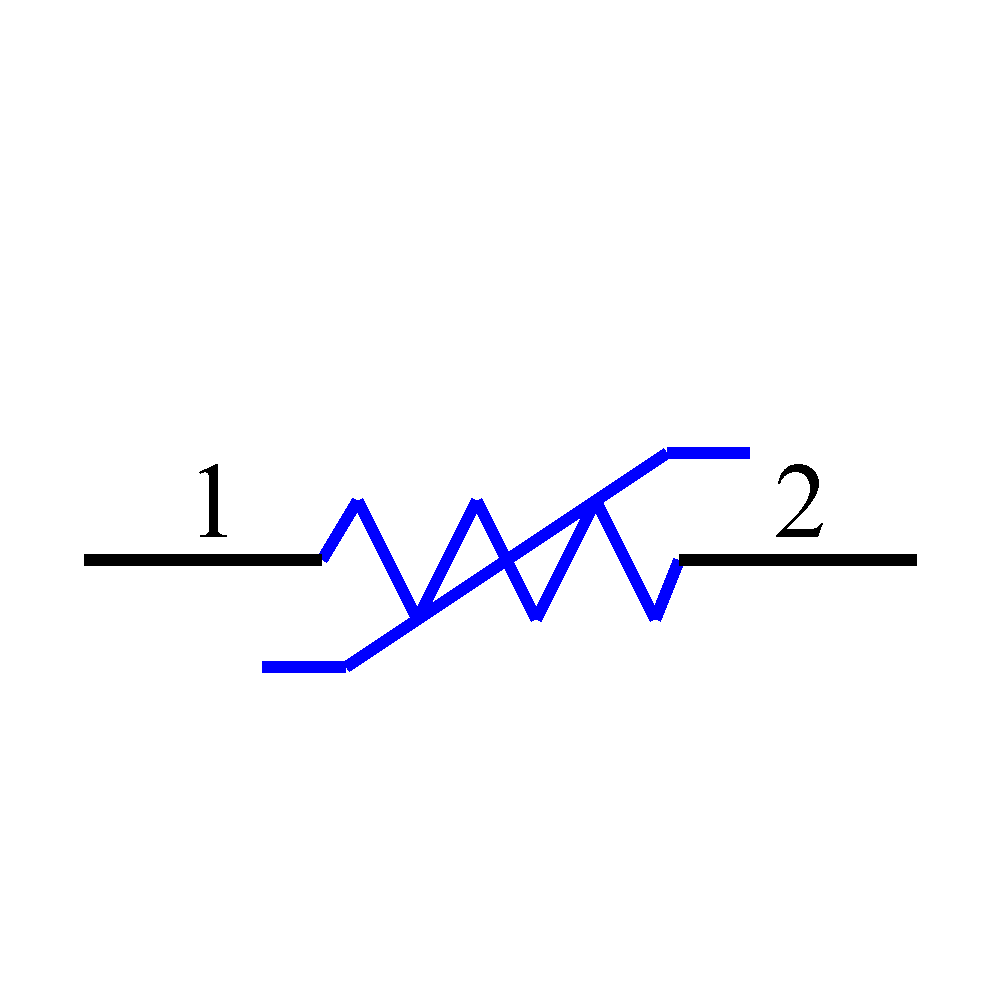

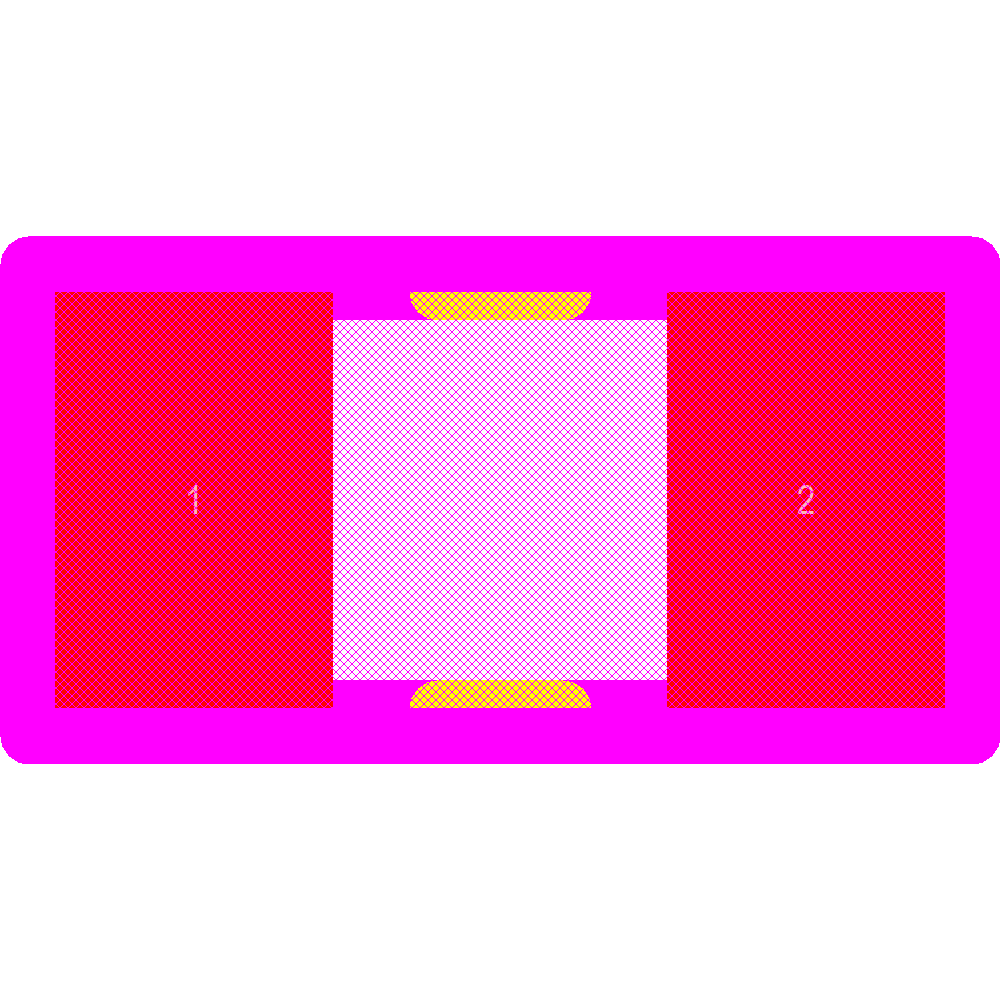

Images
