Circuit Protection  >  PTC Resettable Fuses

Bourns - MF-PSMF110X-2

MF-PSMF110X-2 - Bourns

PTC Resettable Fuse 1.1A(hold) 2.2A(trip) 6V 40A 0.6W 0.3s 0.06Ohm SMD Solder Pad 0805 T/R Automotive

 Datasheets

Technical Details

Ambient Temperature Range High 85°C
Approvals UL
Case/Package 0805
Case Code (Imperial) 0805
Case Code (Metric) 2012
China RoHS Compliant
Contact Plating Gold
Current Rating 40A
Export Control Classification Number (ECCN) Code EAR99
Height 1.25mm
Hold Current 1.1A
Harmonized Tariff Schedule (HTS) Code 8533.40.80.70
Introduction Date 2007-10-19
Length 2.3mm
Lifecycle Status Production
Max Current Rating 40A
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Mount Surface Mount
Number of Terminals 2
Operating Supply Voltage 6V
Packaging Cut Tape
Power Dissipation 600mW
Radiation Hardening No
REACH SVHC Yes
Resistance 60mΩ
RoHS Compliant
Schedule B 8536100040, 8536100040|8536100040, 8536100040|8536100040|8536100040, 8536100040|8536100040|8536100040|8536100040
Terminal Material Gold
Termination SMD/SMT
Time to Trip 300ms
Trip Current 2.2A
Voltage Rating 6V
Voltage Rating (DC) 6V
Width 1.5mm

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : Yes

Images

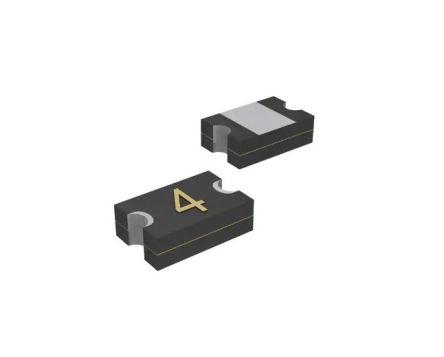

Bourns MF-PSMF110X-2 | RS

RS

Datasheets

 RS
 RS
 RS

Lifecycle Status Indicator

   Production
Symbol

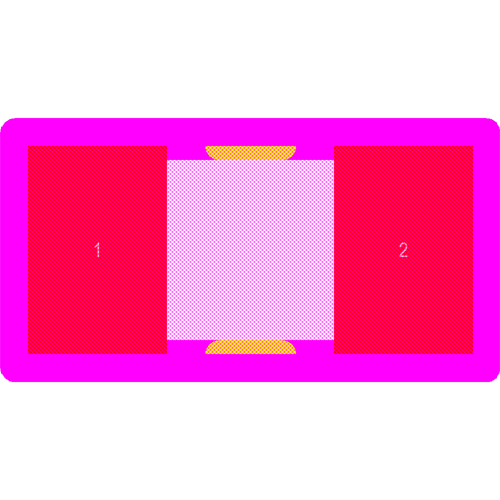

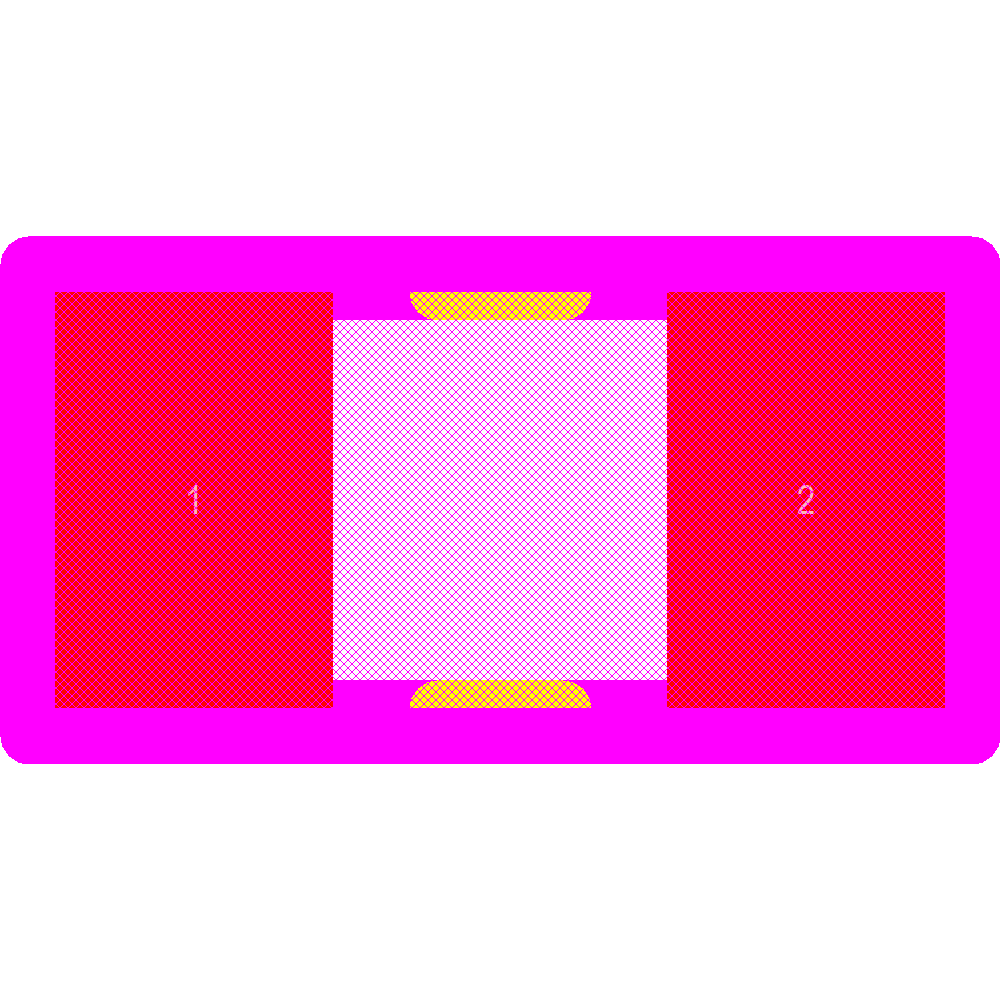

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Bourns
MF-PSMF075X-2
Production

Authorized Distributors
