Circuit Protection > PTC Resettable Fuses

MF-SM075-2 - Bourns

PTC Resettable Fuse 0.75A(hold) 1.5A(trip) 30V 80A 1.7W 0.3s 0.23Ohm SMD Solder Pad 7.98 X 5.44 X 3.18mm T/R

Technical Details

Ambient Temperature Range High	85°C
Approvals	CSA, TUV, UL
Case/Package	SMD/SMT
Case Code (Imperial)	2920
Case Code (Metric)	7351
China RoHS	Compliant
Contact Plating	Tin
Current Rating	80A
Export Control Classification Number (ECCN) Code	EAR99
Height	3.18mm
Hold Current	750mA
Harmonized Tariff Schedule (HTS) Code	8533.40.80.70
Introduction Date	1998-06-01
Lead Free	Lead Free
Lead Length	430µm
Length	7.98mm
Lifecycle Status	Production
Max Current Rating	80A
Max Operating Temperature	85°C
Max Power Dissipation	1.7W
Min Operating Temperature	-40°C
Mount	Surface Mount
Number of Pins	2
Number of Terminals	2
Operating Supply Voltage	30V
Packaging	Cut Tape
Power Dissipation	1.7W
Radiation Hardening	No
REACH SVHC	Yes
Resistance	230mΩ
RoHS	Compliant
Schedule B	8536100040, 8536100040\|8536100040\|8536100040\|8536100040\|8536100040
Tab Width	710µm
Terminal Material	Brass
Termination	SMD/SMT
Time to Trip	300ms
Trip Current	1.5A
Voltage Rating	30V
Voltage Rating (DC)	30V
Width	5.44mm
Working Voltage	30V

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

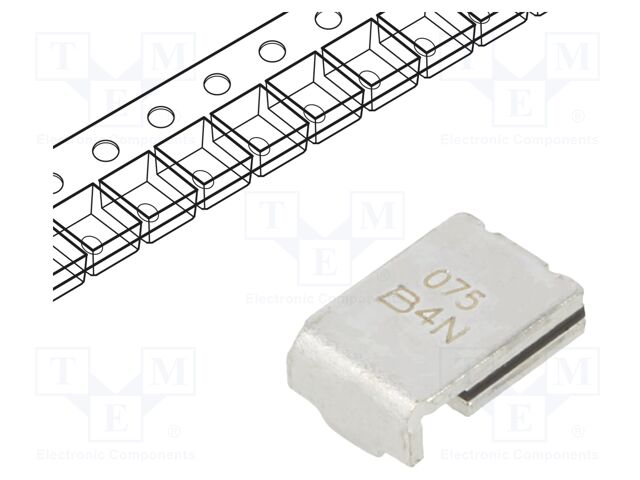

Bourns MF-SM075-2 | TME

TME

Datasheets

Lifecycle Status Indicator

Production

Symbol

MF-SM075-2 Symbol - Bourns

MF-SM075-2 Symbol - Bourns

MF-SM075-2 Symbol - Bourns

MF-SM075-2 Symbol - Bourns

‹ ›

Footprint

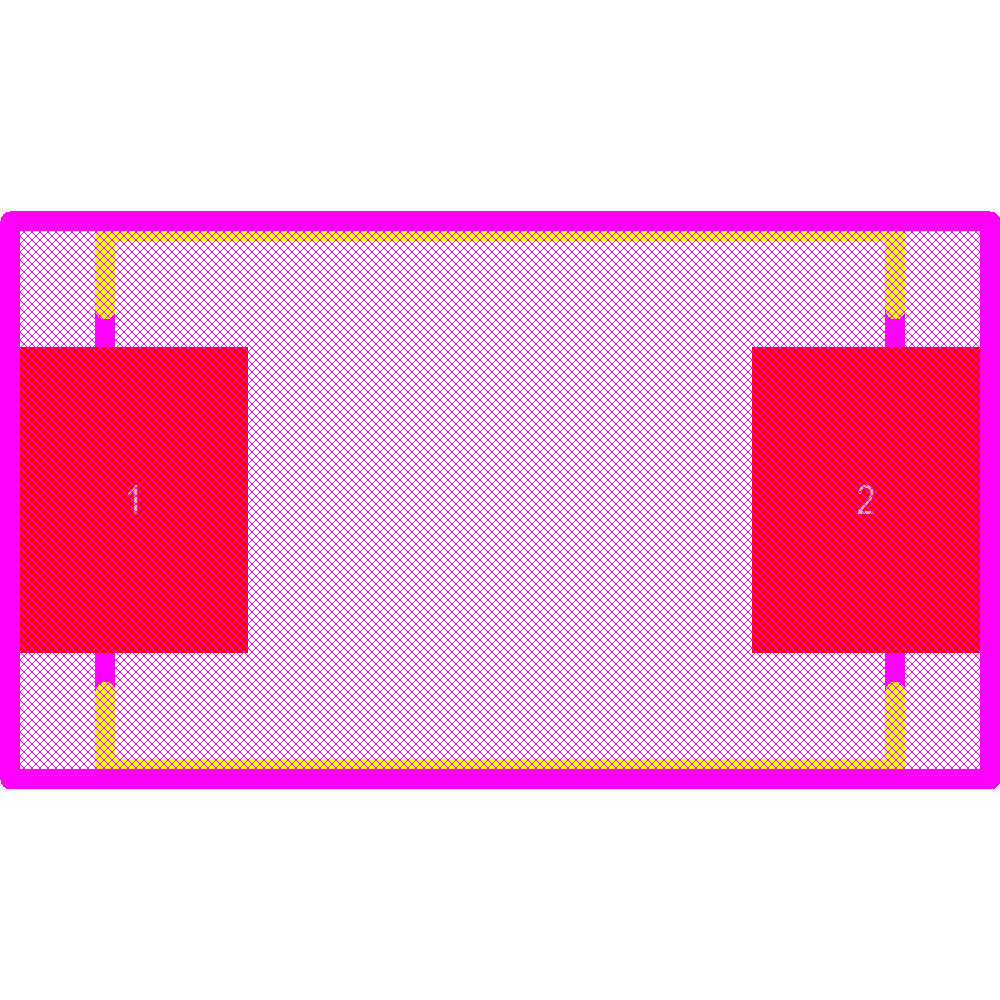

MF-SM075-2 Footprint - Bourns
