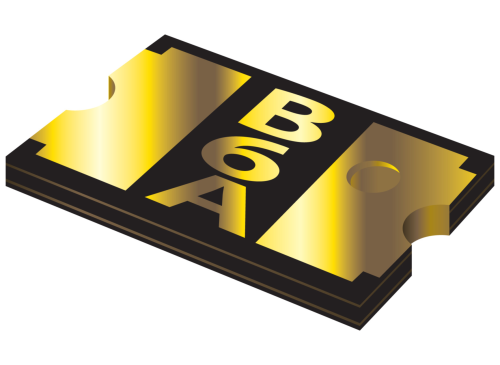

MF-USMF175X-2 - Bourns
SMD Resettable Fuse, PPTC, 1210 (3225 Metric), MF-USMF, 6 V, 1.75 A, 3.5 A, 1 s
Technical Details
| Approvals | CSA |
| Case/Package | 1210 |
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| China RoHS | Compliant |
| Height | 850µm |
| Hold Current | 1.75A |
| Length | 3.43mm |
| Lifecycle Status | Production |
| Max Current Rating | 40A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Terminals | 2 |
| Packaging | Tape and Reel |
| Power Dissipation | 700mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Resistance | 20mΩ |
| RoHS | Compliant |
| Schedule B | 8536100040, 8536100040|8536100040|8536100040|8536100040|8536100040 |
| Time to Trip | 1s |
| Trip Current | 3.5A |
| Voltage Rating (DC) | 6V |
| Width | 2.8mm |
| Working Voltage | 6V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

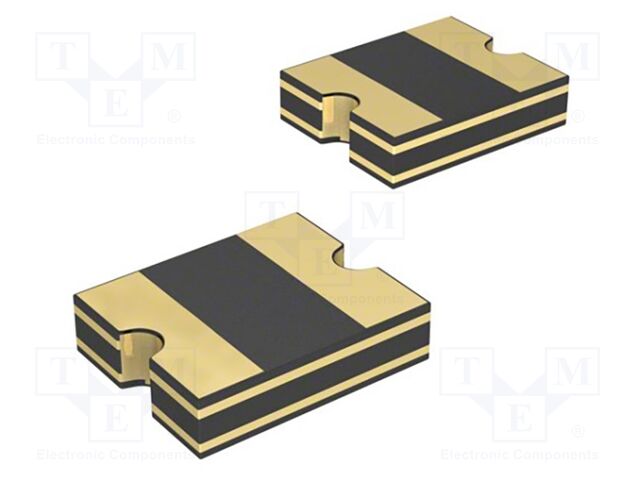

Images
TME
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Littelfuse | Production | ||
| Littelfuse | Production | ||
| Bourns | Production | ||
| Bourns | Production | ||
| Littelfuse | Production | ||
| Bourns | Production | ||
| Bourns | Production | ||
| Bel Fuse | Obsolete | ||
| Bourns | Production | ||
| Bourns | Production |
