SMAJ5.0CA - Bourns
Bourns SMAJ5.0CA TVS diode DO 214AC 6.4V 400W Suppressor for surge protection
Technical Details
| Breakdown Voltage | 6.7V |
| Case/Package | SMA |
| China RoHS | Non-Compliant |
| Clamping Voltage | 9.2V |
| Composition | Zener |
| Contact Plating | Tin |
| Direction | Bidirectional |
| Element Configuration | Single |
| ESD Protection | Yes |
| Height | 2.62mm |
| Leakage Current | 1.6mA |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 7V |
| Max Junction Temperature (Tj) | 150°C |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 1W |
| Max Reverse Leakage Current | 1.6mA |
| Max Surge Current | 40A |
| Min Breakdown Voltage | 6.4V |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 1 |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Operating Supply Voltage | 5V |
| Packaging | Tape & Reel |
| Peak Pulse Current | 43.5A |
| Peak Pulse Power | 400W |
| Peak Reverse Current | 1.6mA |
| Polarity | Bidirectional |
| Power Line Protection | No |
| Radiation Hardening | No |
| REACH SVHC | No |
| Reverse Breakdown Voltage | 6.4V |
| Reverse Standoff Voltage | 5V |
| RoHS | Compliant |
| Schedule B | 8541100080 |
| Termination | SMD/SMT |
| Test Current | 10mA |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

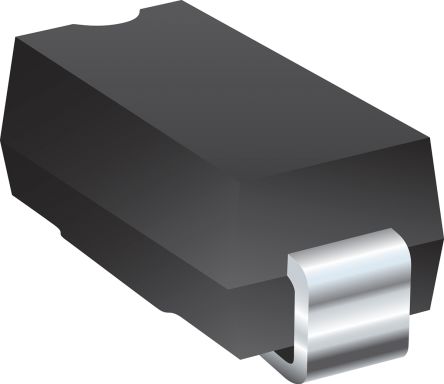

Images
