Electromechanical  >  Switches  >  Toggle Switches

C&K Components - 7201SYZBE

7201SYZBE - C&K Components

Toggle Switch, DPDT, On-on, Latched, Solder Terminal, Toggle Bat Actuator, Panel Mount

 Datasheets

Technical Details

Actuator Length 10.414mm
Actuator Material Brass
Contact Current Rating 20mA
Contact Material Gold
Contact Plating Gold
Contact Resistance 10mΩ
Contact Voltage Rating (AC) 20V
Country of Origin Vietnam
Depth 11.43mm
Export Control Classification Number (ECCN) Code EAR99
Electrical Life 100kcycles
Height 8.89mm
Housing Material Stainless Steel
Harmonized Tariff Schedule (HTS) Code 8536.50.90.65
Illumination Type Illuminated, Non-Illuminated
Insulation Resistance 1GΩ
Introduction Date 1999-01-01
Lead Free Lead Free
Length 12.7mm
Lifecycle Status Production
Max Current Rating 20mA
Max Operating Temperature 85°C
Max Voltage Rating (AC) 20V
Max Voltage Rating (DC) 20V
Min Operating Temperature -30°C
Mount Panel
Number of Poles 2
Number of Positions 2
Orientation Straight
Power Rating 400mW
Radiation Hardening No
REACH SVHC No
RoHS Compliant
Sealable EPOXY
Switch Function On-On
Termination Solder
Throw Configuration DPDT
Voltage Rating (AC) 20V
Voltage Rating (DC) 20V
Width 11.43mm

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : No

Images

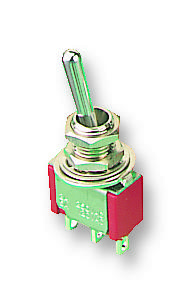

C&K Components 7201SYZBE | CPC

CPC

Datasheets

 CPC
 Onlinecomponents.com
 TME

Lifecycle Status Indicator

   Production

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
C&K Components
7201SYZGE
Production
C&K Components
7201SPYZBI
Production
C&K Components
7201SYZGE22
Production
C&K Components
7201SPYZGE
Production
C&K Components
7201SY9ZBE
Production
C&K Components
7201SPY9ZBE
Production
C&K Components
7201SYZ3GE
Production
C&K Components
7201SYZ3BE
Production
C&K Components
7201P1YZQES
Obsolete
C&K Components
7201P1CWZ3QE
Production

See more alternatives See less alternatives
