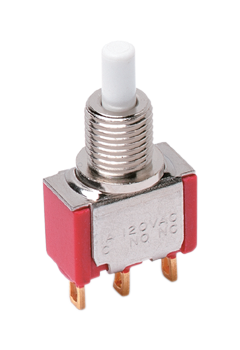

8121LYCGE - C&K Components
SPDT, On-(on), Momentary, 1A, 28VDC, 3 PCB Hole Cnt, Solder Terminal, Through Hole-straight
Technical Details
| Actuator Length | 4.5212mm |
| Actuator Material | Nylon |
| Contact Current Rating | 1A |
| Contact Material | Silver |
| Contact Plating | Gold |
| Contact Resistance | 50mΩ |
| Contact Voltage Rating (AC) | 120V |
| Country of Origin | Vietnam |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 60kcycles |
| Height | 30.1752mm |
| Housing Material | Stainless Steel |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.31 |
| Insulation Resistance | 1GΩ |
| Introduction Date | 1999-01-01 |
| Length | 12.7mm |
| Lifecycle Status | Production |
| Max Current Rating | 1A |
| Max Operating Temperature | 75°C |
| Max Voltage Rating (DC) | 28V |
| Min Operating Temperature | -30°C |
| REACH SVHC | No |
| RoHS | Compliant |
| Sealable | EPOXY |
| Throw Configuration | SPDT |
Compliance
RoHS : Unconfirmed
REACH SVHC : No
Images
Sager Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| C&K Components | Production | ||
| C&K Components | Obsolete | ||
| C&K Components | Production | ||
| C&K Components | Obsolete | ||
| C&K Components | Production | ||
| C&K Components | Production | ||
| C&K Components | Production | ||
| C&K Components | Production | ||
| C&K Components | Obsolete | ||
| C&K Components | Production |
