D6R10LFS - C&K Components
Keypad Switch, 1 Switches, SPST, Momentary, 0.1A, 32VDC, 1.3N, 4 PCB Hole Cnt, Solder Terminal, Through Hole-straight
Technical Details
| Color | Grey |
| Contact Current Rating | 100mA |
| Contact Resistance | 100mΩ |
| Current Rating | 100mA |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 1Mcycles |
| Height | 5.9mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.40 |
| Illumination Type | Illuminated |
| Insulation Resistance | 100GΩ |
| Introduction Date | 2006-08-10 |
| Isolation Voltage | 1000Vrms |
| Lead Free | Lead Free |
| Length | 11.4mm |
| Life (Cycles) | 250kcycles |
| Lifecycle Status | Obsolete |
| Max Current Rating | 100mA |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 32V |
| Min Operating Temperature | -20°C |
| Mount | Through Hole |
| Number of Positions | 1 |
| Operating Force | 1.3N |
| Packaging | Bulk |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Switch Function | Off-Mom |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Voltage Rating (DC) | 32V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
Images

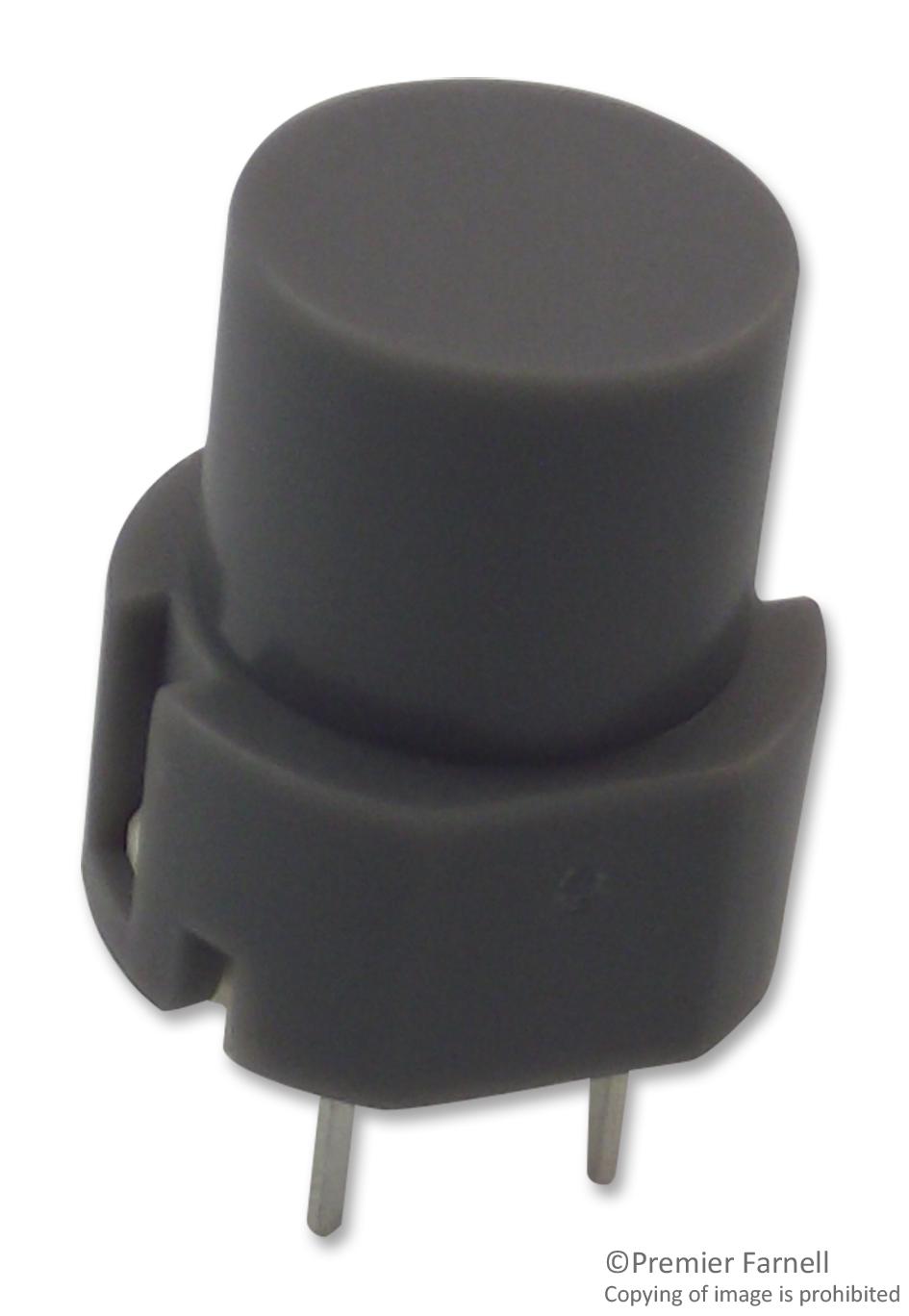

CPC
