F4UEE - C&K Components
Pushbutton Switch, 4PDT, Alternate, 0.5A, 30VDC, Solder Terminal, Through Hole-right Angle
Technical Details
| Actuator Length | 9mm |
| Actuator Material | Polyester |
| China RoHS | Compliant |
| Contact Current Rating | 500mA |
| Contact Material | Brass |
| Contact Plating | Silver |
| Contact Resistance | 20mΩ |
| Contact Voltage Rating (AC) | 125V |
| Current Rating | 500mA |
| Depth | 54.4mm |
| Electrical Life | 100kcycles |
| Flammability Rating | UL94 V-0 |
| Height | 6.9mm |
| Housing Material | Polycarbonate |
| Insulation Resistance | 1GΩ |
| Lead Free | Lead Free |
| Length | 33mm |
| Lifecycle Status | Production |
| Max Current Rating | 500mA |
| Max Operating Temperature | 70°C |
| Max Voltage Rating (AC) | 125V |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 100kcycles |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Operating Force | 6N |
| Orientation | Right Angle |
| Packaging | Bulk |
| Power Rating | 50W |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Sealable | TOP AND BOTTOM SEALED |
| Switch Function | On-On |
| Terminal Material | Brass |
| Termination | Solder |
| Throw Configuration | 4PDT |
| Voltage Rating (AC) | 125V |
| Voltage Rating (DC) | 30V |
| Width | 10.5mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

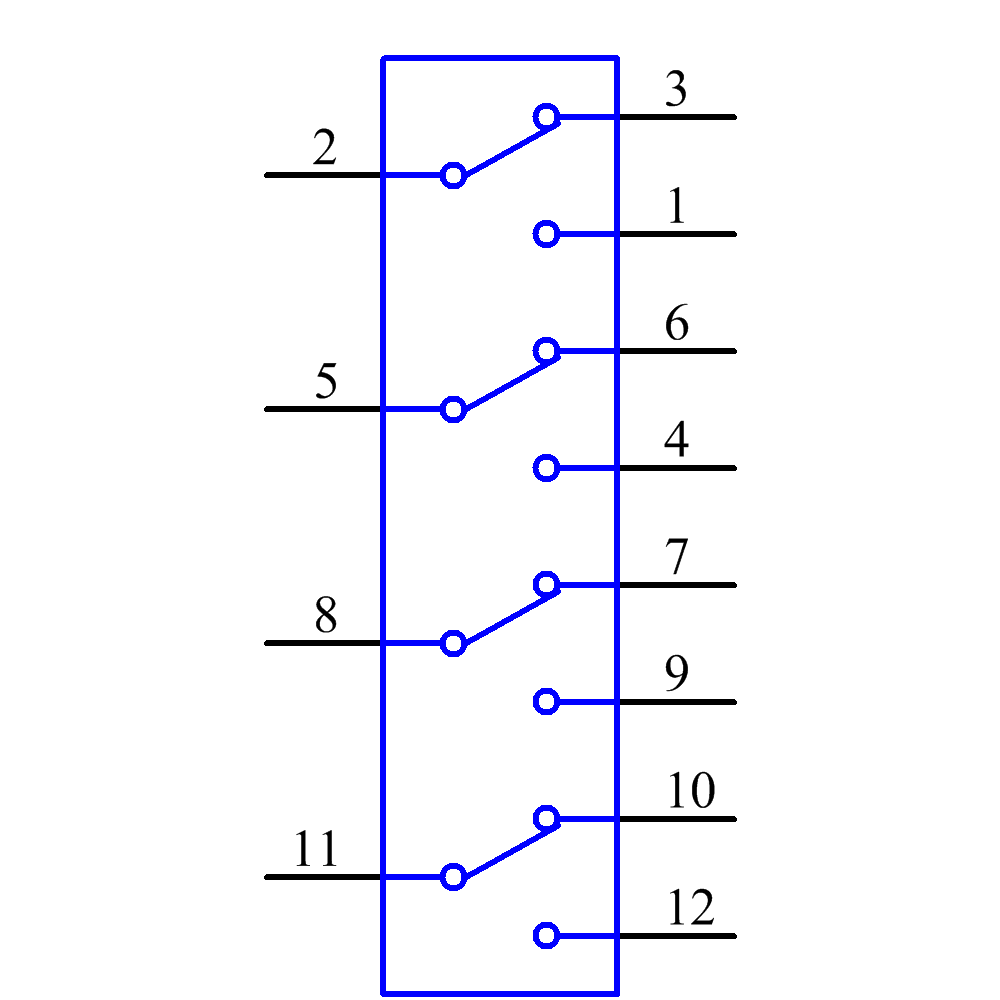

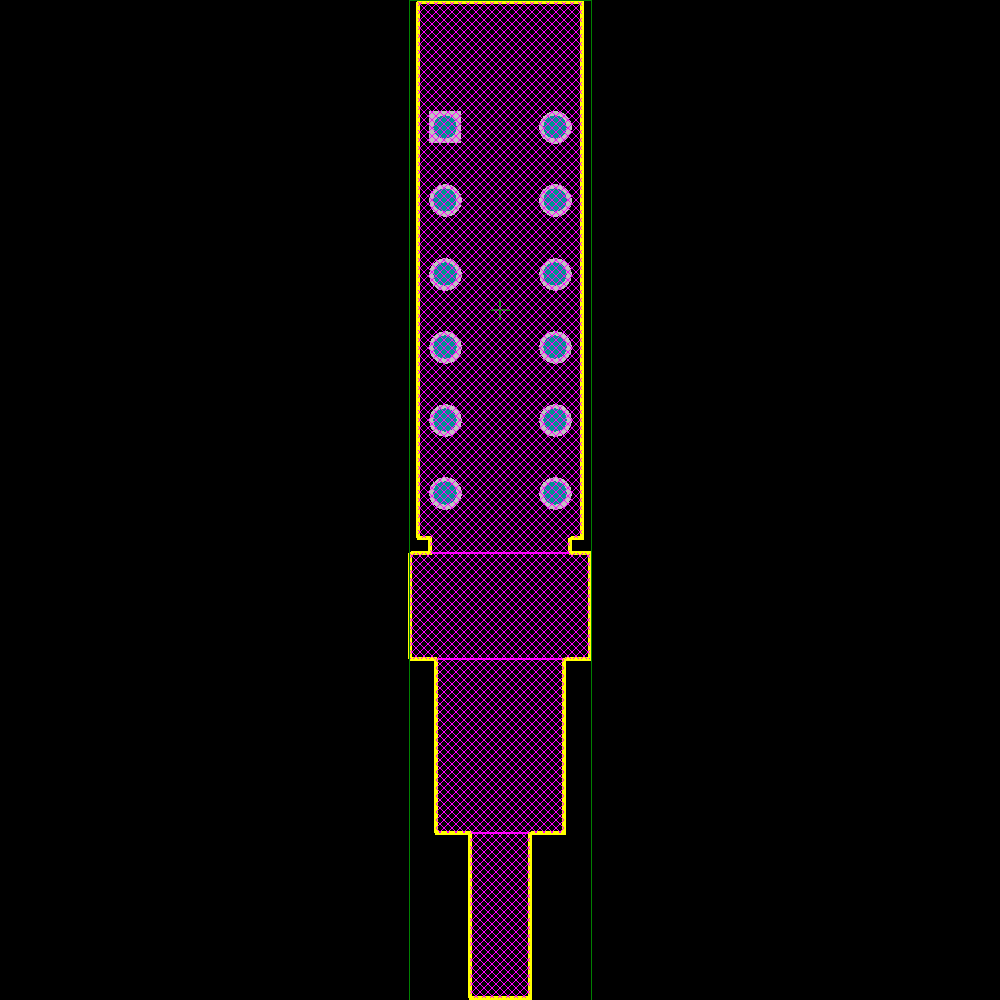

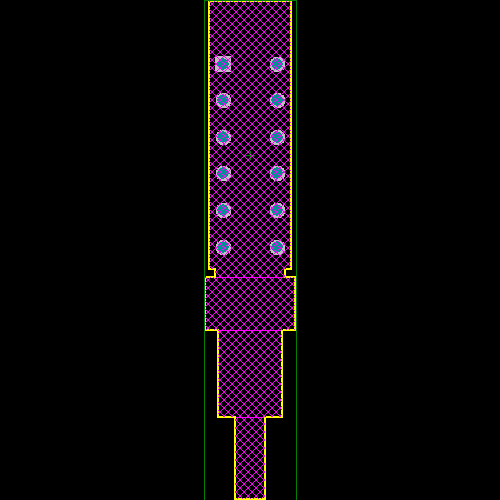

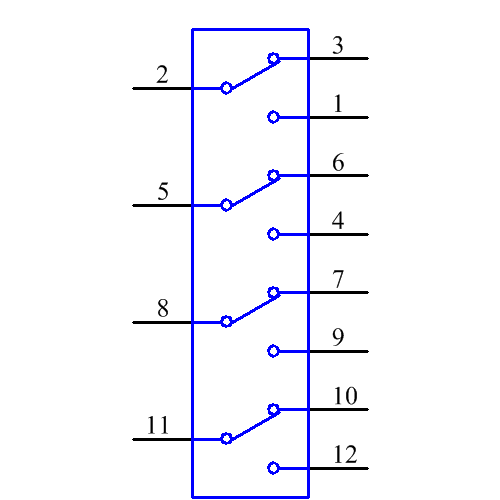

Images
