JS207011JCQNR - C&K Components
JS Series Sub-Miniature Slide Switch DP3T On-On-On Top Slide 0.3A 6VDC J-Lead Surface Mount T/R
Technical Details
| Contact Current Rating | 300mA |
| Contact Material | Copper |
| Contact Resistance | 70mΩ |
| Height | 5.5mm |
| Life (Cycles) | 5kcycles |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Positions | 3 |
| RoHS | Compliant |
| Throw Configuration | DP3T |
| Voltage Rating (DC) | 6V |
Compliance
RoHS : Unconfirmed

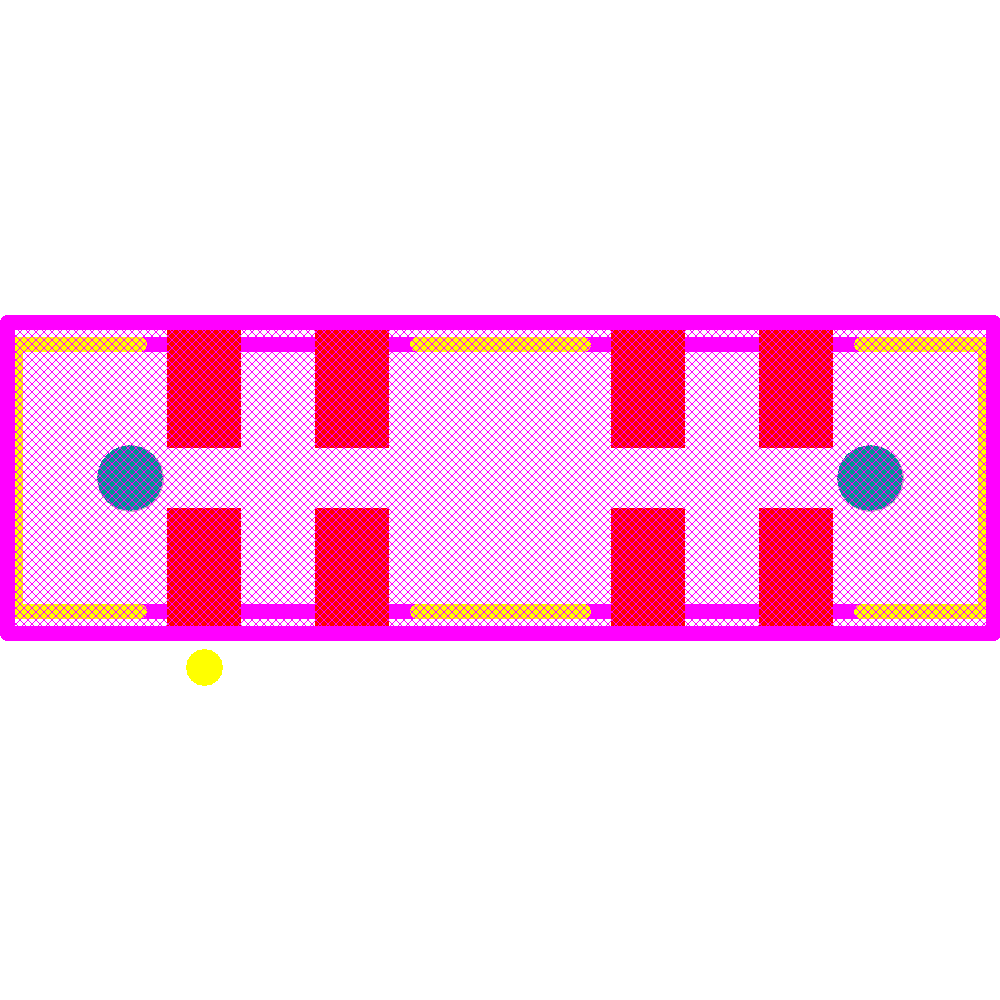

Images
TME
Authorized Distributors
Non-Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Bettlink |
HK: 3435
|
$ | 1.0778 | 0.9372 | 0.9372 | 0.8368 | 0.7821 | 0.7027 | ||
| Fly-Wing Technology |
HK: 974
|
$ | 1.4256 | 1.3728 | 1.3728 | 1.2908 | 1.0162 | 1.0162 | ||
