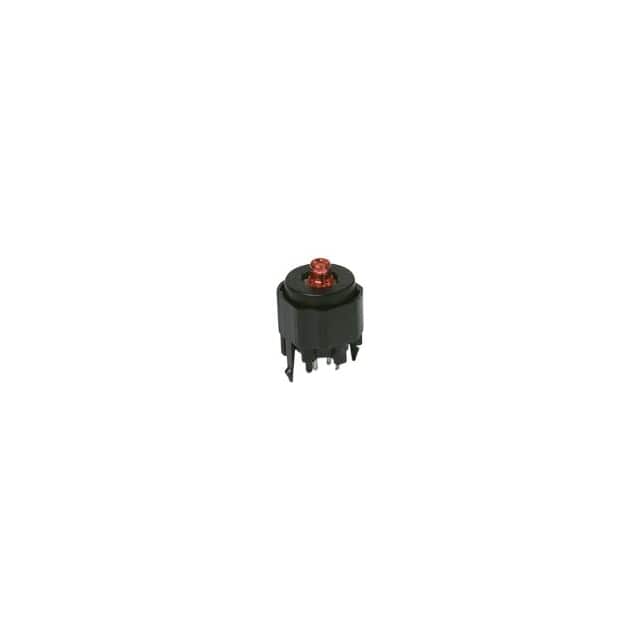

K12P BK 1.5 1.5N OD - C&K Components
Keypad Switch, 1 Switches, SPST, Momentary, 0.1A, 30VDC, 1.5N, 5 PCB Hole Cnt, Solder Terminal, Through Hole-straight
Technical Details
| Contact Resistance | 50mΩ |
| Country of Origin | France |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 1Mcycles |
| Height | 9mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.40 |
| Insulation Resistance | 10GΩ |
| Introduction Date | 2006-01-30 |
| Length | 12mm |
| Lifecycle Status | Obsolete |
| Max Current Rating | 100mA |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 30V |
| Min Operating Temperature | -40°C |
| Number of Positions | 1 |
| Operating Force | 1.5N |
| Packaging | Bulk |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Sealable | IP50 |
| Throw Configuration | SPST |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
Images
Onlinecomponents.com
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| C&K Components | Obsolete | ||
| C&K Components | Production | ||
| C&K Components | Obsolete | ||
| C&K Components | Production | ||
| C&K Components | Obsolete | ||
| C&K Components | Obsolete | ||
| C&K Components | Production | ||
| C&K Components | Production | ||
| C&K Components | Production | ||
| C&K Components | Production |
