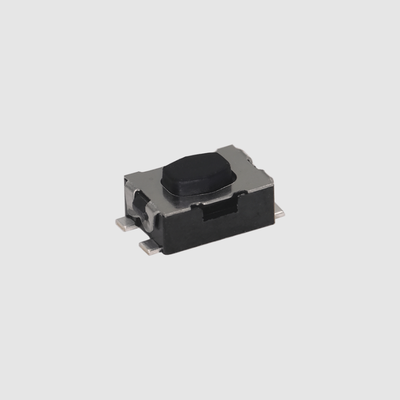

KMR631NGULCLFS - C&K Components
Switch Tactile OFF Mom SPST Button Gull Wing 0.05A 32VDC 1VA 150000Cycles 3N SMD T/R
Technical Details
| Contact Current Rating | 50mA |
| Contact Material | Silver |
| Contact Resistance | 100mΩ |
| Electrical Life | 150kcycles |
| Height | 55µm |
| Illumination Type | Non-Illuminated |
| Insulation Resistance | 1GΩ |
| Length | 165µm |
| Life (Cycles) | 150kcycles |
| Lifecycle Status | Production |
| Max Current Rating | 50mA |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 32V |
| Mechanical Life | 150kcycles |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Positions | 1 |
| Operating Force | 3.75N |
| Ratings | Dust Tight, IP67, Waterproof |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8536509065 |
| Sealable | IP67 |
| Switch Function | Off-Mom |
| Terminal Material | Silver |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| Voltage Rating (DC) | 32V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
