Actuator Length	0m
Case/Package	SMD/SMT
Contact Current Rating	50mA
Contact Material	Silver
Contact Plating	Silver
Contact Resistance	100mΩ
Current Rating	50mA
Depth	6.8mm
Export Control Classification Number (ECCN) Code	EAR99
Electrical Life	200kcycles
Height	2.5mm
Harmonized Tariff Schedule (HTS) Code	8536.50.90.40
Illumination Type	Non-Illuminated
Insulation Resistance	10MΩ
Introduction Date	2006-04-06
Lead Free	Lead Free
Length	6.2mm
Lifecycle Status	Production
Max Current Rating	50mA
Max Operating Temperature	85°C
Max Voltage Rating (DC)	32V
Mechanical Life	200kcycles
Min Operating Temperature	-40°C
Mount	Surface Mount
Number of Positions	1
Operating Force	3N
Packaging	Tape and Reel
Power Rating	1W
Radiation Hardening	No
Ratings	Dust Tight, IP67, Waterproof
REACH SVHC	Yes
RoHS	Compliant
Sealable	IP67
Switch Function	Off-Mom
Switch Travel	300µm
Terminal Material	Silver
Termination	J-Bend
Throw Configuration	SPST
Voltage Rating (DC)	32V
Width	6.2mm

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator
C&K Components	KSC121JLFS	Production
C&K Components	KT11-B2-JM-3-4LFS	Unknown
APEM	MJTP1122	Production
APEM	MJTP1122A	Obsolete
Bourns	STJW-690-RTR	Obsolete
Panasonic	EVQ-Q2H01W	Production
Panasonic	EVQ-Q2H03W	Production
Panasonic	EVQQ2K01W	Production
Panasonic	EVQ-Q2S03W	Production
Panasonic	EVQ-Q2U01W	Unknown

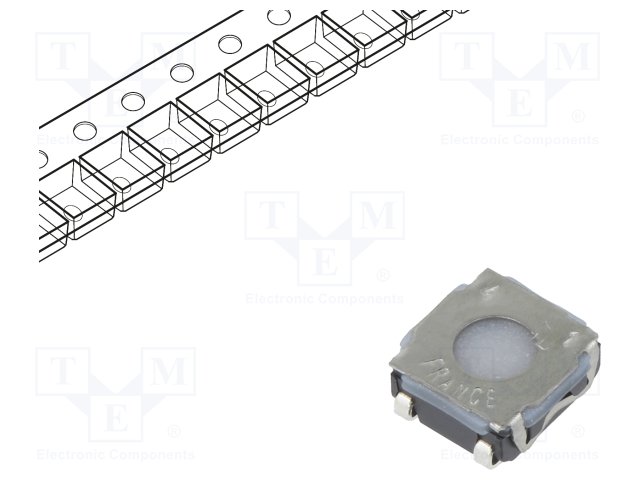

KSC141JLFS - C&K Components

Switch Tactile N.O. SPST Flush Round Button J-Bend 0.05A 32VDC 1VA 3N SMD Automotive T/R
