Electromechanical  >  Switches  >  Tactile Switches

C&K Components - PTS645SH43SMTR92LFS

PTS645SH43SMTR92LFS - C&K Components

Switch Tactile N.O SPST Round Button Gull Wing 0.05A 12VDC 100000Cycle 1.96N SMD T/R

 Datasheets

Technical Details

Actuator Material Nylon, Polyamide
Case/Package SMD/SMT
Color Black
Contact Material Bronze
Contact Plating Silver
Contact Resistance 100mΩ
Country of Origin Mainland China
Current Rating 50mA
Depth 9mm
Export Control Classification Number (ECCN) Code EAR99
Electrical Life 100kcycles
Height 3.4544mm
Harmonized Tariff Schedule (HTS) Code 8536.50.90.40
Illumination Type Non-Illuminated
Insulation Resistance 100GΩ
Introduction Date 2013-05-01
Length 6mm
Lifecycle Status Production
Max Current Rating 50mA
Max Operating Temperature 60°C
Max Voltage Rating (DC) 12V
Mechanical Life 100kcycles
Min Operating Temperature -20°C
Mount Surface Mount
Number of Positions 1
Operating Force 1.96N
Orientation Straight
REACH SVHC Yes
RoHS Compliant
Switch Function Off-Mom
Termination Gull Wing
Throw Configuration SPST
Voltage Rating (DC) 12V

Compliance

   RoHS : Unconfirmed
   REACH SVHC : Yes

Images

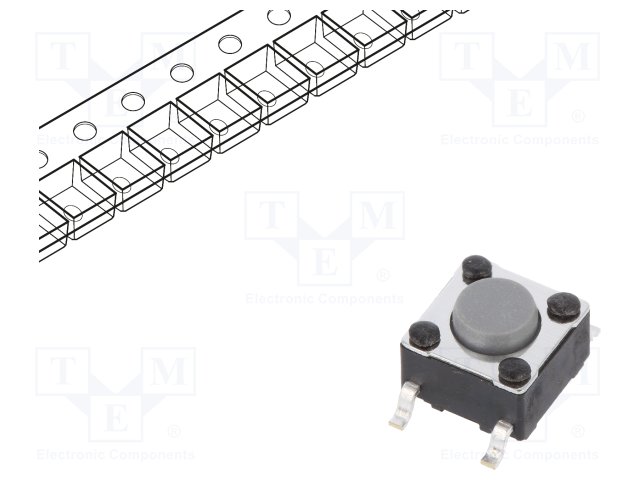

C&K Components PTS645SH43SMTR92LFS | TME

TME

Datasheets

 RS
 RS
 Verical

Lifecycle Status Indicator

   Production

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
C&K Components
PTS645SL50SMTR92LFS
Production
C&K Components
PTS645SM43SMTR92LFS
Production
C&K Components
K12SBS1.53NCLFTX
Production
C&K Components
K12SD L WH0 1.5 6N O LFTX
Production
C&K Components
K12SC L OR0 1.5 6N O LFTX
Production
C&K Components
K12SC S 1.5 5N O LFTX
Production
C&K Components
K12SD S 1.5 6N O LFTX
Production
C&K Components
K12SB L WH0 1.5 3N O LFTX
Production
C&K Components
K12SBS1.55NOLFTX
Production
C&K Components
K12SB L WH0 1.5 9N O LFTX
Production

See more alternatives See less alternatives

Authorized Distributors

Distributor SKU Stock USD 1 10 50 100 1000 10000 Buy
RS
1769532
DE: 799
 $ 0.3082 0.3082 0.3082 0.3082
 Historical Pricing  Historical Stock Levels
Quantity
Location
RS
1769458
DE: 0
 $ 0.2033 0.2033 0.2033 0.2033 0.2033 0.2033
 Historical Pricing  Historical Stock Levels
Quantity
Location
Verical
PTS645SH43SMTR 92 LFS
US: 5661
 $ 0.1491 0.1408
 Historical Pricing  Historical Stock Levels
Quantity
Location
Onlinecomponents.com
PTS645SH43SMTR92LFS
US: 253159
 $ 0.2016 0.1539
 Historical Pricing  Historical Stock Levels
Quantity
Location
TME
PTS645SH43SMTR92
PL: 4461
 $ 0.3205 0.2318 0.2318 0.2318 0.2318 0.2318
 Historical Pricing  Historical Stock Levels
Quantity
Location
TME
PTS645SH43SMTR92LF
PL: 0
 $ 0.1787
 Historical Pricing  Historical Stock Levels
Quantity
Location
DigiKey
CKN11907CT-ND
DE: 137217
 $ 0.3821 0.3254 0.3821 0.2723 0.2382 0.2382
 Historical Pricing  Historical Stock Levels
Quantity
Location
DigiKey
CKN11907DKR-ND
DE: 137217
 $ 0.3821 0.3254 0.3821 0.2723 0.2382 0.2382
 Historical Pricing  Historical Stock Levels
Quantity
Location
DigiKey
CKN11907TR-ND
DE: 137000
 $ 0.2249 0.1886
 Historical Pricing  Historical Stock Levels
Quantity
Location
Future Electronics
2034065
CA: 66000
 $ 0.148 0.142
 Historical Pricing  Historical Stock Levels
Quantity
Location
Future Electronics
4204284
CA: 0
 $ 0.148 0.142
 Historical Pricing  Historical Stock Levels
Quantity
Location
Farnell
3275853
DE: 5661
 $ 0.45 0.45 0.45 0.45 0.45 0.45
 Historical Pricing  Historical Stock Levels
Quantity
Location
Mouser
611-PTS645SH43SMTR92
US: 9618
 $ 0.36 0.308 0.289 0.258 0.213 0.187
 Historical Pricing  Historical Stock Levels
Quantity
Location
Heilind Europe
PTS645SH43SMTR 92 LFS
EU: 0
 $ 0.1805
 Historical Pricing  Historical Stock Levels
Quantity
Location
TTI
PTS645SH43SMTR92LFS
US: 0
 $ 0.162
 Historical Pricing  Historical Stock Levels
Quantity
Location
Sager Electronics
PTS645SH43SMTR92LFS
US: 0
 $ 0.1693 0.1529
 Historical Pricing  Historical Stock Levels
Quantity
Location
TTI Europe
PTS645SH43SMTR92LFS
DE: 0
 $ 0.1714
 Historical Pricing  Historical Stock Levels
Quantity
Location
TTI Asia
PTS645SH43SMTR92LFS
SG: -3
 $ 0.162 0.154
 Historical Pricing  Historical Stock Levels
Quantity
Location
element14 APAC
3275853
SG: 5661
 $ 0.3301 0.3301 0.3081 0.2755 0.2292 0.2292
 Historical Pricing  Historical Stock Levels
Quantity
Location
Newark
PTS645SH43SMTR 92 LFS
US: 5661
 $ 0.102 0.102 0.102 0.102 0.102 0.102
 Historical Pricing  Historical Stock Levels
Quantity
Location
Newark
PTS645SH43SMTR92LFS
US: 0
 $ 0.296 0.276
 Historical Pricing  Historical Stock Levels
Quantity
Location

Non-Authorized Distributors

Distributor SKU Stock USD 1 10 50 100 1000 10000 Buy
UnikeyIC
PTS645SH43SMTR 92 LFS
SG: 799
 $ 0.30 0.30 0.30 0.30
 Historical Pricing  Historical Stock Levels
Quantity
Location
Fly-Wing Technology
PTS645SH43SMTR92 LFS
HK: 207038
 $ 0.308 0.2966 0.2966 0.2791 0.2198 0.2198
 Historical Pricing  Historical Stock Levels
Quantity
Location
Bettlink
PTS645SH43SMTR92 LFS
HK: 99073
 $ 0.3009 0.2229 0.2229 0.1938 0.1811 0.1627
 Historical Pricing  Historical Stock Levels
Quantity
Location
Quest
PTS645SH43SMTR92LFS
US: 532
 $ 0.448 0.336 0.336 0.28 0.28
 Historical Pricing  Historical Stock Levels
Quantity
Location
Sourcengine
PTS645SH43SMTR92LFS
US: 66000
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
