PTS645SK43SMTR92LFS - C&K Components
Switch Tactile N.O SPST Round Button Gull Wing 0.05A 12VDC 100000Cycle 2.55N SMD T/R
Technical Details
| Actuator Material | Nylon, Polyamide |
| Case/Package | SMD/SMT |
| Color | Black |
| Contact Current Rating | 50mA |
| Contact Material | Bronze |
| Contact Plating | Silver |
| Contact Resistance | 100mΩ |
| Country of Origin | Mainland China |
| Current Rating | 50mA |
| Depth | 9mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 100kcycles |
| Height | 3.45mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.40 |
| Illumination Type | Illuminated, Non-Illuminated |
| Insulation Resistance | 100GΩ |
| Introduction Date | 2013-05-01 |
| Lead Free | Lead Free |
| Length | 6mm |
| Lifecycle Status | Production |
| Max Current Rating | 50mA |
| Max Operating Temperature | 60°C |
| Max Voltage Rating (DC) | 12V |
| Mechanical Life | 100kcycles |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Number of Positions | 1 |
| Operating Force | 2.55N |
| Orientation | Straight |
| Packaging | Tape & Reel (TR) |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Switch Function | Off-Mom |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| Voltage Rating (DC) | 12V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

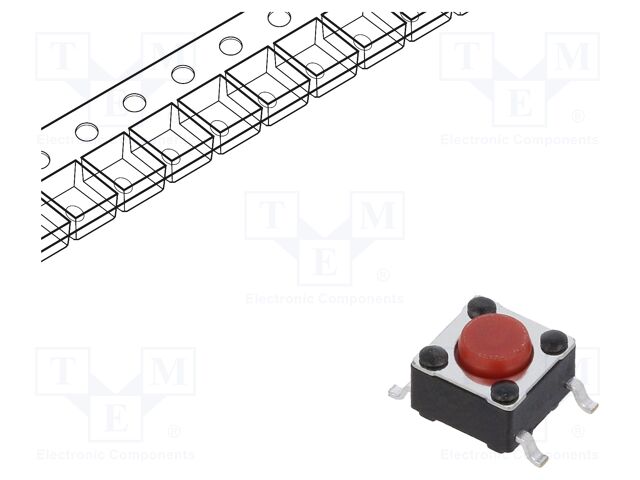

Images
