Technical Details
| Actuator Length | 5.461mm |
| Actuator Material | Polyester, Thermoplastic |
| Contact Current Rating | 20mA |
| Contact Plating | Gold |
| Contact Resistance | 20mΩ |
| Contact Voltage Rating (AC) | 20V |
| Electrical Life | 60kcycles |
| Height | 5.08mm |
| Housing Material | Stainless Steel |
| Insulation Resistance | 1GΩ |
| Lead Free | Lead Free |
| Length | 8.13mm |
| Life (Cycles) | 60kcycles |
| Lifecycle Status | Production |
| Max Current Rating | 20mA |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (AC) | 20V |
| Max Voltage Rating (DC) | 20V |
| Min Operating Temperature | -35°C |
| Mount | Through Hole |
| Orientation | Right Angle |
| Packaging | Bulk |
| Power Rating | 400mW |
| REACH SVHC | No |
| RoHS | Compliant |
| Sealable | EPOXY TERMINAL SEALED |
| Switch Function | Off-Mom |
| Termination | PC Pins |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 20V |
| Voltage Rating (DC) | 20V |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

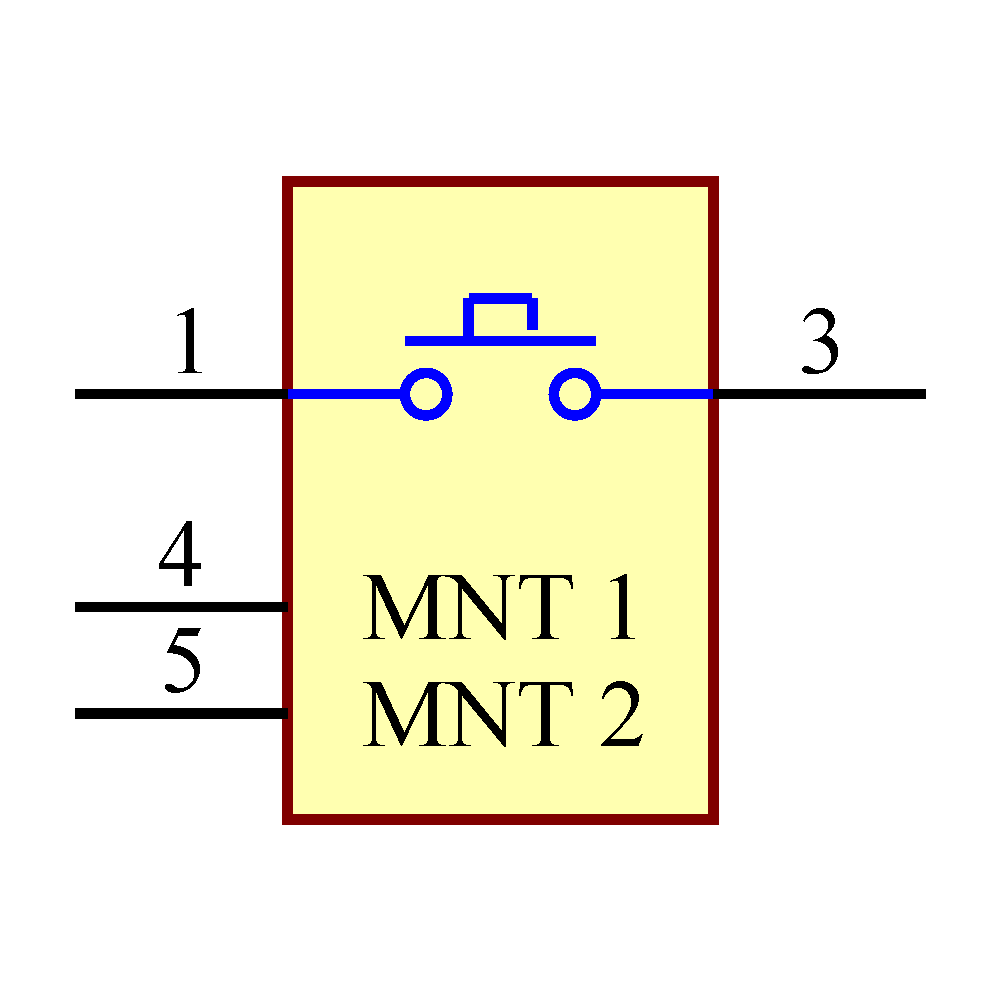

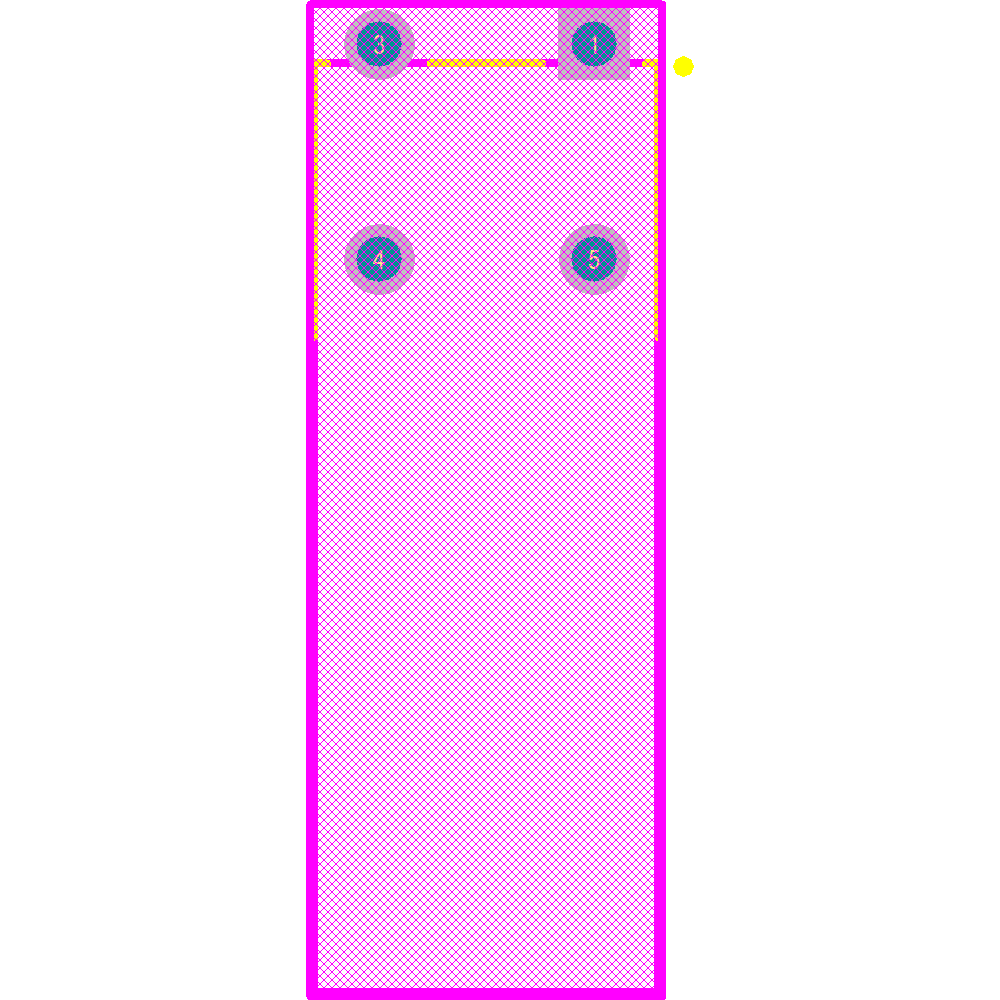

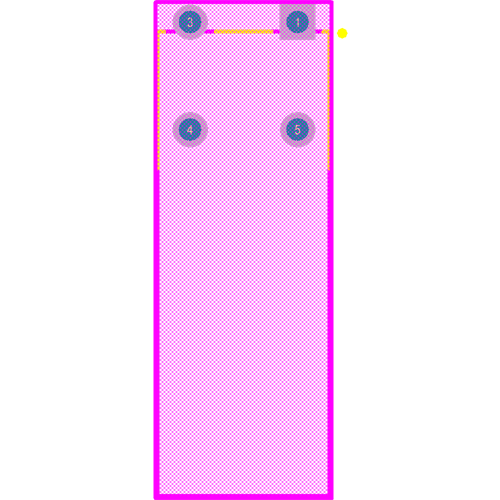

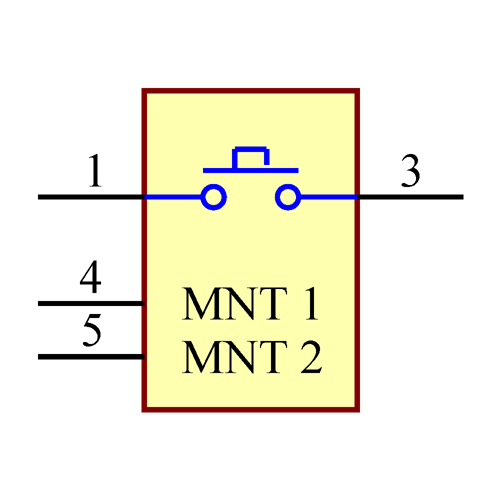

Images
Onlinecomponents.com
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| C&K Components | Production | ||
| C&K Components | Production | ||
| C&K Components | Production | ||
| C&K Components | Production | ||
| C&K Components | Production | ||
| C&K Components | Production | ||
| C&K Components | Production | ||
| C&K Components | Production | ||
| C&K Components | Production | ||
| C&K Components | Production |
