PS2501-1-A - California Eastern Laboratories

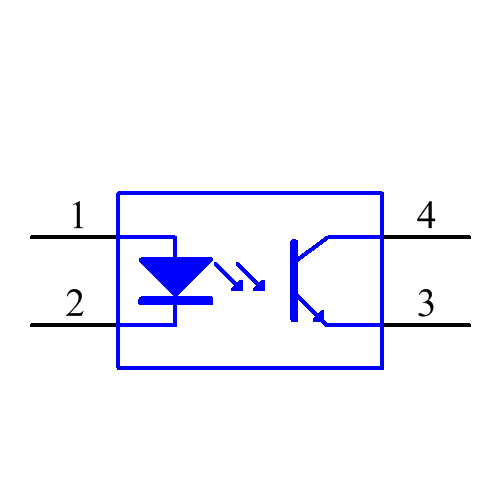

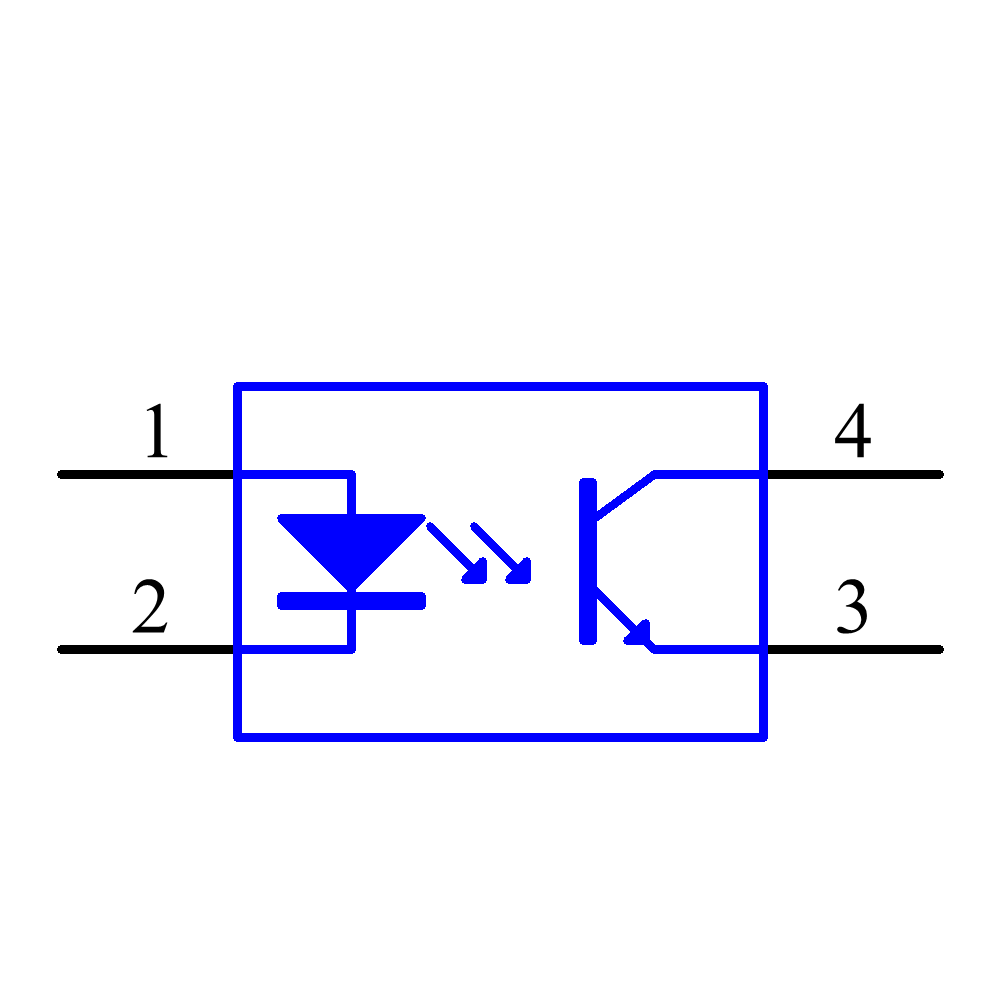

Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin PDIP Magazine
Technical Details
| Case/Package | PDIP |
| Collector Emitter Breakdown Voltage | 80V |
| Collector Emitter Saturation Voltage | 300mV |
| Collector Emitter Voltage (VCEO) | 80V |
| Current Transfer Ratio | 300% |
| Dark Current | 100nA |
| Forward Current | 80mA |
| Forward Voltage | 1.4V |
| Isolation Voltage | 5000Vrms |
| Lead Free | Lead Free |
| Lifecycle Status | Obsolete |
| Max Operating Temperature | 100°C |
| Max Output Voltage | 80V |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 4 |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Breakdown Voltage | 6V |
| RoHS | Compliant |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
