CMSZ5228B - Central Semiconductor
Zener Diode, 3.9V V(Z), 5%, 0.275W, Silicon, Unidirectional, HALOGEN FREE, SUPERMINI-3
Technical Details
| Case/Package | SOT-323 |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Impedance | 23Ω |
| Introduction Date | 1999-08-11 |
| Lifecycle Status | Production |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 275mW |
| Max Reverse Leakage Current | 10µA |
| Min Operating Temperature | -65°C |
| Number of Elements | 1 |
| Number of Terminals | 3 |
| Polarity | Unidirectional |
| REACH SVHC | No |
| Reference Voltage | 3.9V |
| RoHS | Non-Compliant |
| Voltage Tolerance | 5% |
| Zener Current | 20mA |
| Zener Voltage | 3.9V |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

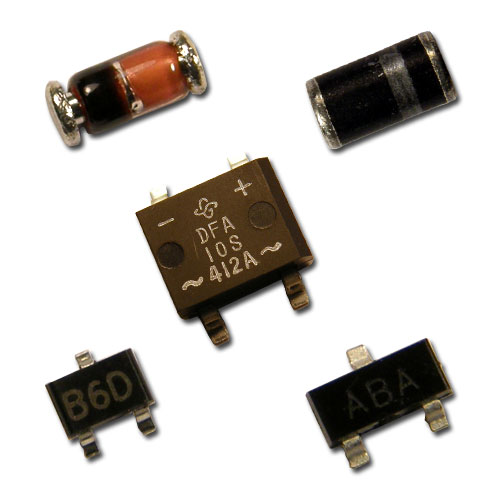

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Central Semiconductor | Unknown | ||
| Diodes Inc. | Obsolete | ||
| Diodes Inc. | Obsolete | ||
| Diodes Inc. | Production | ||
| Nexperia | Production | ||
| Nexperia | Production | ||
| Nexperia | Production | ||
| Nexperia | Production | ||
| onsemi | Obsolete | ||
| Nexperia | Production |
