MX1A-11NW - Cherry
Switch Key N.O. SPST 0.01A 12VAC 12VDC 0.58N PC Pins 50000000Cycles Thru-Hole
Technical Details
| Actuator Length | 3.6mm |
| Case/Package | Module |
| Contact Current Rating | 10mA |
| Contact Material | Gold, Silver |
| Contact Plating | Gold |
| Contact Resistance | 200mΩ |
| Current Rating | 10mA |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 50Mcycles |
| Flammability Rating | UL94 HB |
| Height | 11.6mm |
| Housing Material | Thermoplastic |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.40 |
| Illumination Type | Illuminated |
| Insulation Resistance | 100MΩ |
| Introduction Date | 2000-09-28 |
| Lead Free | Lead Free |
| Length | 15.6mm |
| Max Current Rating | 10mA |
| Max Operating Temperature | 70°C |
| Max Voltage Rating (AC) | 12V |
| Max Voltage Rating (DC) | 12V |
| Min Operating Temperature | -10°C |
| Mount | PCB, Through Hole |
| Number of Pins | 2 |
| Number of Positions | 1 |
| Number of Terminals | 2 |
| Operating Force | 780mN |
| Packaging | Bulk |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Row Spacing | 6.35mm |
| Switch Function | Off-Mom |
| Switching Current | 10mA |
| Terminal Pitch | 2.54mm |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 12V |
| Voltage Rating (DC) | 12V |
| Width | 15.6mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

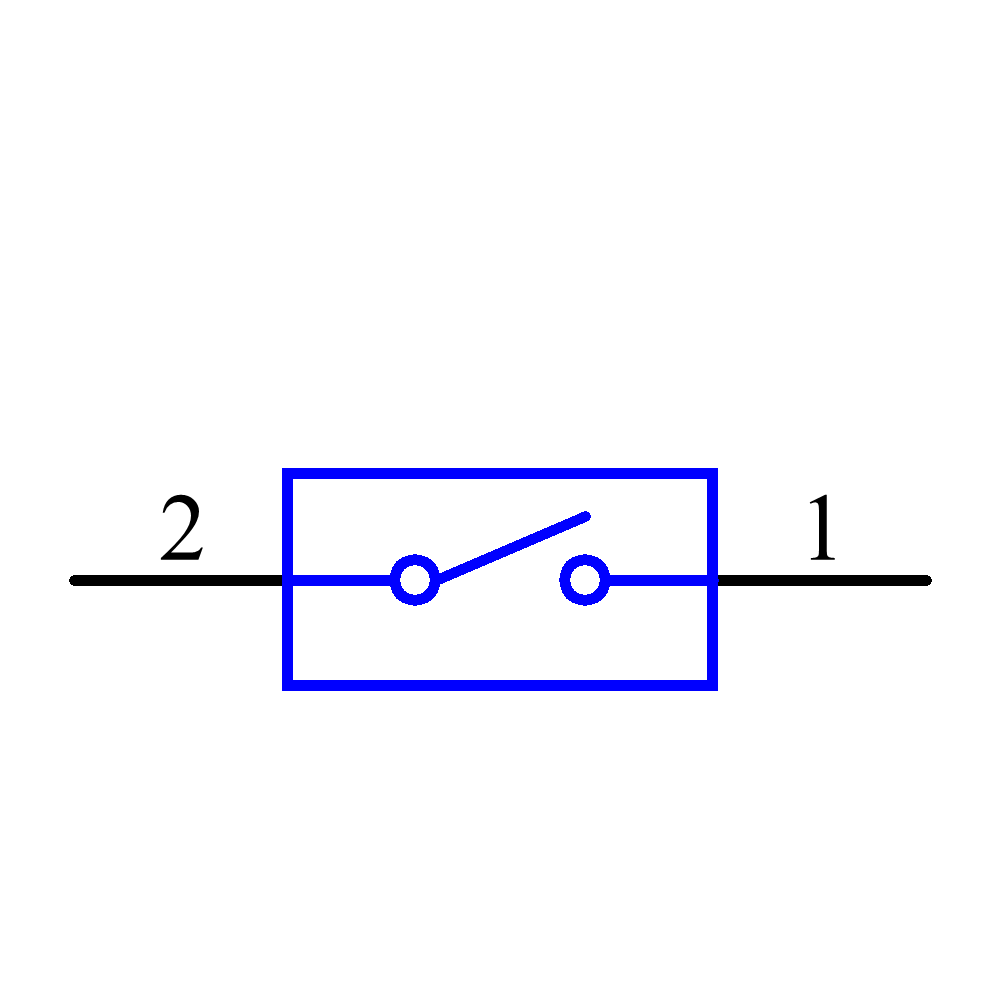

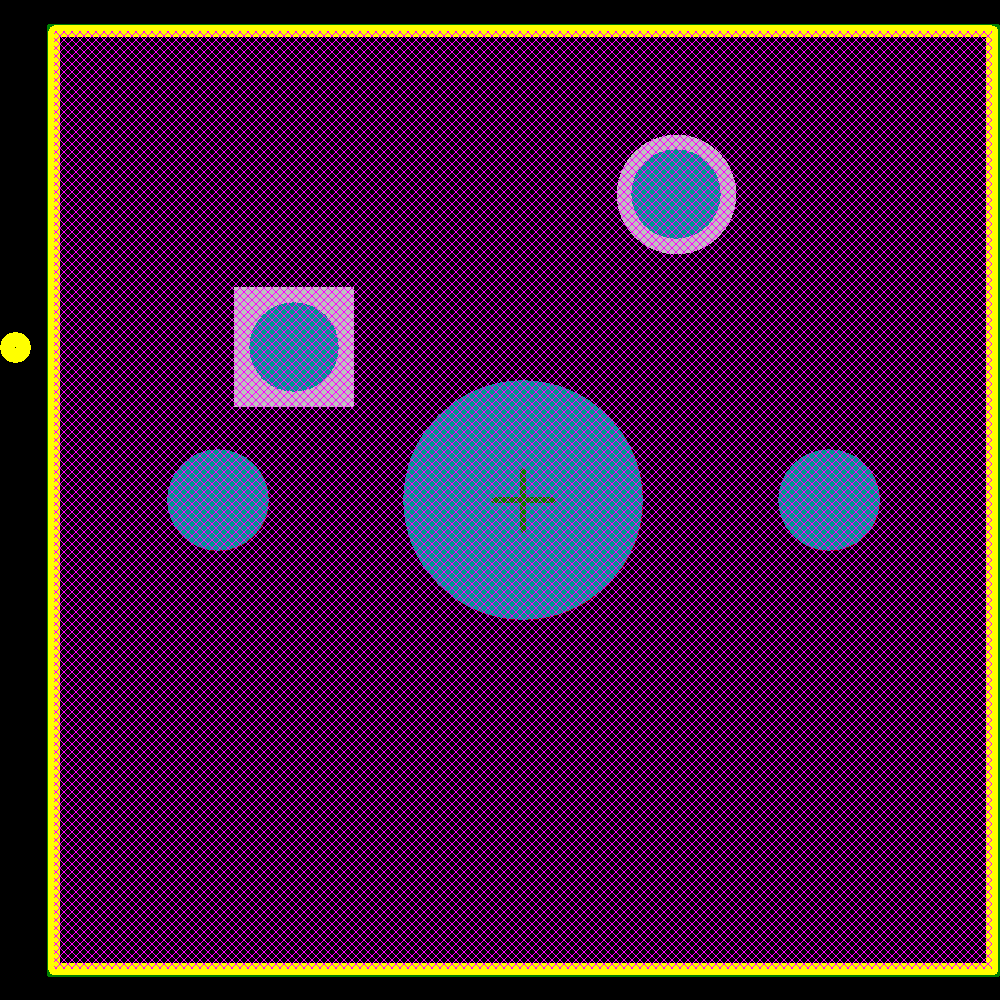

Images
