Passive Components > Capacitors > Ceramic Capacitors

CL05C101JB5NNNC - Samsung

Cap Ceramic 100pF 50V C0G 5% Pad SMD 0402 125°C T/R

Technical Details

Capacitance	100pF
Case Code (Imperial)	0402
Case Code (Metric)	1005
Case/Package	0402
Construction	Flat
Depth	0.5mm
Dielectric	C0G
Height	0.5mm
Length	1mm
Material	Ceramic
Max Operating Temperature	125°C
Min Operating Temperature	-55°C
Mount	Surface Mount
Package Quantity	1
Packaging	Tape and Reel
Radiation Hardening	No
RoHS Compliant	Yes
Series	CL
Temperature Coefficient	300ppm/°C
Thickness	0.022inch
Tolerance	5%
Voltage	50V
Voltage Rating	50V
Voltage Rating (DC)	50V
Width	0.02inch

Compliance

RoHS : Compliant

Radiation Hardening : No

Images

Samsung CL05C101JB5NNNC | Arrow Electronics

Arrow Electronics

Samsung CL05C101JB5NNNC | Verical

Verical

Datasheets

Verical

CL05C101JB5NNNC datasheet (pdf, 76.8 KB)

Lifecycle Status Indicator

Volume Production

Loading indicators

Symbol

CL05C101JB5NNNC Symbol - Samsung

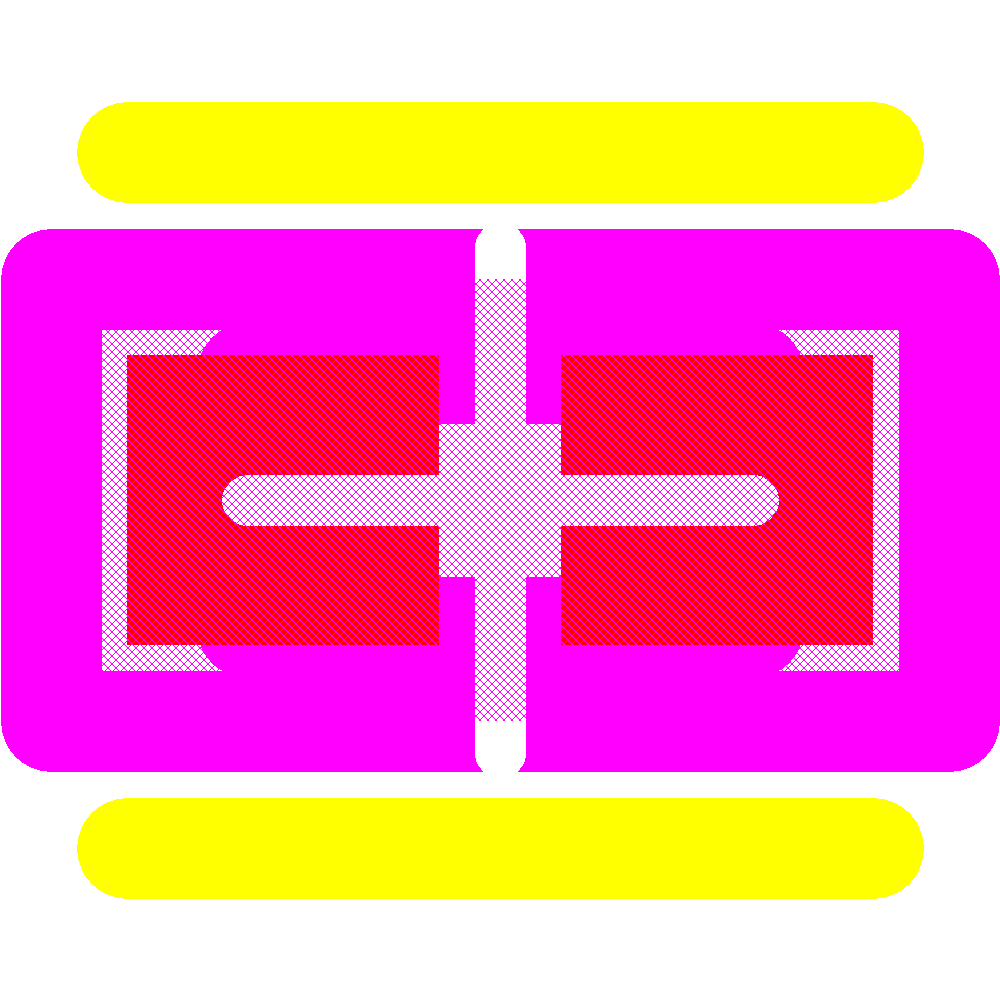

Footprint

CL05C101JB5NNNC Footprint - Samsung

CL05C101JB5NNNC Footprint - Samsung

CL05C101JB5NNNC Footprint - Samsung

CL05C101JB5NNNC Footprint - Samsung

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
TDK	C1005C0G1H101J	Not Recommended for New Design
Murata	GCM1555C1H101JZ13D	Obsolete
KEMET	C0402H101J5GACTU	Volume Production
Kyocera AVX	LD025A101JAB2A	Volume Production
Murata	GRM1555C1H101FZ01J	Obsolete
KEMET	C0402C101J1GACTU	Volume Production
KEMET	C0402C101J5GALTU	Volume Production
KEMET	C0402C101G1GACTU	Volume Production
KEMET	C0402T101F5GACTU	Volume Production
Kyocera AVX	04025A101JAQ2A	Volume Production

See more alternatives See less alternatives

Related Parts

See more related parts See less related parts

Authorized Distributors

Distributor

SKU

History

Stock

USD

1

10

50

100

1000

10000

Buy

Rutronik

DE: 18,380,000

$

0.0015

Digikey

US: 3,718,056

$

0.08

0.004

0.004

0.0032

0.0032

0.0032

Digikey

US: 3,718,056

$

0.08

0.004

0.004

0.0032

0.0032

0.0032

Digikey

US: 3,717,590

$

0.0024

Arrow Electronics

CL05C101JB5NNNC

US: 7,530,000

$

Mouser

187-CL05C101JB5NNNC

US: 321,059

$

0.10

0.005

0.005

0.004

0.004

0.003

Future Electronics

AMER: 1,960,000

$

0.0021

Newark

US: 33,556

$

0.003

0.003

0.003

0.003

0.003

0.003

Newark

US: 0

$

TTI Europe

CL05C101JB5NNNC

11: 3,870,000

$

0.0023

Element14

SG: 68,107

$

0.0091

0.0091

0.0083

0.0076

0.0053

Element14

SG: 70,000

$

0.0046

Element14

SG: 68,107

$

0.0076

0.0053

Farnell

GB: 50,797

$

0.0078

0.0078

0.0064

0.0049

0.0046

Farnell

GB: 70,000

$

0.0033

Farnell

GB: 50,797

$

0.0049

0.0046

Associate Distributors

Distributor

SKU

Stock

USD

1

10

50

100

1000

10000

Buy

Lucentia Tech

CL05C101JB5NNNC

US: 3,050,242

$

0.0017

0.0016

0.0016

0.0015

1.08

1.08

Maritex

CMC0402-100P-JN50-S

PL: 4,670

$

0.081

0.0101

0.0071

0.006

0.0041

0.0018

IBS Electronics

CL05C101JB5NNNC

US: 4,480,000

$

0.0018

Ampacity Systems

CL05C101JB5NNNC

MY: 3,050,176

$

0.002

0.002

0.002

0.002

0.002

0.002

Aztech

CL05C101JB5NNNC

IT: 205

$

0.439

0.439

0.439

0.439

0.439

0.439

LCSC

CN: 216,200

$

0.0027

0.0021

0.0017

SHENGYU ELECTRONICS

CL05C101JB5NNNC

CN: 19,629

$

0.078

0.0764

0.0764

0.0741

0.0718

0.0686

Chipdigger

CL05C101JB5NNNC

CN: 16,536

$

0.075

0.0735

0.0735

0.0712

0.069

0.066

YIC International

CL05C101JB5NNNC

HK: 3,130

$

0.002

0.002

0.002

0.002

0.002

0.002

Sourcengine

CL05C101JB5NNNC

US: 1,600,000

$
