742C083470JP - CTS Components
Res Thick Film Array 47 Ohm 5% 0.25W(1/4W) ±200ppm/C ISOL 8-Pin 1206(4 X 0603) Concave SMD Medical T/R
Technical Details
| Case/Package | 1206 |
| Circuit Type | Isolated |
| Composition | Thick Film |
| Contact Plating | Tin |
| Country of Origin | Japan, Taiwan |
| Depth | 1.6mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 525µm |
| Harmonized Tariff Schedule (HTS) Code | 8533.21.00.20 |
| Introduction Date | 2005-03-22 |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Circuits | 4 |
| Number of Elements | 1 |
| Number of Pins | 8 |
| Number of Resistors | 4 |
| Number of Terminals | 8 |
| Packaging | Tape and Reel |
| Power Dissipation | 252mW |
| Power Per Element | 63mW |
| Power Rating | 252mW |
| REACH SVHC | Yes |
| Resistance | 47Ω |
| RoHS | Compliant |
| Temperature Coefficient | 200ppm/°C |
| Terminal Pitch | 800µm |
| Termination | Concave |
| Tolerance | 5% |
| Voltage Rating | 50V |
| Width | 3.2mm |
| Working Voltage | 50V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

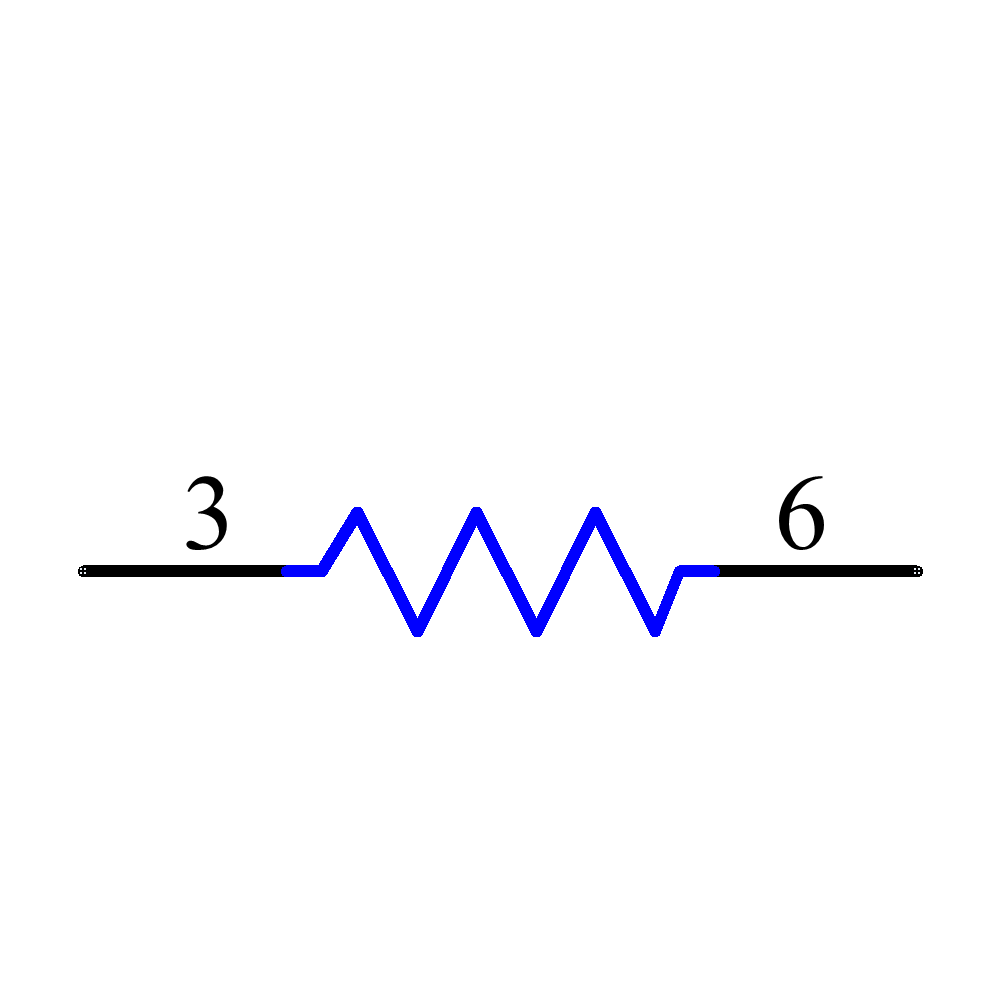

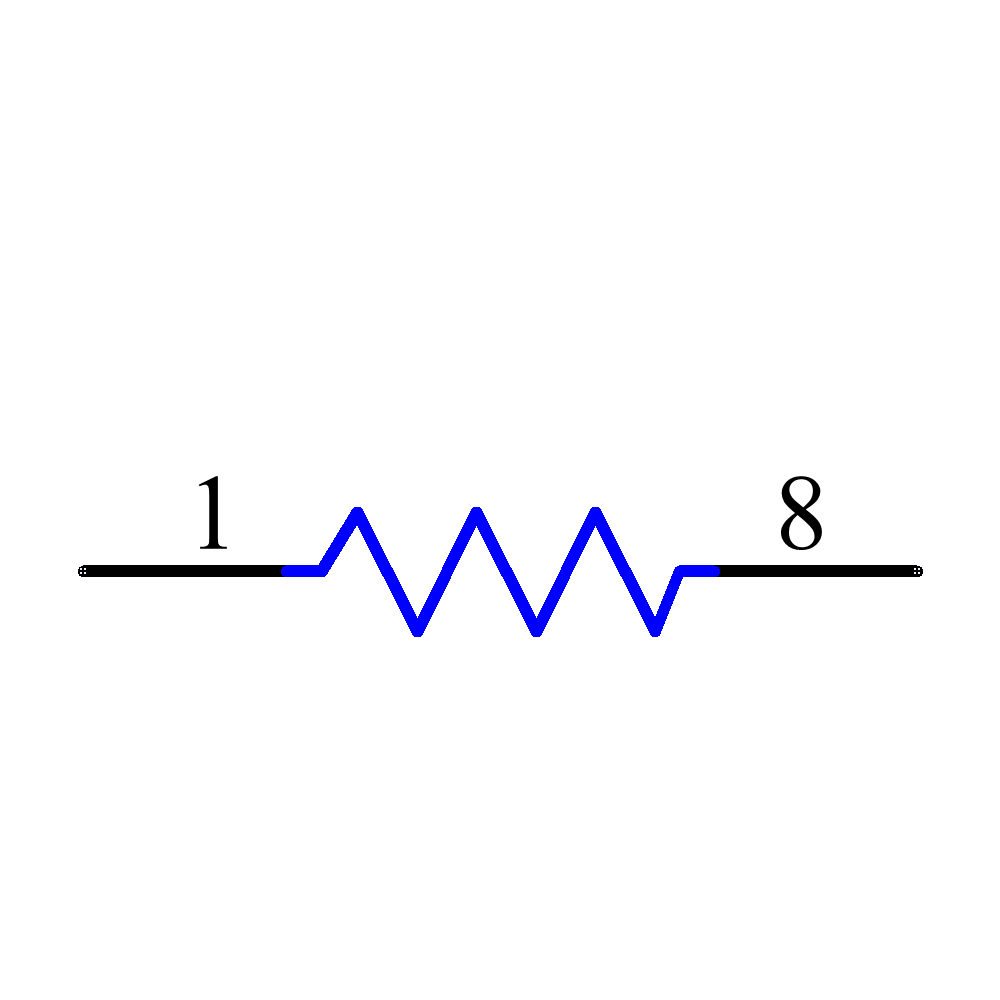

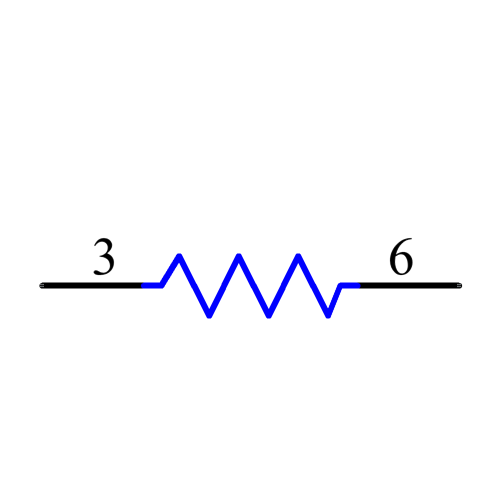

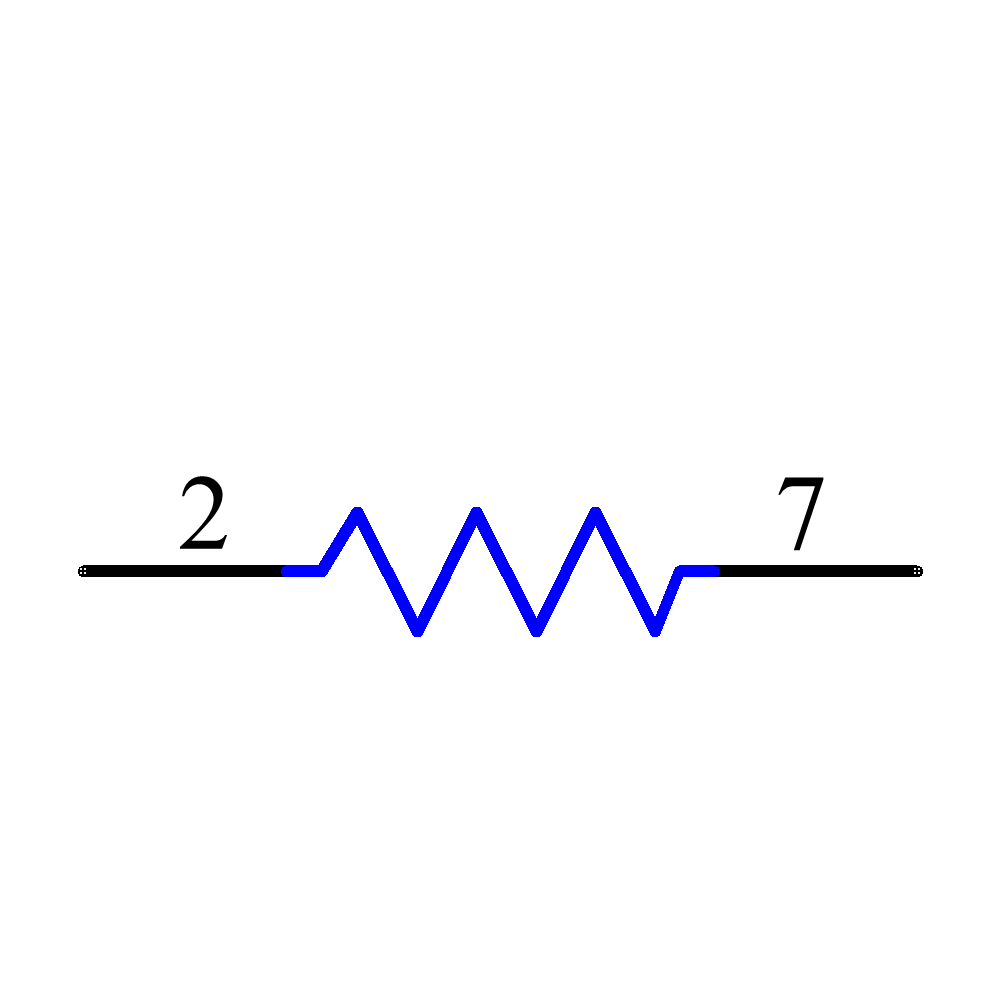

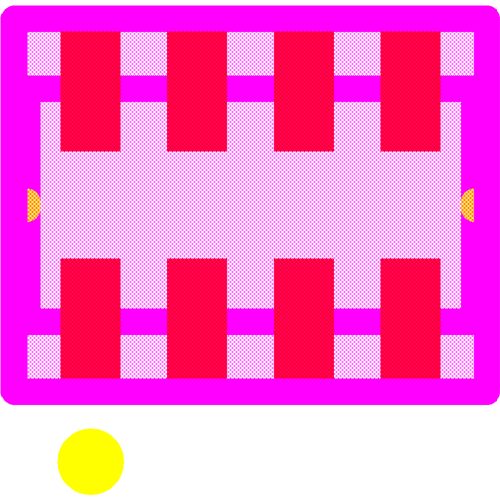

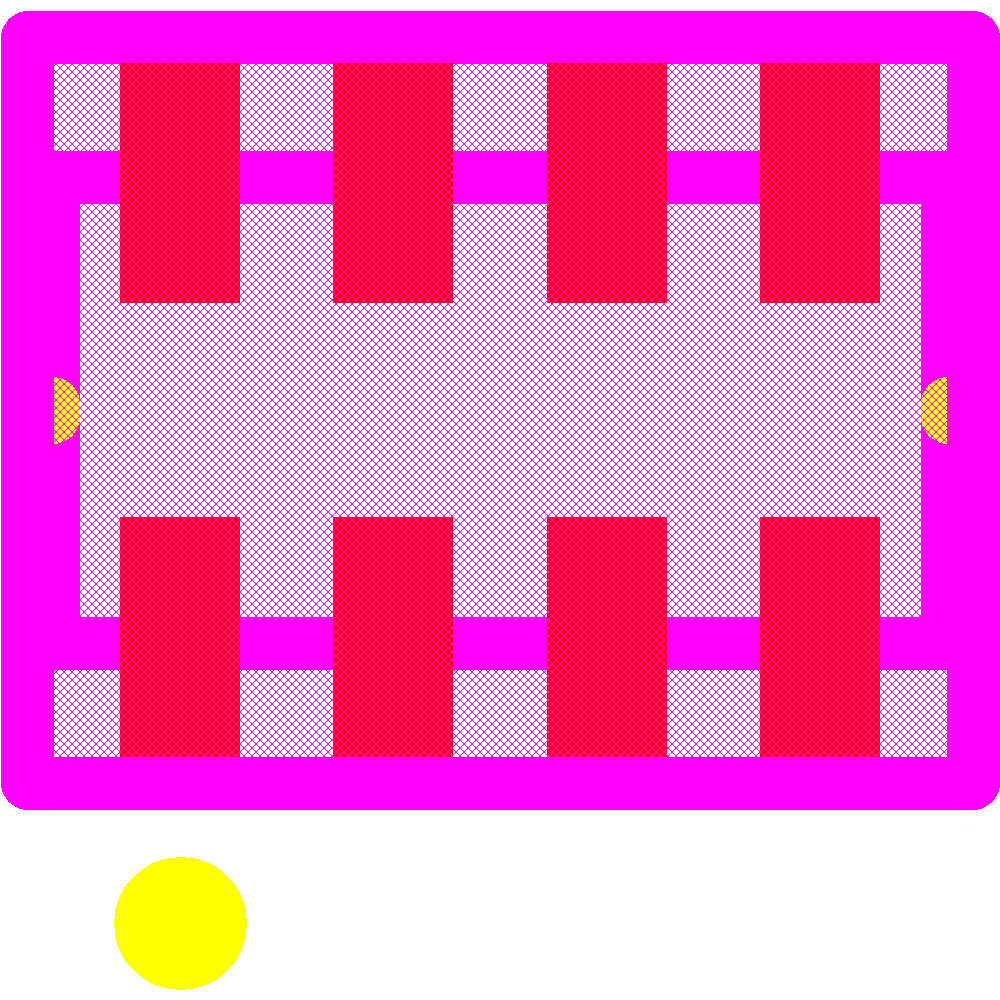

Images
Future Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| CTS Components | Obsolete | ||
| Panasonic | Production | ||
| Stackpole Electronics | Production | ||
| ROHM | Obsolete | ||
| ROHM | Production | ||
| Stackpole Electronics | Obsolete | ||
| Stackpole Electronics | Production | ||
| Vishay | Obsolete | ||
| KOA Speer | Obsolete | ||
| BI Technologies | Production |
