742C083472JP - CTS Components

Res Thick Film Array 4.7K Ohm 5% 0.25W(1/4W) ±200ppm/C ISOL 8-Pin 1206(4 X 0603) Concave SMD Medical T/R

Case/Package	Molded
Case Code (Imperial)	1206
Case Code (Metric)	3216
China RoHS	Non-Compliant
Circuit Type	Isolated
Composition	Thick Film
Contact Plating	Tin
Country of Origin	Japan, Taiwan
Depth	1.6mm
Export Control Classification Number (ECCN) Code	EAR99
Height	525µm
Harmonized Tariff Schedule (HTS) Code	8533.21.00.20
Introduction Date	2005-03-22
Lead Free	Lead Free
Length	1.6mm
Lifecycle Status	Production
Max Operating Temperature	125°C
Military Standard	Not
Min Operating Temperature	-55°C
Mount	Surface Mount
Number of Circuits	4
Number of Elements	1
Number of Pins	8
Number of Resistors	4
Number of Terminals	8
Packaging	Digi-Reel®
Power Dissipation	252mW
Power Per Element	62.5mW
Power Rating	252mW
Radiation Hardening	No
REACH SVHC	Yes
Resistance	4.7kΩ
RoHS	Compliant
Temperature Coefficient	200ppm/°C
Terminal Pitch	800µm
Termination	Concave
Tolerance	5%
Voltage Rating	50V
Width	3.2mm
Working Voltage	50V

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

CTS Components 742C083472JP | Master Electronics

Master Electronics

Production

Symbol

‹ ›

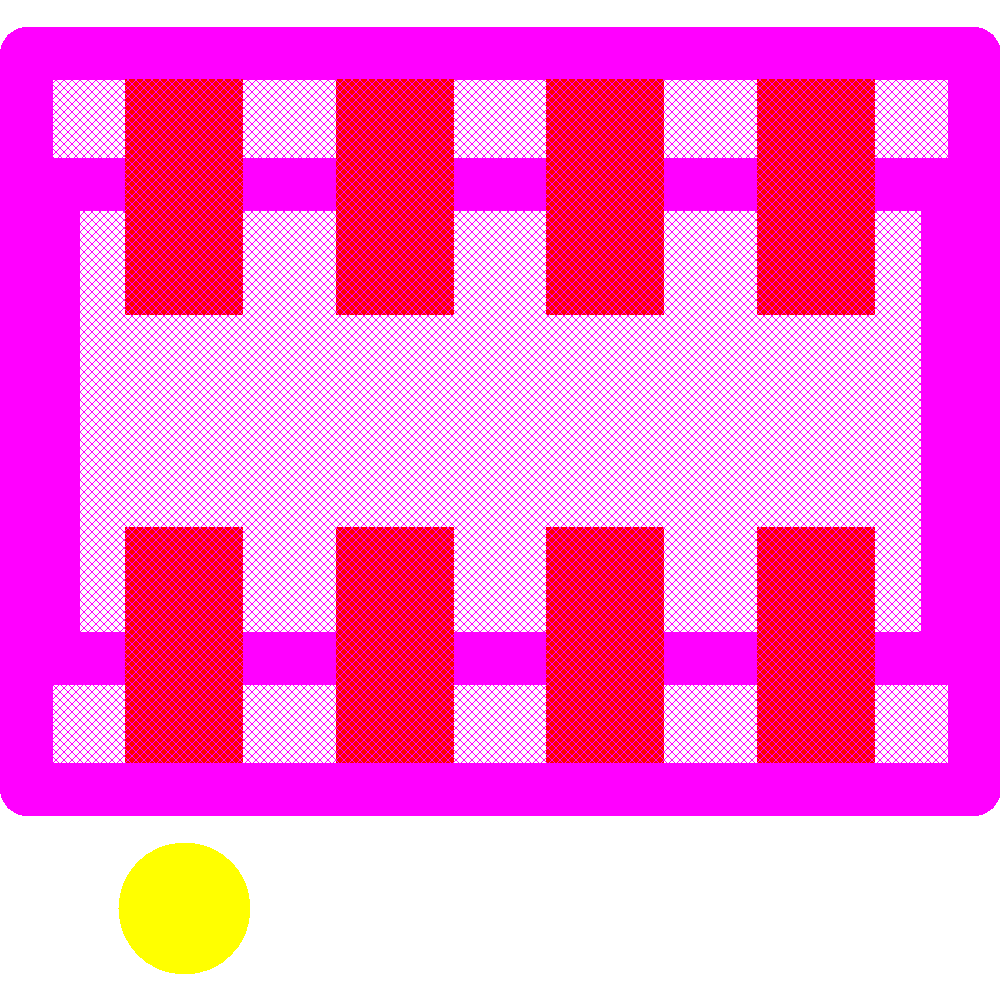

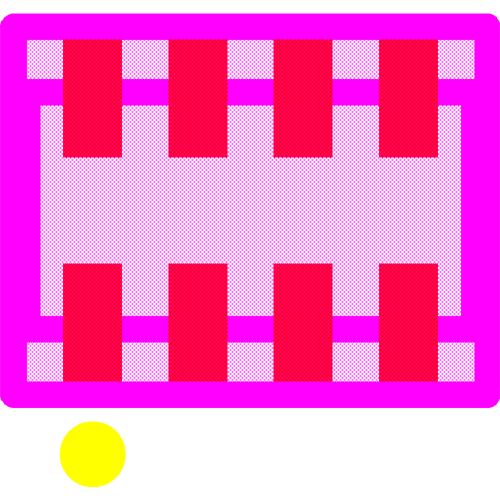

Footprint

‹ ›

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator
KOA Speer	CN1J4ATTD472J	Obsolete
CTS Components	742X083472JP	Production
KOA Speer	CN1J4T472J	Obsolete
CTS Components	742X083472J	Obsolete
Panasonic	EXB-V8V472JV	Production
KOA Speer	CN1J4TE472J	Obsolete
CTS Components	742C083472J	Obsolete
Stackpole Electronics	RAVF164DJT4K70	Production
ROHM	MNR14ERAPJ472	Obsolete
ROHM	MNR14E0APF4701	Unknown
