Technical Details
| Approvals | EN |
| Body Material | Plastic |
| Case/Package | SMD/SMT |
| Efficiency | 79% |
| Features | SCP |
| Height | 7.366mm |
| Height - Seated (Max) | 7.95mm |
| Isolation Voltage | 1500Vrms |
| Lead Free | Lead Free |
| Length | 13.7mm |
| Lifecycle Status | Production |
| Max Input Voltage | 5.5V |
| Max Operating Temperature | 100°C |
| Max Output Current | 84A |
| Max Output Power | 1W |
| Max Output Voltage | 12.36V |
| Max Power Dissipation | 1W |
| Min Input Voltage | 4.5V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 11.64V |
| Mount | Surface Mount |
| Nominal Input Voltage | 5V |
| Nominal Output Voltage | 12V |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Number of Terminals | 5 |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Voltage - Output 1 | 12V |
| Width | 9.2mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

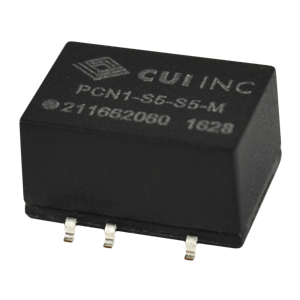

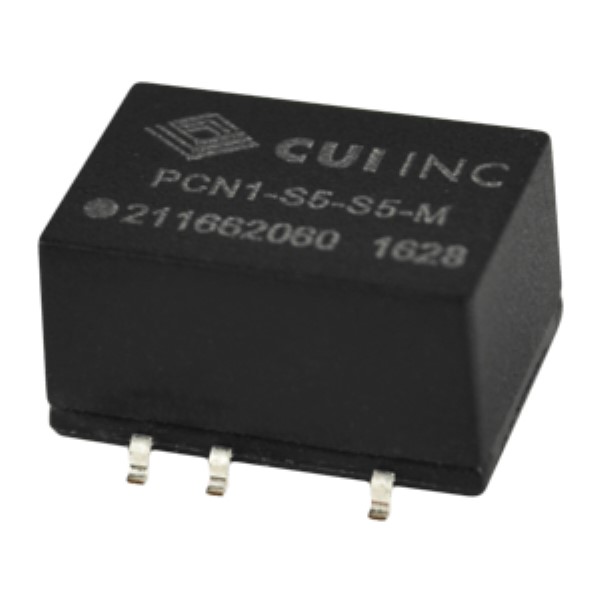

Images
Master Electronics
Authorized Distributors
Non-Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Augswan |
CN: 70
|
$ | 5.67 | 5.557 | 5.557 | 5.39 | 5.22 | 4.99 | ||
