Technical Details
| Case/Package | SIP |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Efficiency | 84% |
| Features | SCP |
| Height | 10.41mm |
| Height - Seated (Max) | 10.25mm |
| Introduction Date | 2013-03-18 |
| Isolation Voltage | 1500Vrms |
| Lead Free | Lead Free |
| Length | 19.6mm |
| Lifecycle Status | Obsolete |
| Max Input Voltage | 5.5V |
| Max Operating Temperature | 85°C |
| Max Output Current | 83mA |
| Max Output Power | 2W |
| Max Power Dissipation | 2W |
| Max Supply Voltage | 5.5V |
| Min Input Voltage | 4.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Nominal Input Voltage | 5V |
| Nominal Output Voltage | 24V |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Number of Terminals | 5 |
| Output Current | 83mA |
| Output Voltage | 24V |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Switching Frequency | 100kHz |
| Temperature Grade | Industrial |
| Terminal Pitch | 2.54mm |
| Topology | Boost |
| Voltage - Output 1 | 24V |
| Width | 7mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

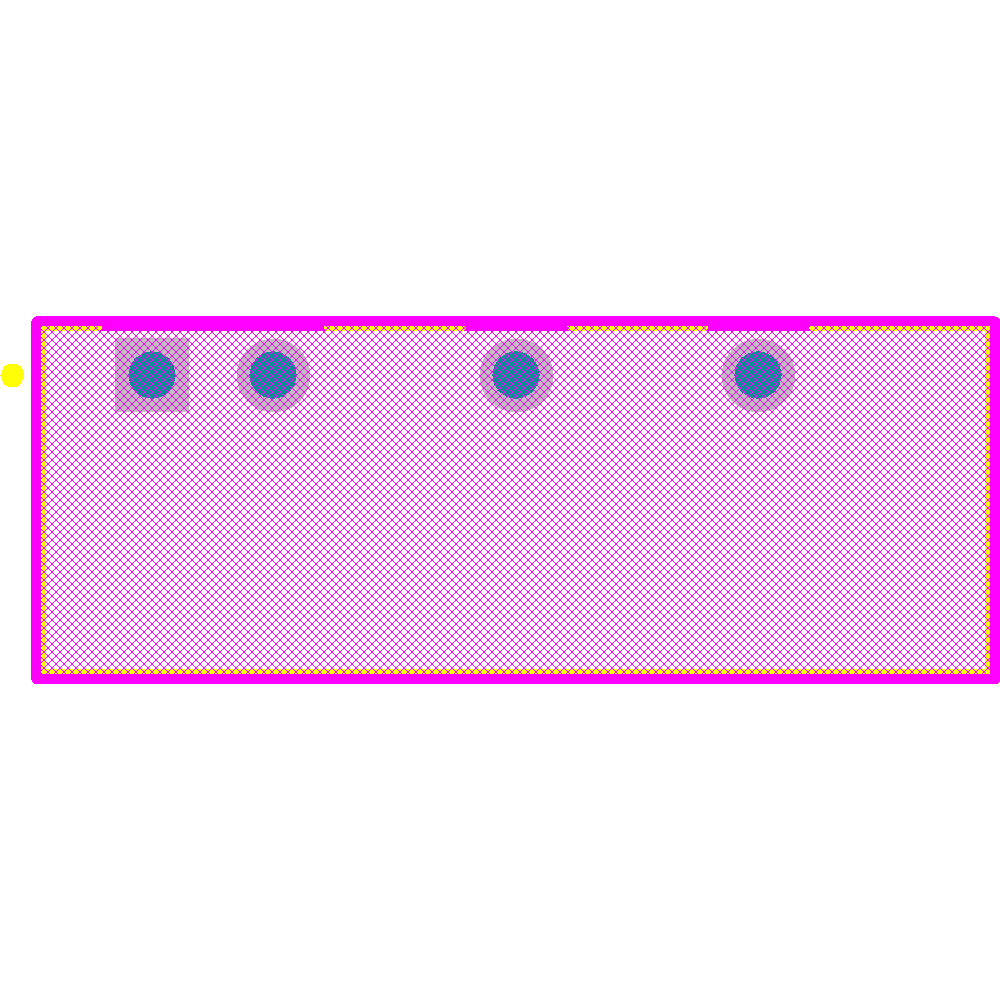

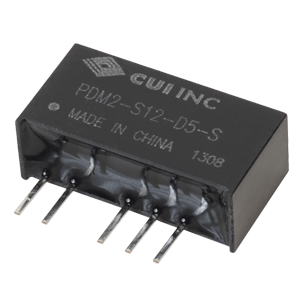

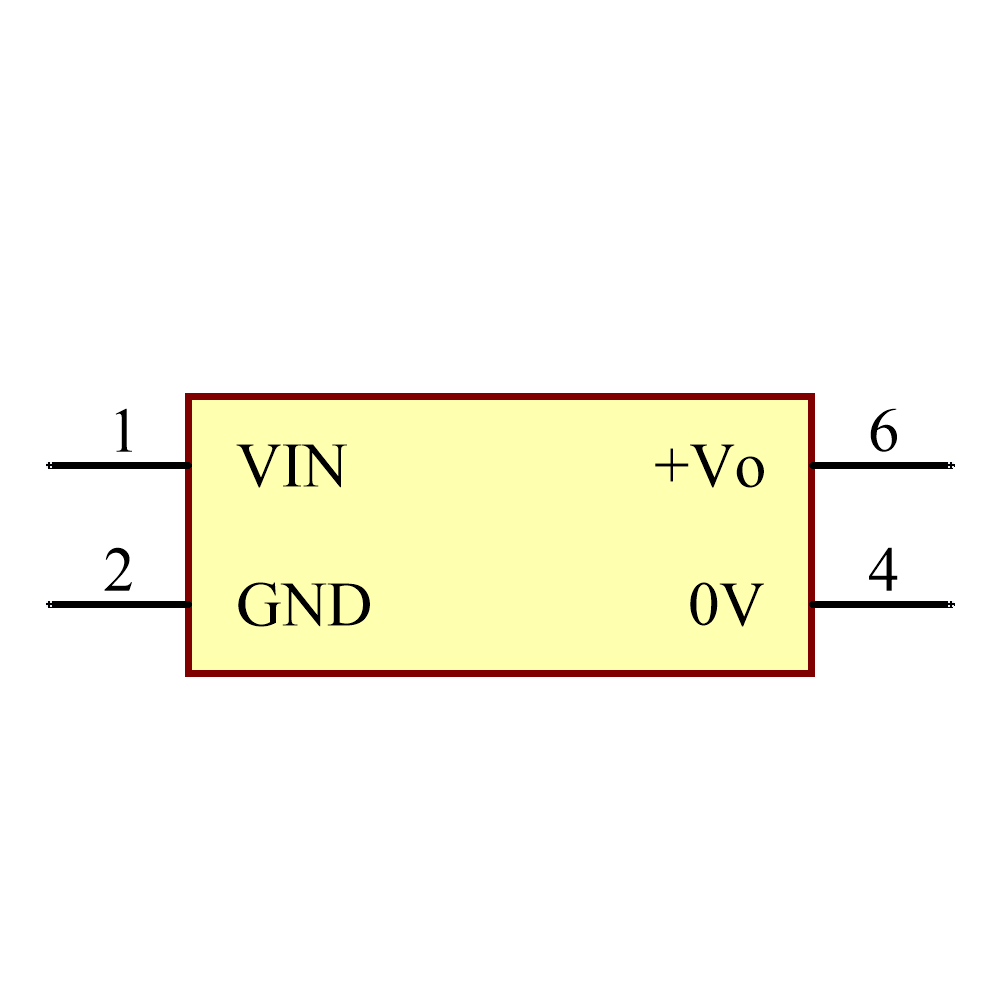

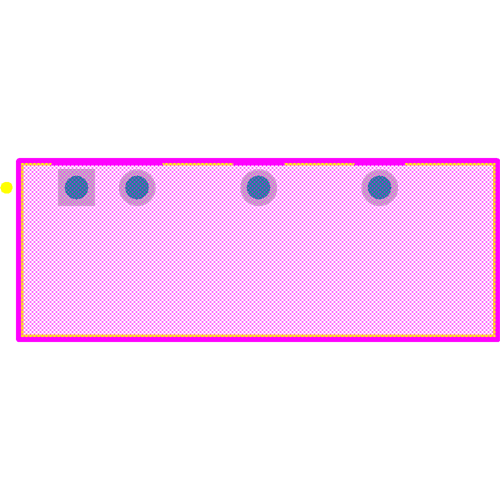

Images
