Technical Details
| Approvals | EN, IEC |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Efficiency | 90% |
| Height - Seated (Max) | 13.2mm |
| Introduction Date | 2024-09-18 |
| Length | 61mm |
| Lifecycle Status | Production |
| Max Input Voltage | 400V |
| Max Operating Temperature | 100°C |
| Max Output Current | 12.5A |
| Max Output Power | 300W |
| Max Output Voltage | 26.4V |
| Min Input Voltage | 180V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 19.2V |
| Nominal Input Voltage | 300V |
| Nominal Output Voltage | 24V |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Number of Terminals | 9 |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Width | 57.9mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

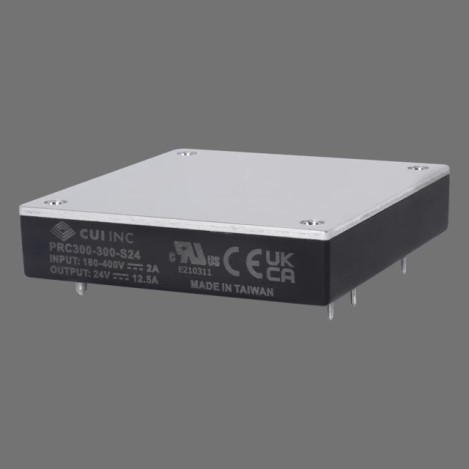

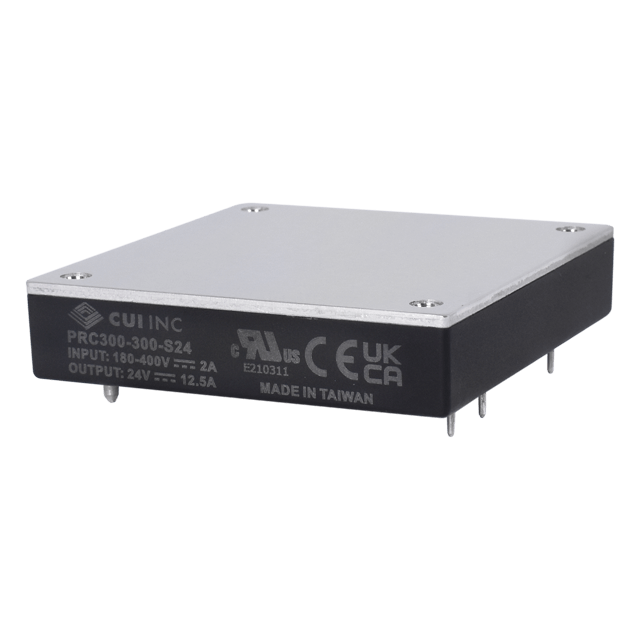

Images
