SDI12-12-UD-P5 - CUI Inc

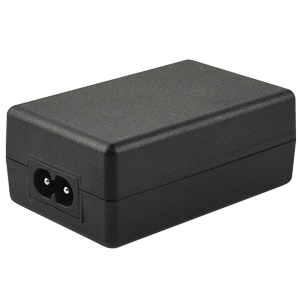

SDI12-UD Series 12 W 1 A 12 V Single Output Desktop Level VI AC/DC Adapter
Technical Details
| Approvals | CE, UL |
| Connector Type | Plug |
| Cord Length | 1.4986m |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 29.972mm |
| Height - Seated (Max) | 30.5mm |
| Introduction Date | 2021-10-07 |
| Lead Free | Lead Free |
| Length | 75mm |
| Lifecycle Status | Production |
| Max Input Voltage | 264V |
| Max Operating Temperature | 40°C |
| Max Output Current | 1A |
| Max Output Power | 12W |
| Max Output Voltage | 12.6V |
| Max Power Dissipation | 12W |
| Min Input Voltage | 90V |
| Min Operating Temperature | 0°C |
| Min Output Voltage | 11.4V |
| Nominal Input Voltage | 115V |
| Nominal Output Voltage | 12V |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Output Voltage | 12V |
| Polarity | Positive |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Weight | 110.222946g |
| Width | 48mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
