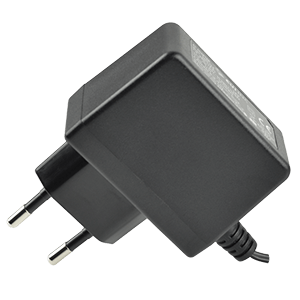

SWI6-12-E-P5 - CUI Inc
SWI6-E Series 7.2 W 12 V European Blade Level VI Wall Plug AC/DC Adapter
Technical Details
| Approvals | CE, EN |
| Connector Type | Plug |
| Cord Length | 1.4986m |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Efficiency | 80.9% |
| Height | 59.944mm |
| Height - Seated (Max) | 60mm |
| Introduction Date | 2022-01-28 |
| Lead Free | Lead Free |
| Length | 56mm |
| Lifecycle Status | Production |
| Max Input Voltage | 264V |
| Max Operating Temperature | 40°C |
| Max Output Current | 600mA |
| Max Output Power | 7.2W |
| Max Output Voltage | 12.6V |
| Max Power Dissipation | 6W |
| Min Input Voltage | 90V |
| Min Operating Temperature | 0°C |
| Min Output Voltage | 11.4V |
| Nominal Input Voltage | 240V |
| Nominal Output Voltage | 12V |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Output Voltage | 12V |
| Polarity | Positive |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Weight | 96.161582g |
| Width | 28mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
