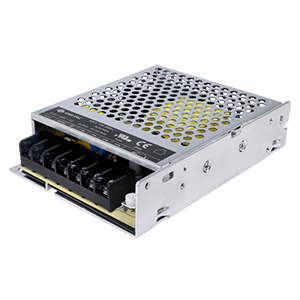

VGS-100C-24 - CUI Inc
POWER SUPPLY, AC-DC, 24V, 4.5A; Available until stocks are exhausted Alternative available
Technical Details
| Approvals | CE, EN, IEC, UL |
| Body Material | Metal |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Efficiency | 90% |
| Height - Seated (Max) | 31mm |
| Introduction Date | 2024-03-28 |
| Length | 129mm |
| Lifecycle Status | Production |
| Max Input Voltage | 264V |
| Max Operating Temperature | 70°C |
| Max Output Current | 4.5A |
| Max Output Power | 108W |
| Max Output Voltage | 26.4V |
| Min Input Voltage | 85V |
| Min Operating Temperature | -30°C |
| Min Output Voltage | 21.6V |
| Nominal Input Voltage | 115V |
| Nominal Output Voltage | 24V |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Width | 97mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
