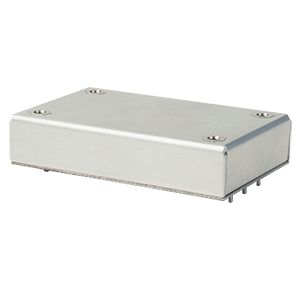

VQE50W-Q48-S48 - CUI Inc
dc-dc isolated, 50 W, 18~75 Vdc input, 48 Vdc, 1.04 A, single output, DIP
Technical Details
| Approvals | CE, UL |
| Case/Package | DIP |
| Efficiency | 89% |
| Features | OCP, OTP, OVP, SCP, UVLO |
| Height | 12.7mm |
| Isolation Voltage | 1500Vrms |
| Lead Free | Lead Free |
| Length | 57.9mm |
| Lifecycle Status | Production |
| Max Input Voltage | 75V |
| Max Operating Temperature | 105°C |
| Max Output Current | 1.04A |
| Max Output Power | 50W |
| Max Output Voltage | 52.8V |
| Max Power Dissipation | 50W |
| Min Input Voltage | 18V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 43.2V |
| Mount | Through Hole |
| Nominal Input Voltage | 48V |
| Nominal Output Voltage | 48V |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Number of Terminals | 8 |
| Output Power | 50W |
| Packaging | Bulk |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Voltage - Output 1 | 48V |
| Weight | 63.000011g |
| Width | 36.8mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
Images
Authorized Distributors
Non-Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Augswan |
CN: 603
|
$ | 118.6641 | 116.2908 | 116.2908 | 112.7309 | 109.171 | 104.4244 | ||
