DAC08ESZ - Analog Devices

DAC 1-CH Current Steering 8-bit 16-Pin SOIC N Tube

Technical Details

Case/Package	R
Contact Plating	Tin, Matte
Conversion Rate	11.8MS/s
Differential Output	Yes
Dual Supply Voltage	15V
Full Scale Error	1LSB
Height	1.5mm
Interface	Parallel
Lead Free	Contains Lead
Length	10mm
Max Dual Supply Voltage	18V
Min Dual Supply Voltage	4.5V
Max Operating Temperature	125°C
Min Operating Temperature	-55°C
Number of Bits	8
Number of Channels	1
Number of D/A Converters	1
Number of DAC Channels	1
Number of Pins	16
Output Polarity	Unipolar
Package Quantity	48
Packaging	Rail/Tube
Power Dissipation	33mW
Radiation Hardening	No
Reach SVHC Compliant	No
Resolution	8b
RoHS Compliant	Yes
Sampling Rate	11.8MS/s
Settling Time	85ns
Width	4mm

Compliance

RoHS : Compliant

Radiation Hardening : No

Images

Analog Devices DAC08ESZ | Mouser

Mouser

Datasheets

Avnet

DAC08ESZ datasheet (pdf, 577.9 KB)

Digikey

DAC08ESZ datasheet (pdf, 218.6 KB)

Lifecycle Status Indicator

Volume Production

Loading indicators

Symbol

DAC08ESZ Symbol - Analog Devices

Footprint

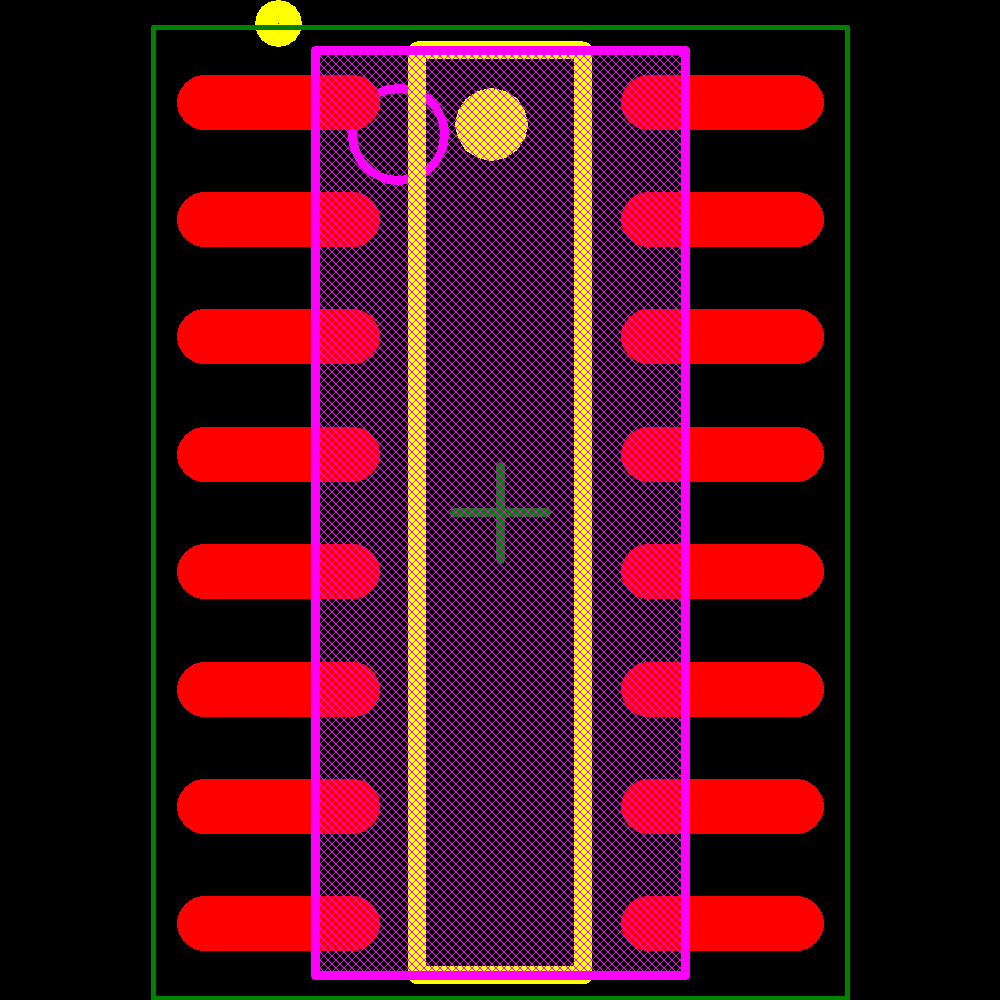

DAC08ESZ Footprint - Analog Devices
