1SMB5932B-13 - Diodes Inc.
1SMB5932B Series 550 mW 20 V 200 mA Surface Mount Zener Diode - DO-214AA(SMB)
Technical Details
| Case/Package | SMB |
| China RoHS | Non-Compliant |
| Contact Plating | Tin |
| Country of Origin | Mainland China |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| ESD Protection | Yes |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Impedance | 14Ω |
| Introduction Date | 2011-07-12 |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 550mW |
| Max Reverse Leakage Current | 1µA |
| Min Operating Temperature | -65°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Packaging | Tape & Reel (TR) |
| Polarity | Unidirectional |
| Power Rating | 3W |
| REACH SVHC | No |
| Reference Voltage | 20V |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Test Current | 18.7mA |
| Tolerance | 5% |
| Voltage Tolerance | 5% |
| Weight | 92.986436mg |
| Zener Current | 18.7mA |
| Zener Voltage | 20V |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

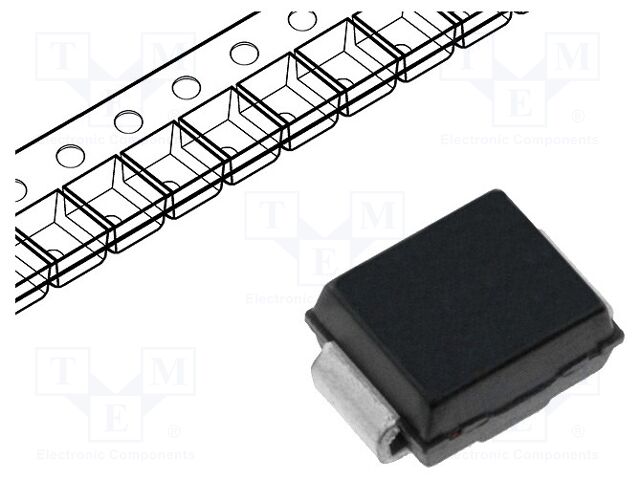

Images
TME
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Vishay | Production | ||
| Vishay | Production | ||
| Vishay | Production | ||
| Taiwan Semiconductor | Production | ||
| Taiwan Semiconductor | Production | ||
| onsemi | Production | ||
| Vishay | Production | ||
| Taiwan Semiconductor | Production | ||
| Taiwan Semiconductor | Production | ||
| Taiwan Semiconductor | Production |
