AL8860MP-13 - Diodes Inc.
AL8860 Series 40 V 1.5 A 1 MHz Surface Mount Buck LED Driver - MSOP-8EP
Technical Details
| Ambient Temperature Range High | 85°C |
| China RoHS | Compliant |
| Country of Origin | Mainland China |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 1.1mm |
| Height - Seated (Max) | 1.1mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Introduction Date | 2016-09-27 |
| Length | 3mm |
| Lifecycle Status | Production |
| Max Junction Temperature (Tj) | 125°C |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 40V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Nominal Supply Current | 550µA |
| Number of Channels | 1 |
| Number of Characters | 3 |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Number of Terminals | 8 |
| Operating Supply Voltage | 16V |
| Output Current | 1.5A |
| Output Voltage | 36V |
| Packaging | Cut Tape |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Switching Frequency | 1MHz |
| Temperature Grade | Industrial |
| Terminal Pitch | 650µm |
| Topology | Buck |
| Width | 3mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

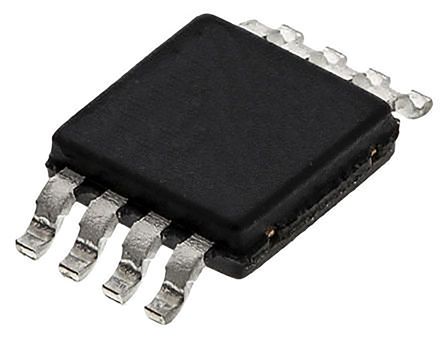

Images
