AP2111SG-13 - Diodes Inc.

Usb Power Switch, High Side, 85Deg C Rohs Compliant: Yes |Diodes Inc. AP2111SG-13

Accuracy	1.5%
Case/Package	SOP
China RoHS	Compliant
Contact Plating	Tin
Country of Origin	Mainland China
Export Control Classification Number (ECCN) Code	EAR99
Fault Protection	Over Temperature, Reverse Current
Height	1.5mm
Height - Seated (Max)	1.75mm
Harmonized Tariff Schedule (HTS) Code	8542.39.00.60
Interface	On/Off
Introduction Date	2009-11-13
Length	4.9mm
Lifecycle Status	Production
Max Input Voltage	6V
Max Operating Temperature	85°C
Max Output Current	2A
Max Supply Voltage	5.5V
Min Input Voltage	2.5V
Min Operating Temperature	-35°C
Min Supply Voltage	2.7V
Mount	Surface Mount
Number of Channels	1
Number of Circuits	1
Number of Outputs	1
Number of Pins	8
Number of Terminals	8
Operating Supply Voltage	5V
Output Configuration	High Side
Output Current	2A
Output Type	Fixed
Packaging	Tape & Reel (TR)
Quiescent Current	55µA
Radiation Hardening	No
REACH SVHC	Yes
Resistance	170mΩ
RoHS	Compliant
Terminal Pitch	1.27mm
Turn-Off Delay Time	4µs
Turn-On Delay Time	50µs
Weight	850.995985mg
Width	3.9mm

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

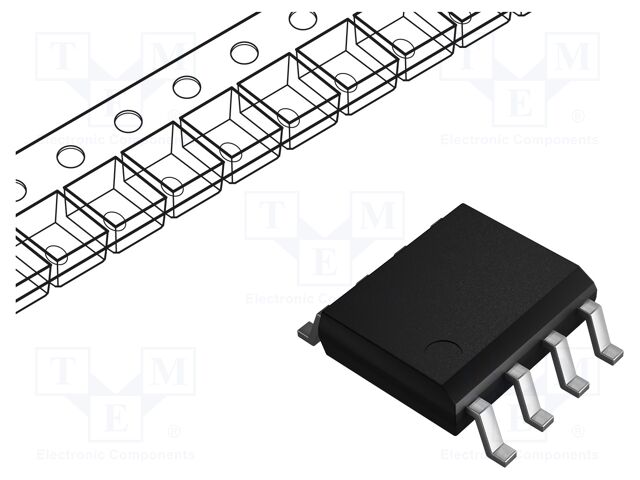

Diodes Inc. AP2111SG-13 | TME

TME

Production

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator
Diodes Inc.	AP2191DSG-13	Production
Diodes Inc.	AP2151DSG-13	Production
Diodes Inc.	AP2171DSG-13	Production
STMicroelectronics	ST2051BDR	Obsolete
Texas Instruments	TPS2068DG4	Unknown
Texas Instruments	TPS2010DG4	Unknown
Texas Instruments	TPS2012ADG4	Unknown
Texas Instruments	TPS2010ADRG4	Unknown
Texas Instruments	TPS2013DG4	Unknown
STMicroelectronics	ST2041BDR	Obsolete
