AP2139AK-2.5TRG1 - Diodes Inc.
LDO Voltage Regulator, Fixed, 2.5 to 6 V in, 650 mV Drop, 2.5 V/250 mA out, SOT-23-5
Technical Details
| Accuracy | 2% |
| Case/Package | LSSOP |
| China RoHS | Compliant |
| Contact Plating | Tin |
| Dropout Voltage | 650mV |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height - Seated (Max) | 1.45mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Length | 2.92mm |
| Lifecycle Status | NRND |
| Max Input Voltage | 6V |
| Max Junction Temperature (Tj) | 85°C |
| Max Operating Temperature | 85°C |
| Max Output Current | 250mA |
| Min Input Voltage | 2.5V |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Number of Pins | 5 |
| Number of Regulators | 1 |
| Number of Terminals | 5 |
| Output Current | 250mA |
| Output Type | Fixed |
| Output Voltage | 2.5V |
| Packaging | Tape & Reel (TR) |
| Polarity | Positive |
| Quiescent Current | 1.5µA |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Terminal Pitch | 950µm |
| Voltage Tolerance | 2% |
| Width | 1.6mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

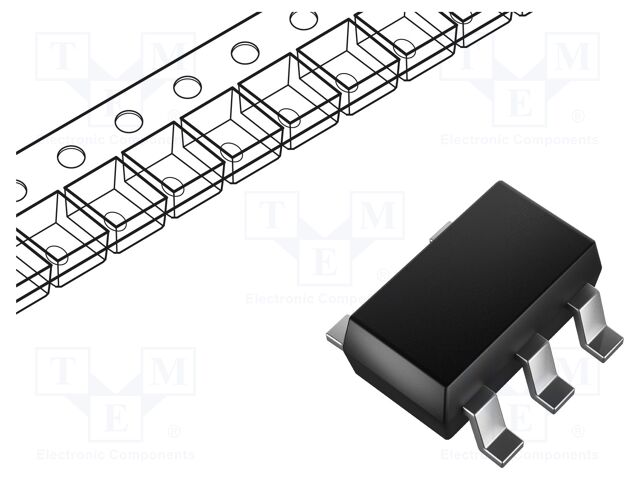

Images
