AP2411MP-13 - Diodes Inc.
AP2411 Series Single Channel 2 A Current-Limited Power Switch - MSOP-8-EP
Technical Details
| Case/Package | MSOP |
| China RoHS | Compliant |
| Country of Origin | Mainland China |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Fault Protection | Over Temperature, Reverse Current |
| Height | 950µm |
| Height - Seated (Max) | 1.1mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Interface | On/Off |
| Introduction Date | 2011-06-23 |
| Lead Free | Lead Free |
| Length | 3mm |
| Lifecycle Status | Production |
| Max Input Voltage | 5.5V |
| Max Operating Temperature | 85°C |
| Max Output Current | 2A |
| Max Supply Voltage | 5.5V |
| Min Input Voltage | 2.7V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Nominal Input Voltage | 5.5V |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Number of Pins | 8 |
| Number of Terminals | 8 |
| Operating Supply Voltage | 5V |
| Output Configuration | High Side |
| Output Current | 2A |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Resistance | 84mΩ |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Temperature Grade | Industrial |
| Terminal Pitch | 650µm |
| Turn-Off Delay Time | 100µs |
| Turn-On Delay Time | 1.5ms |
| Width | 3mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

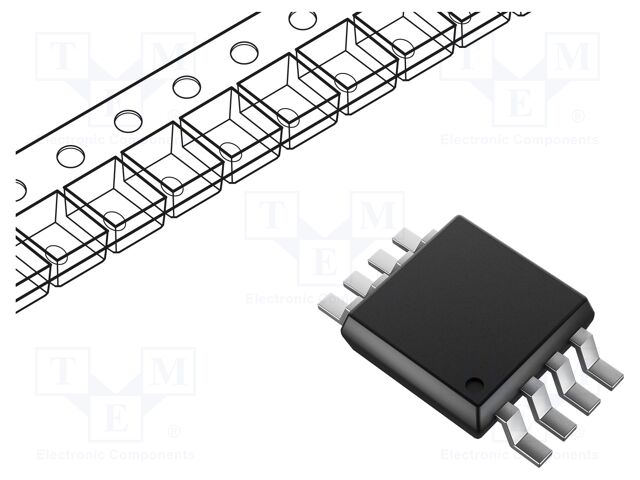

Images
TME
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Analog Devices | Unknown | ||
| Diodes Inc. | Obsolete | ||
| Texas Instruments | Unknown | ||
| Diodes Inc. | Production | ||
| Analog Devices | Unknown | ||
| Diodes Inc. | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Diodes Inc. | Production |
