AP3304W6-7 - Diodes Inc.
Switching Controller, Current-mode, 0.3A, 100kHz Switching Freq-Max, PDSO6
Technical Details
| Ambient Temperature Range High | 85°C |
| Case/Package | LSSOP |
| China RoHS | Compliant |
| Country of Origin | Mainland China |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 1.45mm |
| Height - Seated (Max) | 1.45mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Introduction Date | 2021-10-08 |
| Length | 2.9mm |
| Lifecycle Status | Production |
| Max Input Voltage | 50V |
| Max Junction Temperature (Tj) | 150°C |
| Max Operating Temperature | 85°C |
| Max Output Current | 300mA |
| Max Power Dissipation | 500mW |
| Max Supply Current | 2.5mA |
| Max Supply Voltage | 50V |
| Max Switching Frequency | 100kHz |
| Min Input Voltage | 10V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 10V |
| Nominal Input Voltage | 18V |
| Nominal Supply Current | 2mA |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Number of Terminals | 6 |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Terminal Pitch | 950µm |
| Topology | Buck-Boost |
| Width | 1.6mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

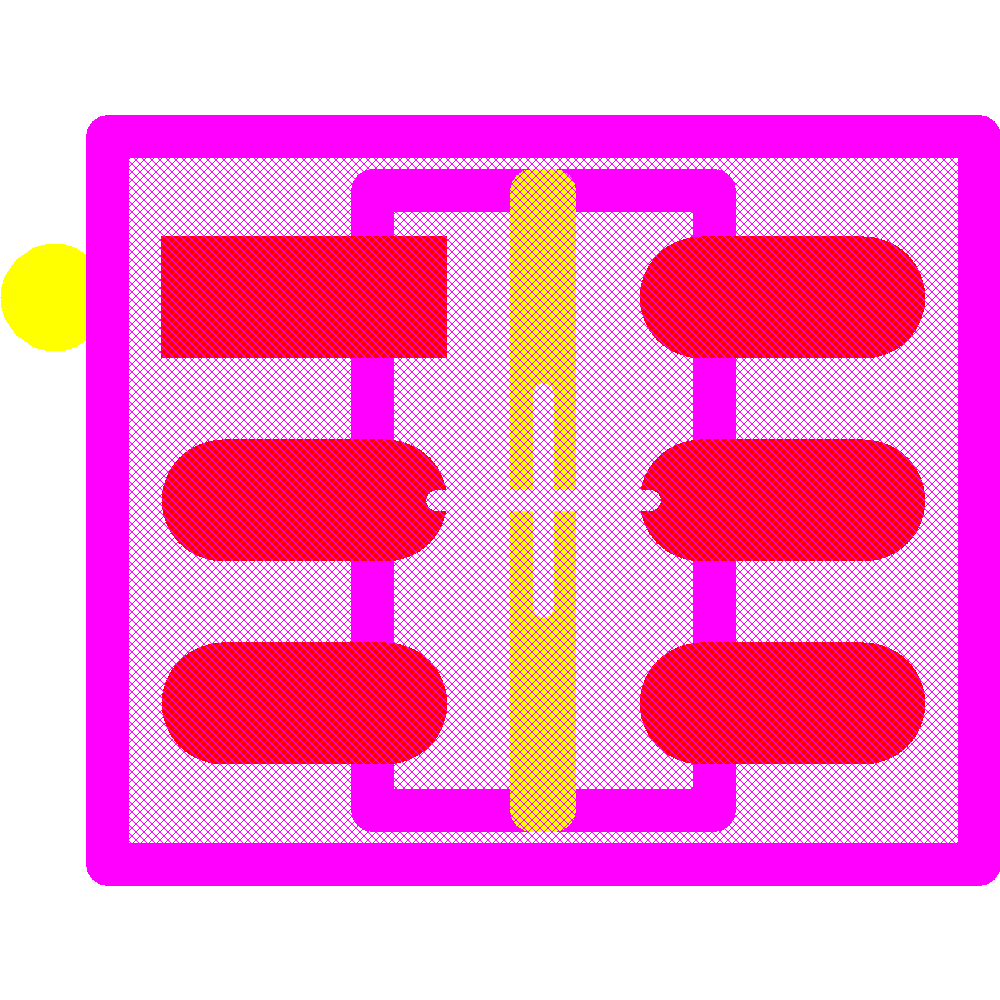

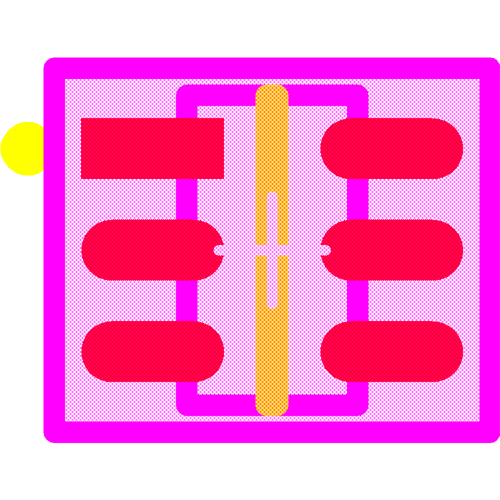

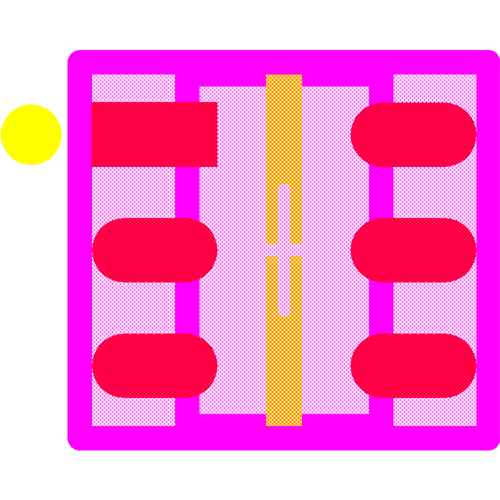

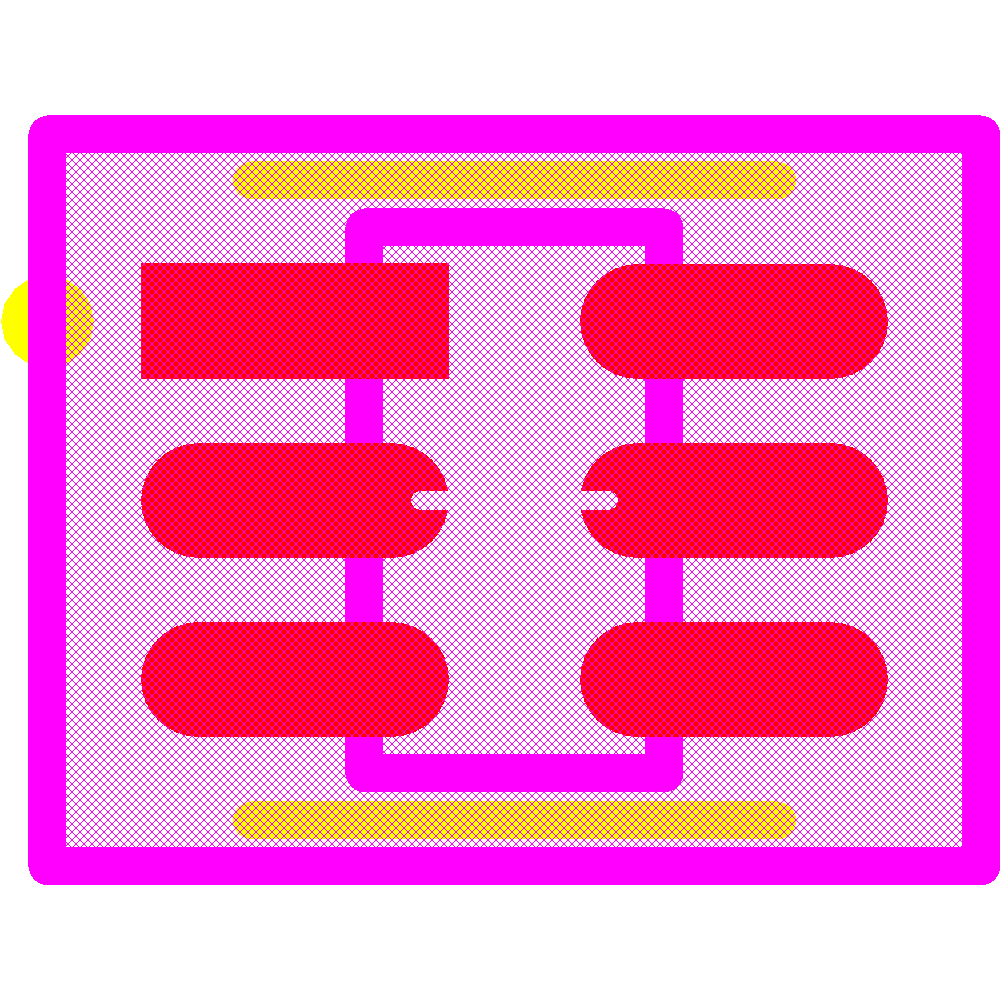

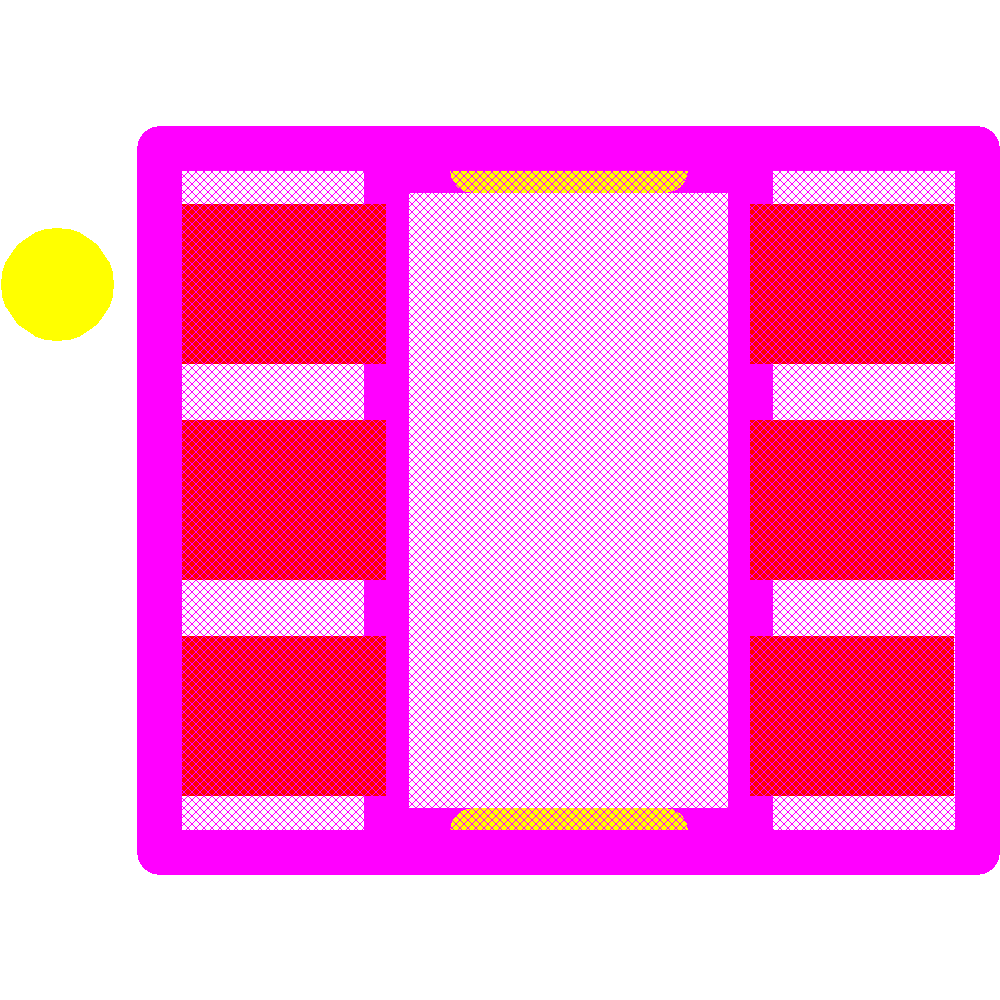

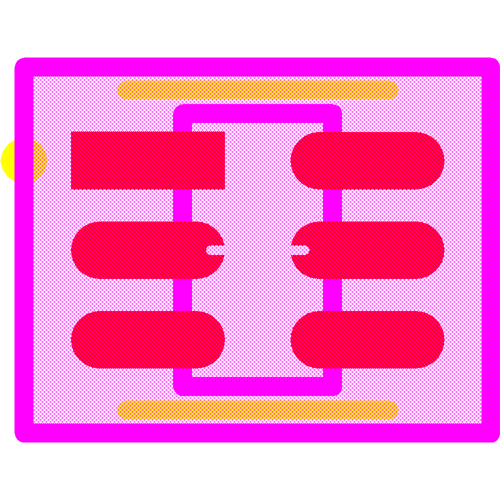

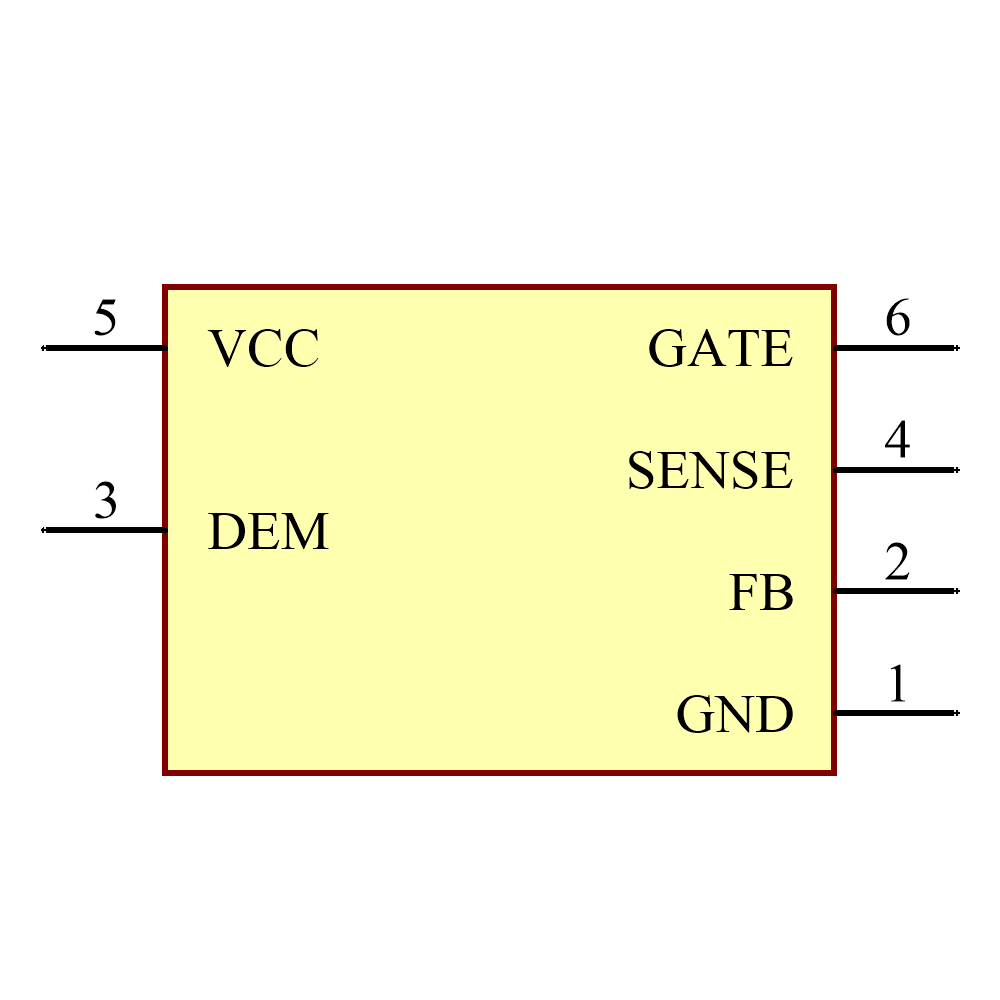

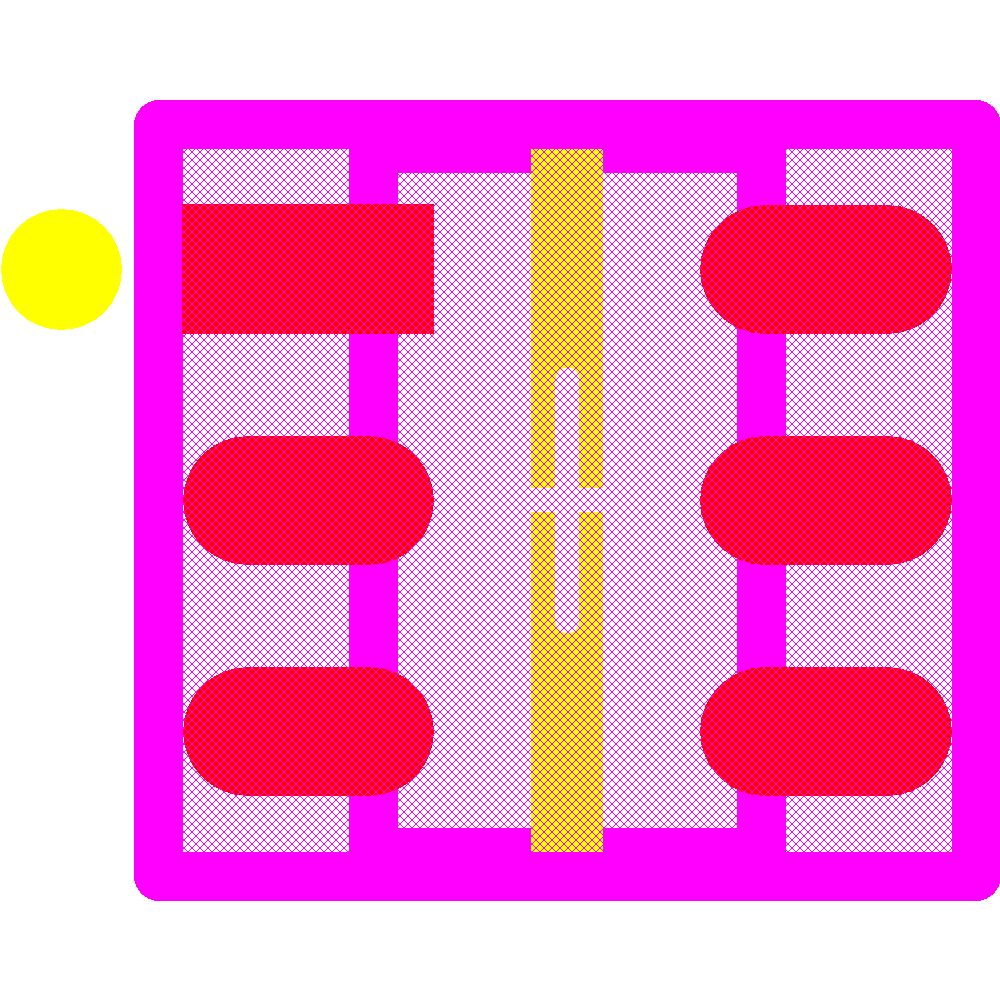

Images
