AZ1117EH-1.8TRG1 - Diodes Inc.
AZ1117E Series 1.8 V 1 A Positive Fixed Low Dropout Linear Regulator - SOT-223
Technical Details
| Accuracy | 1% |
| Case/Package | LSOP |
| China RoHS | Compliant |
| Dropout Voltage | 1.1V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 1.8mm |
| Height - Seated (Max) | 1.65mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Introduction Date | 2013-03-01 |
| Length | 6.5mm |
| Lifecycle Status | Obsolete |
| Max Input Voltage | 13V |
| Max Junction Temperature (Tj) | 125°C |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 13V |
| Min Input Voltage | 3.3V |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Nominal Supply Current | 3.5mA |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Number of Terminals | 3 |
| Operating Supply Current | 3.5mA |
| Output Current | 1.3A |
| Output Type | Fixed |
| Output Voltage | 1.8V |
| Packaging | Tape & Reel (TR) |
| Power Supply Rejection Ratio (PSRR) | 70dB |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Terminal Pitch | 2.3mm |
| Voltage Tolerance | 2% |
| Weight | 7.994566mg |
| Width | 3.5mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

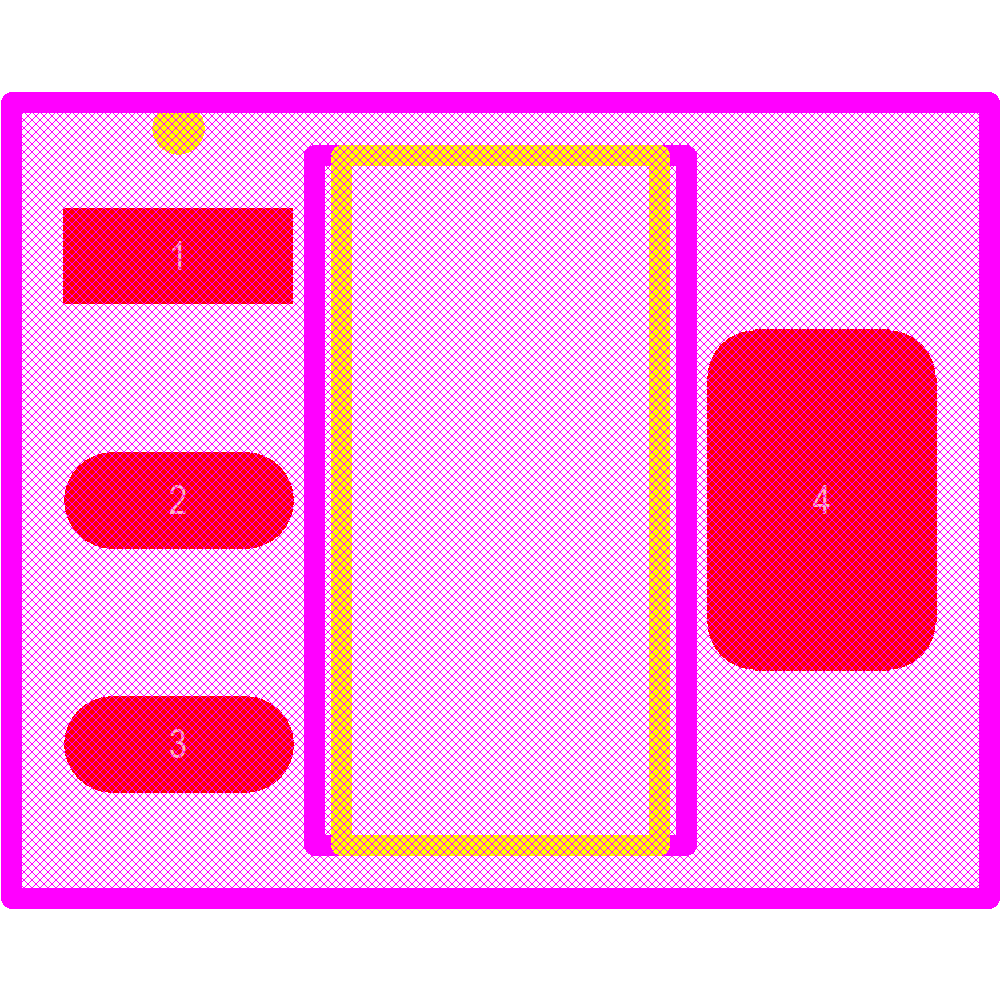

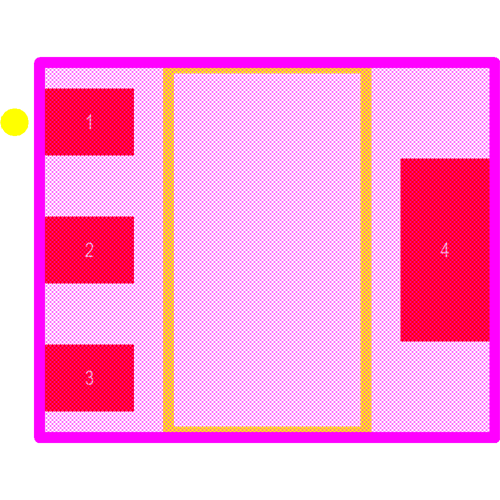

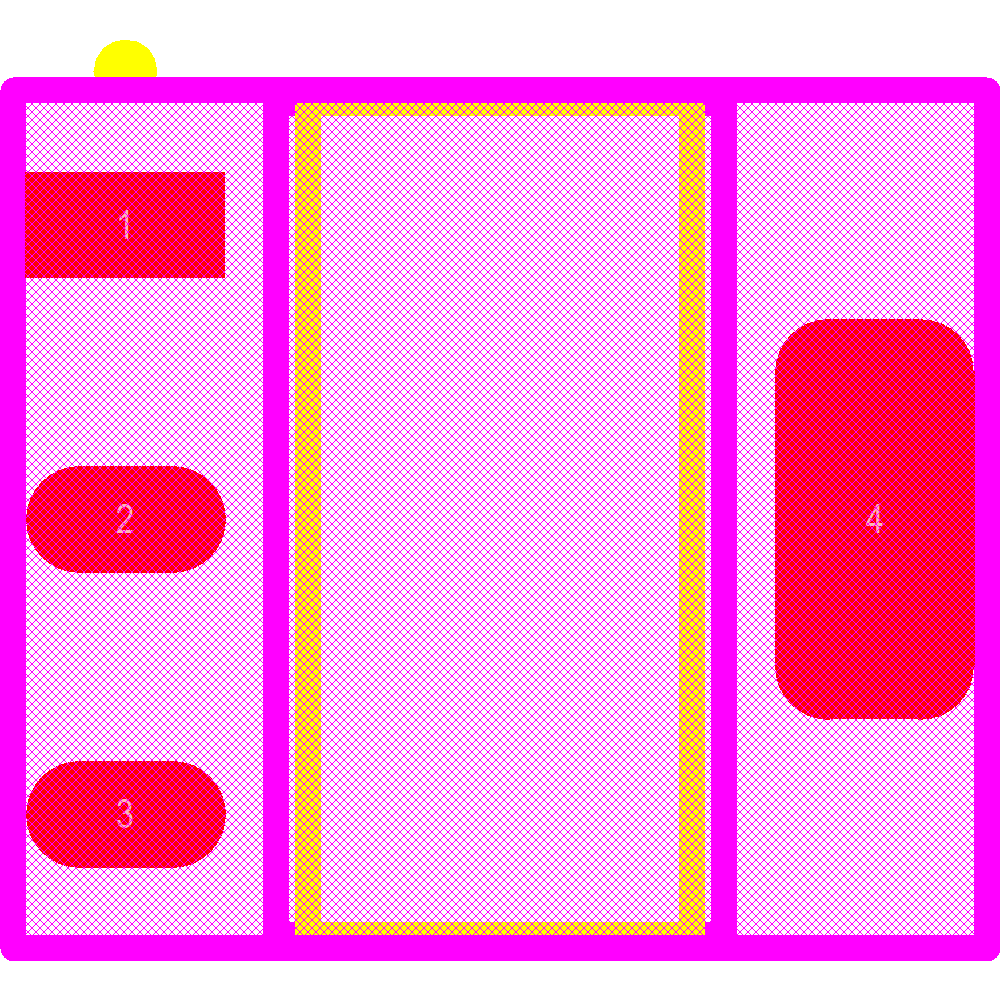

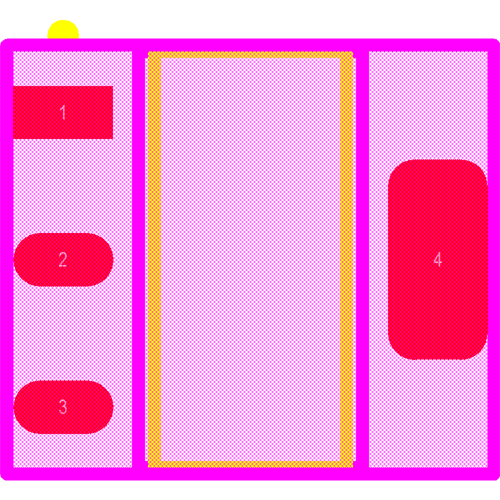

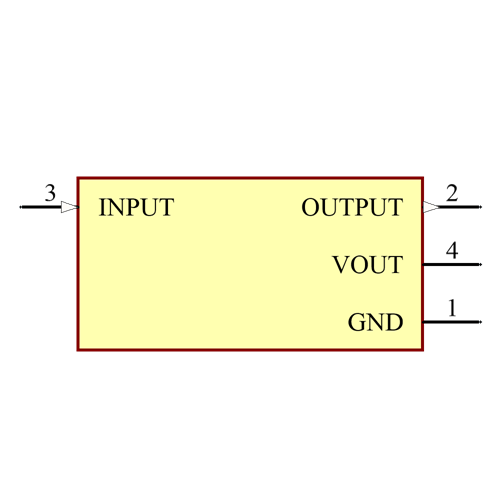

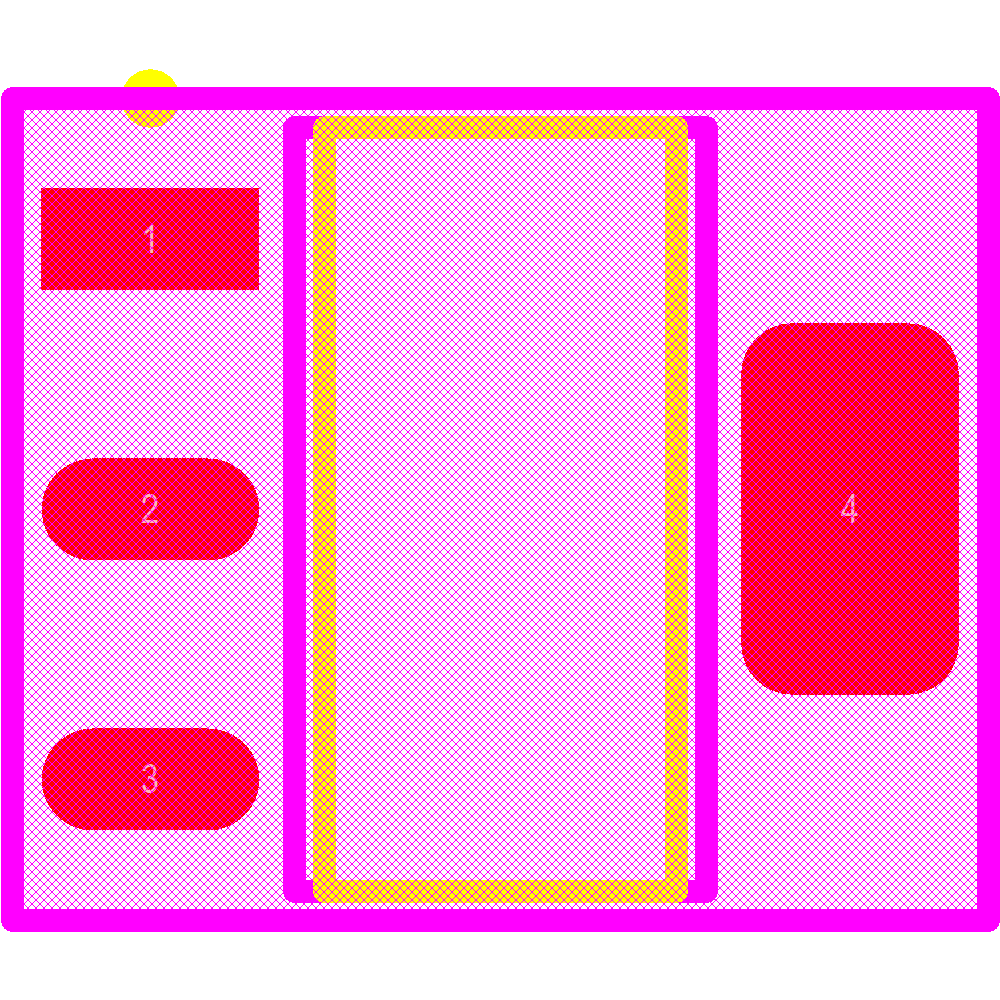

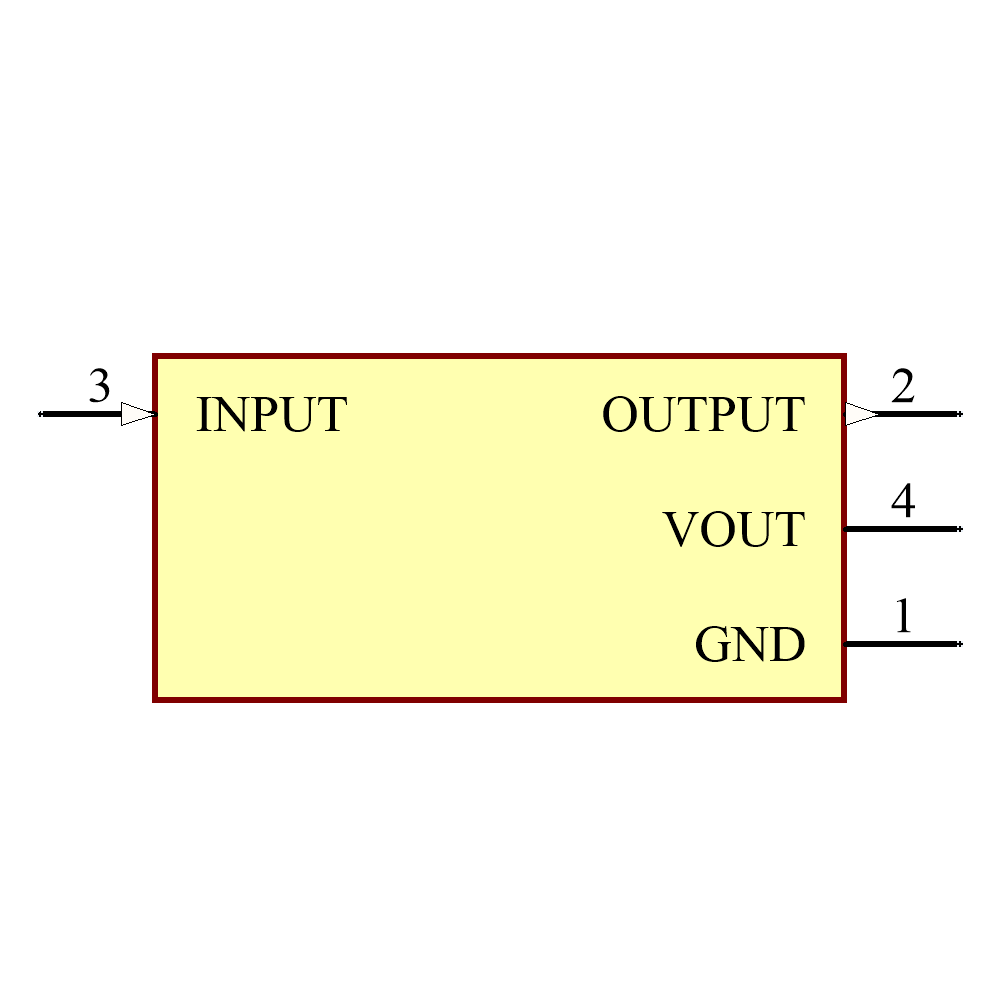

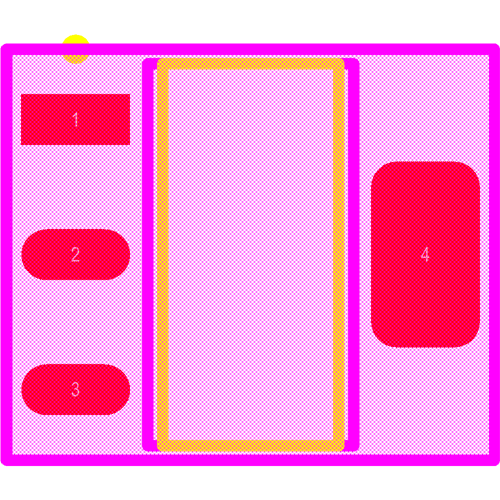

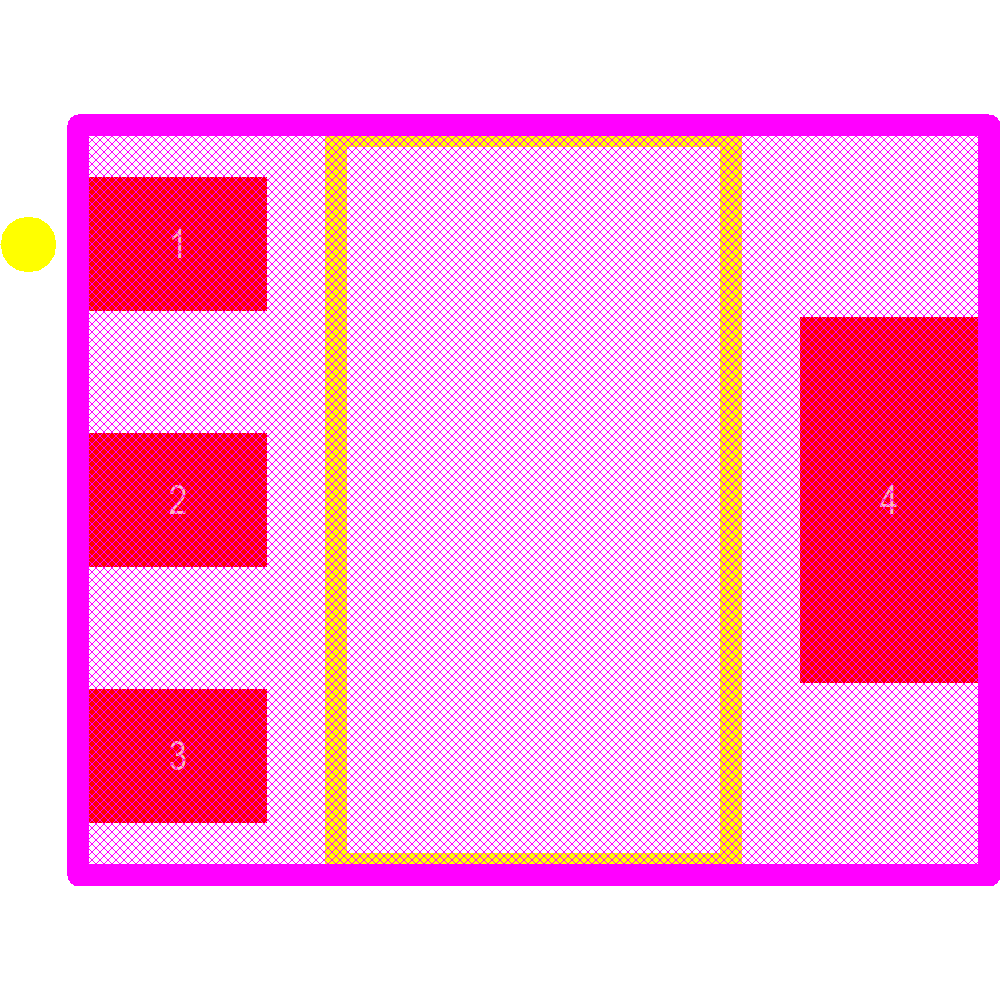

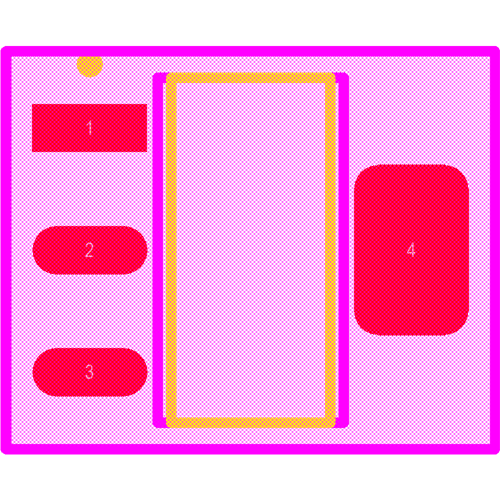

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| NXP Semiconductors | Obsolete | ||
| NXP Semiconductors | Obsolete | ||
| onsemi | Obsolete | ||
| Diodes Inc. | Production | ||
| Diodes Inc. | Obsolete | ||
| Microchip | Production | ||
| onsemi | Obsolete | ||
| Analog Devices | Unknown | ||
| Microchip | Production |
