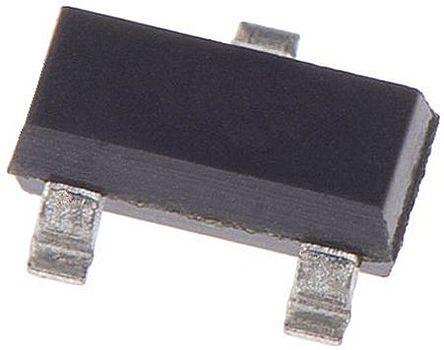

AZ23C16 Series 16 V 300 mW Dual Zener Diode Surface Mount - SOT-23-3

 Datasheets

Technical Details

Case/Package SOT-23
China RoHS Compliant
Contact Plating Tin
Country of Origin Mainland China
Export Control Classification Number (ECCN) Code EAR99
Element Configuration Common Anode
ESD Protection No
Height 1mm
Harmonized Tariff Schedule (HTS) Code 8541.10.00.50
Impedance 40Ω
Introduction Date 2003-02-06
Lead Free Lead Free
Length 3.05mm
Lifecycle Status Production
Max Operating Temperature 150°C
Max Power Dissipation 300mW
Max Reverse Leakage Current 100nA
Min Operating Temperature -65°C
Mount Surface Mount
Number of Contacts 3
Number of Elements 2
Number of Pins 3
Number of Terminals 3
Packaging Cut Tape
Peak Reverse Current 100mA
Polarity Unidirectional
Power Dissipation 300mW
Power Rating 300mW
Radiation Hardening No
REACH SVHC Yes
Reference Voltage 16.2V
RoHS Compliant
Termination SMD/SMT
Test Current 5mA
Tolerance 5%
Voltage Rating (DC) 16V
Voltage Tolerance 5.56%
Weight 7.994566mg
Width 1.4mm
Working Voltage 16V
Zener Current 5mA
Zener Voltage 16.2V
