Technical Details
| Case/Package | SOT-23 |
| China RoHS | Compliant |
| Contact Plating | Tin |
| Country of Origin | Mainland China |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Common Anode |
| ESD Protection | No |
| Height | 1mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Impedance | 80Ω |
| Introduction Date | 2003-02-06 |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 300mW |
| Max Reverse Leakage Current | 100nA |
| Min Operating Temperature | -65°C |
| Mount | Surface Mount |
| Number of Contacts | 3 |
| Number of Elements | 2 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Packaging | Cut Tape |
| Peak Reverse Current | 100nA |
| Polarity | Unidirectional |
| Power Dissipation | 300mW |
| Power Rating | 300mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reference Voltage | 24.2V |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Test Current | 5mA |
| Tolerance | 5% |
| Voltage Rating (DC) | 24V |
| Voltage Tolerance | 5.79% |
| Weight | 7.994566mg |
| Width | 2.4mm |
| Working Voltage | 24V |
| Zener Current | 5mA |
| Zener Voltage | 24V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

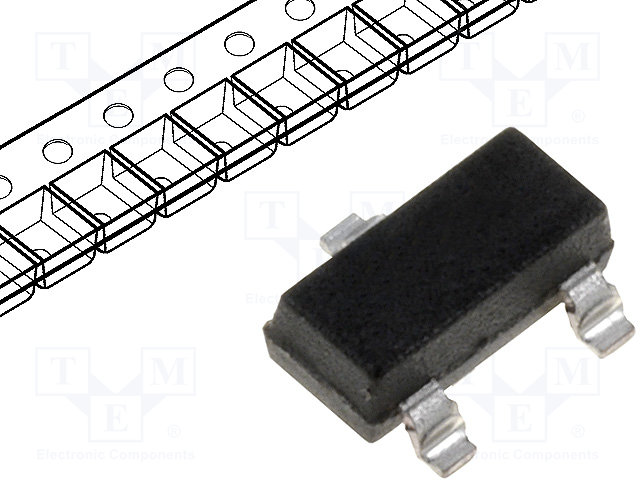

Images
