Discrete Semiconductors  >  Transistors  >  BJTs

Diodes Inc. - BC857BV-7

BC857BV-7 - Diodes Inc.

BC857 Series 45 V 100 mA 150 mW Dual PNP SMT Bipolar Transistor - SOT-563

 Datasheets

Technical Details

Case/Package SOT-563
China RoHS Compliant
Collector Base Voltage (VCBO) -50V
Collector Emitter Breakdown Voltage -45V
Collector Emitter Saturation Voltage -400mV
Collector Emitter Voltage (VCEO) 45V
Contact Plating Tin
Country of Origin Mainland China
Export Control Classification Number (ECCN) Code EAR99
Element Configuration Dual
Emitter Base Voltage (VEBO) 5V
Frequency 100MHz
Gain Bandwidth Product 100MHz
Height 600µm
hFE Min 220
Introduction Date 2003-10-03
Lead Free Lead Free
Length 1.6mm
Lifecycle Status Production
Max Breakdown Voltage 45V
Max Collector Current 100mA
Max Junction Temperature (Tj) 150°C
Max Operating Temperature 150°C
Max Power Dissipation 150mW
Min Operating Temperature -55°C
Mount Surface Mount
Number of Elements 2
Number of Pins 6
Number of Terminals 6
Packaging Tape & Reel
Polarity PNP
Power Dissipation 150mW
REACH SVHC Yes
RoHS Compliant
Schedule B 8541210080, 8541210080|8541210080|8541210080|8541210080|8541210080
Transition Frequency 100MHz
Weight 3.005049mg
Width 1.2mm

Compliance

   RoHS : Unconfirmed
   REACH SVHC : Yes

Images

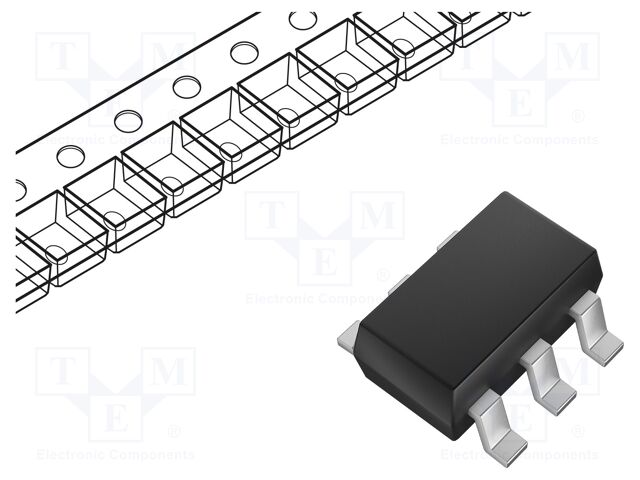

Diodes Inc. BC857BV-7 | TME

TME

Datasheets

 DigiKey
 DigiKey
 DigiKey

Lifecycle Status Indicator

   Production

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Nexperia
BC857B,235
Production
Diodes Inc.
BC857B
Production
Diodes Inc.
BC857B-7
Obsolete
onsemi
BC857BLT1
Obsolete
onsemi
BC857BLT1G
Production
onsemi
BC857BLT3G
Production
STMicroelectronics
BC857B
Obsolete
MCC
BC857B-TP
Production
CDIL
BC857B
Unknown
Nexperia
BC857B,215
Production

See more alternatives See less alternatives

Authorized Distributors

Distributor SKU Stock USD 1 10 50 100 1000 10000 Buy
DigiKey
BC857BV-7DICT-ND
DE: 3477
 $ 0.4068 0.249 0.249 0.4068 0.1034 0.1034
 Historical Pricing  Historical Stock Levels
Quantity
Location
DigiKey
BC857BV-7DIDKR-ND
DE: 3477
 $ 0.4068 0.249 0.249 0.4068 0.1034 0.1034
 Historical Pricing  Historical Stock Levels
Quantity
Location
DigiKey
BC857BV-7DITR-ND
DE: 3000
 $ 0.0869
 Historical Pricing  Historical Stock Levels
Quantity
Location
Arrow Electronics
BC857BV-7
US: 3000
 $ 0.0793
 Historical Pricing  Historical Stock Levels
Quantity
Location
Verical
BC857BV-7
US: 3000
 $ 0.0618
 Historical Pricing  Historical Stock Levels
Quantity
Location
TME
BC857BV-7
PL: 290
 $ 0.3746 0.2744 0.2744 0.1598 0.096 0.0669
 Historical Pricing  Historical Stock Levels
Quantity
Location
Farnell
3944316
DE: 2150
 $ 0.2786 0.2786 0.1763 0.1156 0.0968
 Historical Pricing  Historical Stock Levels
Quantity
Location
Farnell
3944316RL
DE: 2150
 $ 0.1763 0.1156 0.0968
 Historical Pricing  Historical Stock Levels
Quantity
Location
Mouser
621-BC857BV-7
US: 130190
 $ 0.38 0.236 0.236 0.149 0.098 0.082
 Historical Pricing  Historical Stock Levels
Quantity
Location
Avnet Silica
BC857BV-7
EU: 0
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Avnet
BC857BV-7
US: 0
 $ 0.0506
 Historical Pricing  Historical Stock Levels
Quantity
Location
Future Electronics
2038632
CA: 0
 $ 0.0918
 Historical Pricing  Historical Stock Levels
Quantity
Location
Newark
BC857BV-7
US: 2150
 $ 0.26 0.201 0.172 0.121 0.121
 Historical Pricing  Historical Stock Levels
Quantity
Location
element14 APAC
3944316
SG: 2150
 $ 0.2603 0.2603 0.1647 0.0903 0.0774
 Historical Pricing  Historical Stock Levels
Quantity
Location
element14 APAC
3944316RL
SG: 2150
 $ 0.1647 0.0903 0.0774
 Historical Pricing  Historical Stock Levels
Quantity
Location

Non-Authorized Distributors

Distributor SKU Stock USD 1 10 50 100 1000 10000 Buy
Win Source
74154-BC857BV-7
CN: 60000
 $ 0.078 0.052
 Historical Pricing  Historical Stock Levels
Quantity
Location
Worldway Electronics
BC857BV-7
HK: 81073
 $ 0.0716 0.0716 0.0694 0.0658 0.0658
 Historical Pricing  Historical Stock Levels
Quantity
Location
UnikeyIC
BC857BV-7
SG: 100
 $ 0.0896 0.0896 0.0896 0.0896 0.0578 0.0443
 Historical Pricing  Historical Stock Levels
Quantity
Location
LCSC
C155263
CN: 1105
 $ 0.0717 0.0701 0.0701 0.068 0.068
 Historical Pricing  Historical Stock Levels
Quantity
Location
Bettlink
BC857BV-7
HK: 60672
 $ 0.1232 0.0912 0.0912 0.0793 0.0742 0.0666
 Historical Pricing  Historical Stock Levels
Quantity
Location
Lixinc
BC857BV-7
CN: 6536
 $ 0.46 0.46 0.46 0.46 0.46 0.092
 Historical Pricing  Historical Stock Levels
Quantity
Location
Anlinkda
BC857BV-7
HK: 4284
 $ 0.144 0.129 0.129 0.103 0.092 0.083
 Historical Pricing  Historical Stock Levels
Quantity
Location
Chipsmall Limited
BC857BV-7
CN: 2500
 $ 0.243 0.162 0.162 0.0972 0.081 0.081
 Historical Pricing  Historical Stock Levels
Quantity
Location
Classic Components
BC857BV-7
US: 204000
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Classic Components
BC857BV7
US: 111000
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
ODG (Origin Data Global)
BC857BV-7
CN: 30000
 $ 0.0887 0.0788
 Historical Pricing  Historical Stock Levels
Quantity
Location
Heisener Electronics
BC857BV-7
CN: 165038
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
XingHuan International
BC857BV-7
CN: 60000
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Abacus Technologies
BC857BV-7
US: 286549
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Sourcengine
BC857BV-7
US: 3602
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
NAC Semi
BC857BV-7
US: 117000
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
