BCP52TA - Diodes Inc.
Power Bipolar Transistor, 1A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon, Plastic/Epoxy, 4 Pin
Technical Details
| Case/Package | SOT-223 |
| China RoHS | Compliant |
| Collector Base Voltage (VCBO) | 60V |
| Collector Emitter Breakdown Voltage | 60V |
| Collector Emitter Saturation Voltage | 500mV |
| Collector Emitter Voltage (VCEO) | 60V |
| Contact Plating | Tin |
| Current Rating | -1A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Emitter Base Voltage (VEBO) | 5V |
| Frequency | 150MHz |
| Gain Bandwidth Product | 125MHz |
| Height | 1.65mm |
| hFE Min | 25 |
| Introduction Date | 1993-01-01 |
| Length | 6.7mm |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 60V |
| Max Collector Current | 1A |
| Max Frequency | 150MHz |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 2W |
| Min Operating Temperature | -65°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Pins | 4 |
| Number of Terminals | 4 |
| Packaging | Cut Tape |
| Polarity | PNP |
| Power Dissipation | 2W |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8541290080 |
| Transition Frequency | 125MHz |
| Voltage Rating (DC) | -60V |
| Weight | 7.994566mg |
| Width | 3.7mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

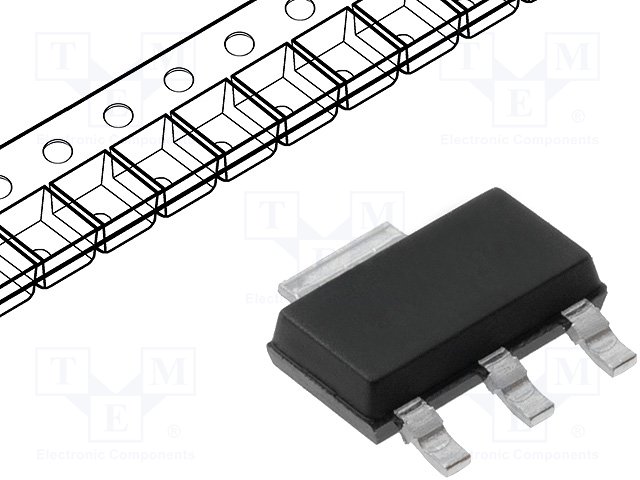

Images
TME
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | Obsolete | ||
| Nexperia | Production | ||
| onsemi | Production | ||
| Panasonic | Obsolete | ||
| Central Semiconductor | Obsolete | ||
| onsemi | Obsolete | ||
| Diodes Inc. | Obsolete | ||
| Diodes Inc. | Production | ||
| STMicroelectronics | Obsolete | ||
| Diodes Inc. | Production |
