BZT52C33S-7-F - Diodes Inc.
BZT52C33S Series 200 mW 33 V 10 mA Surface Mount Zener Diode - SOD-323
Technical Details
| China RoHS | Compliant |
| Contact Plating | Tin |
| Country of Origin | Mainland China |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| ESD Protection | No |
| Forward Voltage | 900mV |
| Height | 1mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Impedance | 80Ω |
| Introduction Date | 2002-09-04 |
| Lead Free | Lead Free |
| Length | 1.8mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 200mW |
| Max Reverse Leakage Current | 100nA |
| Min Operating Temperature | -65°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Output Current | 50mA |
| Packaging | Cut Tape |
| Peak Reverse Current | 100nA |
| Polarity | Unidirectional |
| Power Dissipation | 200mW |
| Power Rating | 200mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reference Voltage | 33V |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Test Current | 2mA |
| Tolerance | 6% |
| Voltage Rating (DC) | 33V |
| Voltage Tolerance | 6.06% |
| Weight | 4.904468mg |
| Width | 1.4mm |
| Working Voltage | 33V |
| Zener Current | 2mA |
| Zener Voltage | 33V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

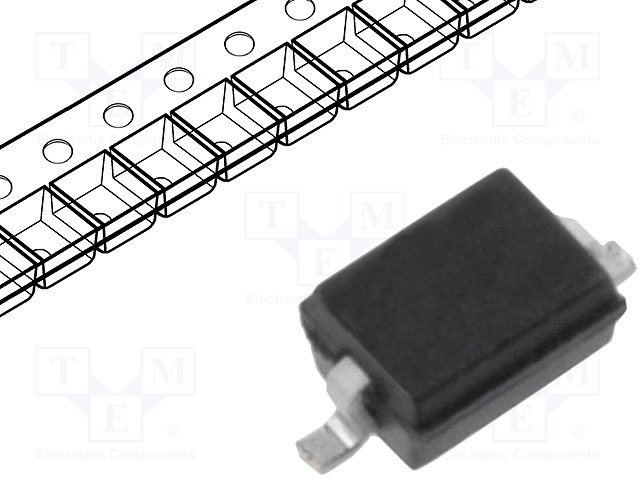

Images
