D1213A-04V-7 - Diodes Inc.
D1213A Series 6 V 0.85 pF Bi-Directional Low Capacitance TVS Diode Array-SOT-563
Technical Details
| Breakdown Voltage | 6V |
| Capacitance | 1.2pF |
| Case/Package | SOT-563 |
| China RoHS | Compliant |
| Clamping Voltage | 10V |
| Contact Plating | Tin |
| Country of Origin | Mainland China |
| Depth | 1.2mm |
| Direction | Unidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Forward Voltage | 950mV |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2012-11-14 |
| Lead Free | Lead Free |
| Leakage Current | 1µA |
| Length | 1.6mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 380mW |
| Max Surge Current | 5A |
| Min Breakdown Voltage | 6V |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 4 |
| Number of Channels | 4 |
| Number of Elements | 1 |
| Number of Pins | 6 |
| Number of Terminals | 6 |
| Peak Pulse Current | 1A |
| Peak Reverse Current | 1µA |
| Polarity | Unidirectional |
| Power Line Protection | Yes |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Standoff Voltage | 5V |
| RoHS | Compliant |
| Schedule B | 8536300000, 8536300000|8536300000|8536300000|8536300000|8536300000 |
| Termination | SMD/SMT |
| Working Voltage | 3.3V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

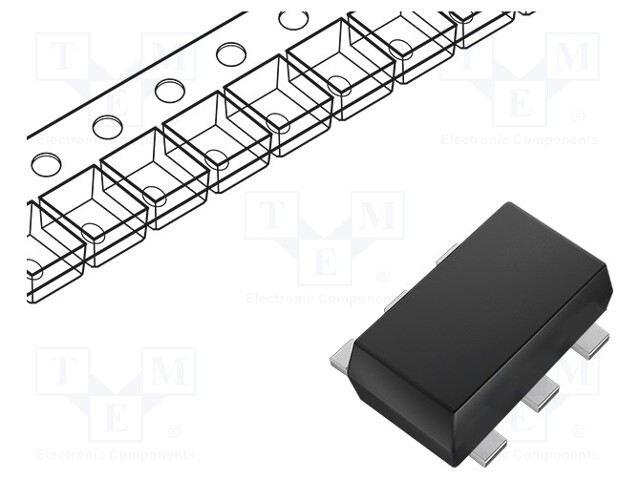

Images
